SIMPLY SOPHISTICATED

With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit internal processing and offer support for external control via footswitches, an expression pedal, or MIDI.

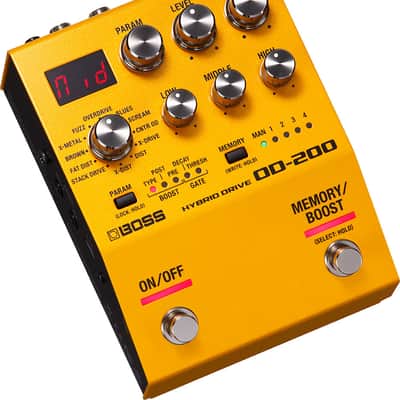

The OD-200 Hybrid Drive brings next-level sound, feel, and flexibility to overdrive and distortion, combining decades of BOSS tone expertise with innovative technologies. Powered by hybrid analog/digital circuitry, this dream pedal delivers any drive tone you can imagine via 12 primary modes, 15 boost types, series/parallel gain paths, and more. There’s even an advanced gate on board, ideal for both eliminating noise and adding tightness to high-gain drive tones.

FEATURES

• Advanced hybrid design with analog and digital circuitry provides a huge range of drive tones from classic to modern
• Twelve primary drive modes plus 15 boost types with independent pre/post gain controls
• Selectable series or parallel boost structures for unlimited gain shaping
• Advanced gate section for eliminating noise and tightening high-gain tones
• Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
• Access 128 user setups from the panel or MIDI program change
• Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button
• Panel Lock function disables controls to prevent unwanted changes
• Customizable multi-function footswitches for bypass, boost, memory selection, and more
• Support for expanded control via external footswitches, an expression pedal, or MIDI
• Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
• Micro USB jack for firmware updates
• Runs on PSA-series AC adaptor or three AA-size batteries

SPECIFICATIONS

• Sampling Frequency: 96 kHz
• AD/DA Conversion: 32 bits
• Processing: 32-bit floating point
• Drive Circuit: Analog + Digital
• Modes: 12 modes
  • Overdrive
  • Blues
  • Scream
  • Cntr OD
  • X-Drive
  • Dist
  • X-Dist
  • Stack Drive
  • Fat Dist
  • Brown
  • X-Metal
  • Fuzz
• Memory: 127 + Manual
• Nominal Input Level: Input: -10 dBu
• Maximum Input Level: Input: +7 dBu
• Input Impedance: Input: 1 M ohm
• Nominal Output Level: Output: -10 dBu
• Maximum Output Level: Output: +7 dBu (Load Impedance: 220 k ohms or greater)
• Output Impedance: Output: 1 k ohms
• Recommended Load Impedance: Output: 10 k ohms or greater
• Bypass: Buffered bypass

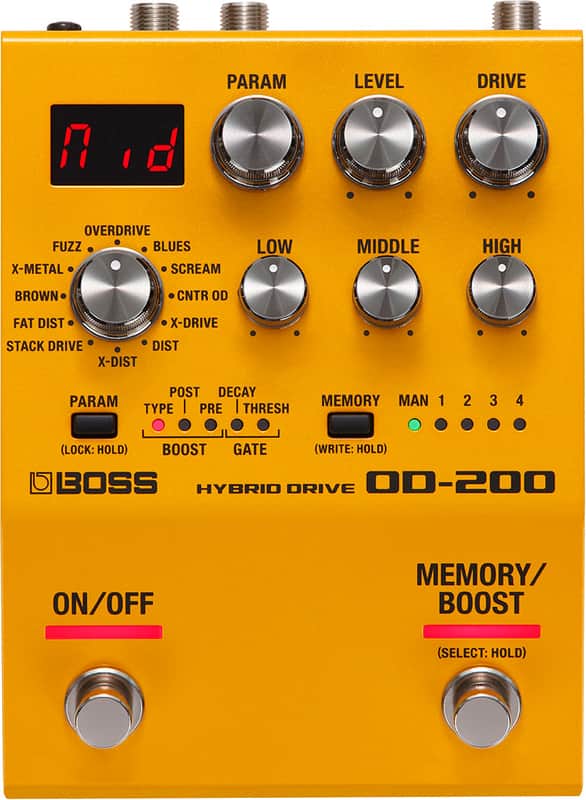

• Controls:
  • On/Off Switch
  • Memory/Boost Switch
  • Mode Knob
  • Drive Knob
  • Level Knob
  • Param Knob
  • Low Knob
  • Middle Knob
  • High Knob
  • Param Button
  • Memory Button
• Display: 7 segments, 3 characters (LED)
• Indicator:
  • Param Indicator
  • Memory (Man, 1--4) Indicators

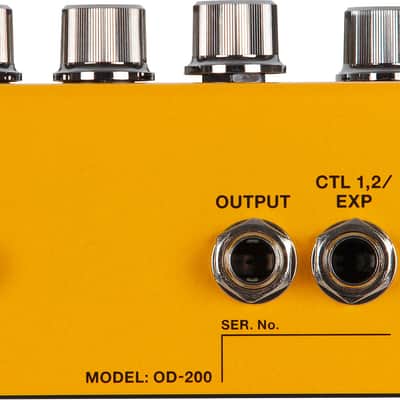

• Connectors:
  • Input Jack
  • Output Jack: 1/4-inch phone type
  • CTL 1, 2/EXP Jack: 1/4-inch TRS phone type
  • MIDI (In, Out) Jacks: Stereo miniature phone type
  • DC In Jack
  • USB Port: USB micro B-type (program update only)
• Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
• Current Draw: 220 mA
• Expected Battery Life Under Continuous Use: Alkaline: Approx. 6 hours
  • These figures will vary depending on the actual conditions of use.
• Accessories:
  • Leaflet "Using The Unit Safely"
  • Leaflet "To Obtain The Owner’s Manual"
  • Alkaline battery (AA, LR6) x 3
  • Rubber foot x 4
• Options (Sold Separately):
  • AC Adaptor: PSA-S series
  • Footswitch: FS-5U
  • Dual Footswitch: FS-6, FS-7
  • Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
  • MIDI/TRS Connecting Cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
• Size And Weight:
  • Width: 101 mm, 4 inches
  • Depth: 138 mm, 5-7/16 inches
  • Height: 63 mm, 2-1/2 inches
  • Height (Including Rubber Foot): 65 mm, 2-9/16 inches
  • Weight: 600 g, 1 lb 6 oz
  • Weight (Including Battery): 670 g, 1 lb 8 oz
