Celestion T5323 12" 300 Watt 8 Ohm Pro Woofer Speaker

Overview

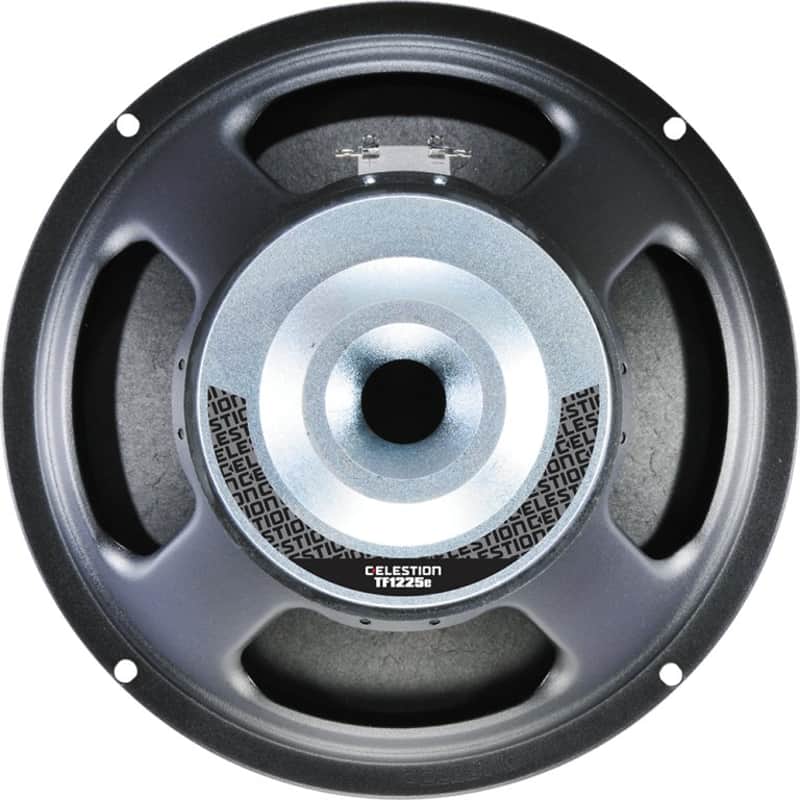

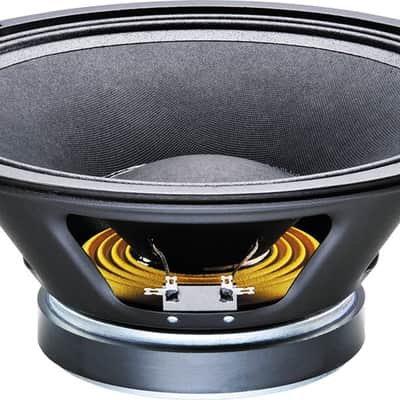

The Celestion TF1225E is a high-performance 12-inch bass/midrange driver designed for professional audio applications. It features a robust construction with a pressed steel chassis and a ferrite magnet, ensuring durability and superior sound quality. This driver is ideal for use in PA systems, bass guitar cabinets, and other high-power audio setups.

Features:

• 12-inch mid/bass driver with extended low frequency response
• Edgewound copper voice coil for improved efficiency and power handling
• Kevlar-loaded paper cone with sealed cloth surround for reduced distortion
• Durable pressed steel chassis
• Suitable for use in 2-way and compact 3-way systems

Specifications:

• Nominal Diameter: 12 inches (305 mm)
• Power Rating: 300W RMS (AES standard), 600W continuous
• Sensitivity: 96 dB
• Frequency Range: 50 Hz - 3000 Hz
• Nominal Impedance: 8 ohms
• Voice Coil Diameter: 2.5 inches (64 mm)
• Magnet Type: Ferrite
• Magnet Weight: 50 oz (1.4 kg)
• Chassis Type: Pressed steel
• Cone Material: Kevlar-loaded paper
• Surround Material: Cloth-sealed
• Suspension: Single
• Overall Diameter: 12.17 inches (309 mm)
• Cut-out Diameter: 11.14 inches (283 mm)
• Mounting Hole Diameter: 0.31 inches (7.9 mm)
• Mounting Hole PCD: 11.69 inches (297 mm)
• Overall Depth: 5.5 inches (139 mm)
• Weight: 9.7 lbs (4.4 kg)

Performance Parameters:

• Resonant Frequency (Fs): 52.6 Hz
• Mechanical Q (Qms): 3.513
• Electrical Q (Qes): 0.368
• Total Q (Qts): 0.333
• Equivalent Volume (Vas): 67.71 liters (2.39 cubic feet)
• BL Factor: 17.66 Tm
• Compliance (Cms): 0.17 mm/N
• Mechanical Resistance (Rms): 5.08 kg/s
• Voice Coil Inductance (Le) at 1kHz: 1.32 mH
• Maximum Linear Excursion (Xmax): 5.25 mm (0.21 inches)
