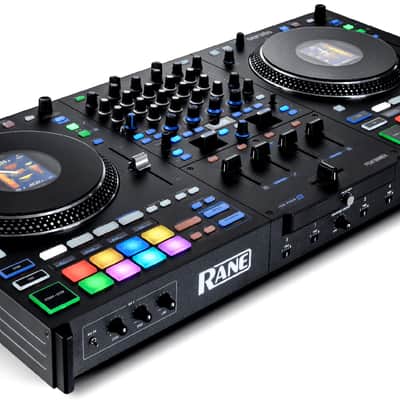

Rane Performer Professional 4-channel Motorized DJ Controller

The RANE PERFORMER is the only 4-channel motorized DJ controller built to RANE’s rigorous standards. The PERFORMER earns the namesake from the talented professional artists that put this controller to work, making good use of the PRECISION FEEL FADERS, MAG FOUR crossfader, and industry-leading sound quality.

Familiar Feel

• The PERFORMER boasts 7” high torque die-cast aluminum platters with acrylic discs that respond just like vinyl.

PRECISION FEEL FADERS

• Adjustable volume faders utilize the same dual rail mechanical system of the MAG FOUR, making them smooth, light, and extremely rugged.

Advanced STEMS Control

• Four unique options for controlling stems, the PERFORMER sets the standard for creative open format DJing.

Advanced STEMS Control

• Advanced Stems control features including STEM-SPLIT, STEM LEVEL, STEM Pad Mode, and instant Acapella/Instrumental buttons

DYNAMIC FX ENGINE

• Dynamic internal FX engine with 29 MAIN FX, 4 knob-controlled CHANNEL FX, and access to Serato DJ software FX

WHEEL DISPLAY

• 3.5" wheel displays with multiple waveform and library views plus Day Mode

MAG FOUR CROSSFADER

• MAG FOUR crossfader with external tension adjustment knob

PERFORMANCE PADS

• 16 Performance Pads with dedicated OLED Pad Mode displays for visual feedback

Tech SpecsDigital AudioConverters

• Cirrus Logic, 24-bit PCM, 48 kHz

Digital Signal Processing

• 32-bit, Floating Point, Double precision

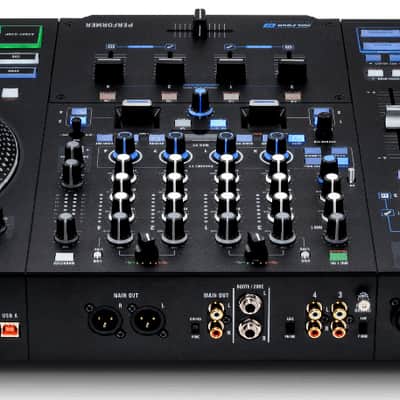

Connections

• (2) XLR outputs (Main)
• (2) 1/4” outputs (Booth)
• (1) RCA stereo output pair (Main)
• (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
• (2) RCA stereo input pairs (Deck 3-4)
• (1) 1/4” (6.35 mm) TRS output (Headphones)
• (1) 1/8” (3.5 mm) TRS output (Headphones)
• (2) USB Type-B ports
• (1) IEC power cable input

Audio OutputsMain Outputs
(XLR)

• Gain Trim
• Maximum Output
• THD+N (20 kHz BW @ 1 kHz)
• Frequency Response

• Off to 0 dB
• 8 Vrms
• 0.004%
• Flat - 20-20kHz

Main Outputs
(RCA stereo pair)

• Maximum Output
• THD+N (20 kHz BW @ 1 kHz)
• Frequency Response

• 4 Vrms
• 0.004%
• Flat - 20-20kHz

Booth Outputs
(1/4”)

• Gain Trim
• Maximum Output
• THD+N (20 kHz BW @ 1 kHz)
• Frequency Response

• Off to 0 dB
• 8 Vrms
• 0.004%
• Flat - 20-20kHz

Headphone Outputs
(1/4”/6.35 mm and 1/8”/3.5 mm TRS)

• Maximum Output
• Output Power
• Dynamic Range (A-weighted)

• 4 Vrms Voltage: (no load)
• 50 mW (50 ohms)
• 108 dB

Audio InputsMicrophone 1/2
(Combo XLR/1/4” [6.35 mm] TRS)

• Analog Gain
• Maximum Input
• Gain Trim
• Tone Control

• 25 dB
• 110 mV
• Off to +26 dB (unity at center)
• 2-band

Line/Phono Inputs 3/4
(RCA stereo pairs, switchable)Line

• Maximum Input
• Gain Trim
• Tone Control
• THD+N (20 kHz BW @ 1 kHz

• 4 Vrms
• Off to +12 dB
• 3-band, full-cut to +10 dB
• 0.004%

Phono (RIAA)

• RIAA Curve
• Gain (@ 1 kHz)
• Maximum Input (@ 1 kHz)
• Dynamic Range (A-weighted)

• +/-0.25 dB
• 31.5 dB
• 106 mV
• 102 dB

Pads

• (16) on/off multi-color back-lit pads (8 per deck, 9 modes each

Wheel Displays

• (2) 3.5” Color LCDs

Pad & FX Displays

• (9) 128 x 32 Monochrome OLEDs

Faders

• (1) MAG FOUR tension-adjustable crossfader with contour
• (4) Precision Feel Faders (channel faders)

Power

• Connection: IEC
• Voltage: 100–240 V, 50/60 Hz
• Consumption: 150 W

GeneralDimensions
(width x depth x height)

• 30.84” x 15.84 x 4.32”
• 78.33 x 40.23 x 10.97 cm

Weight

• 28.20 lbs.
• 12.79 kg

Specifications are subject to change without notice.
