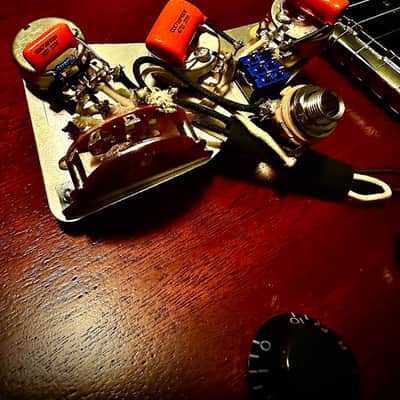

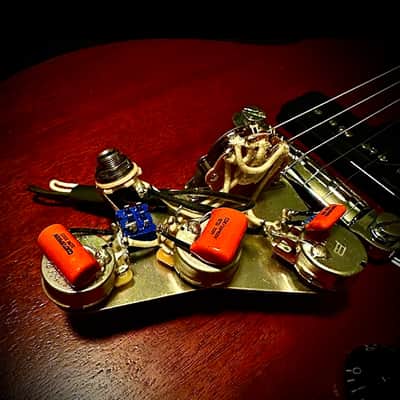

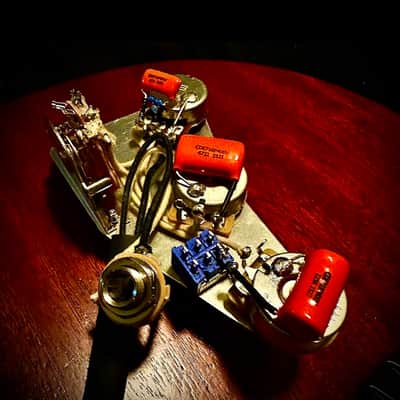

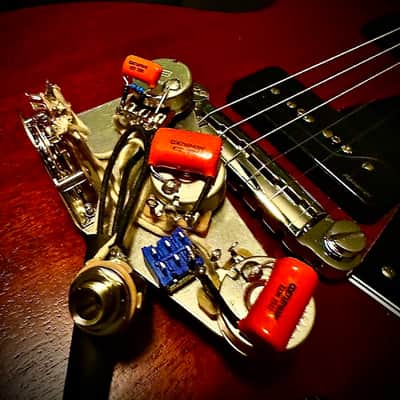

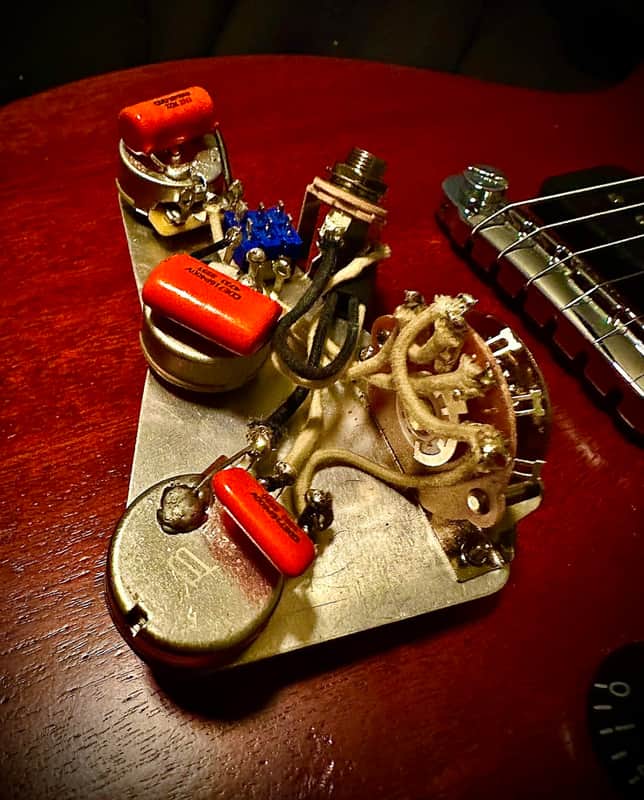

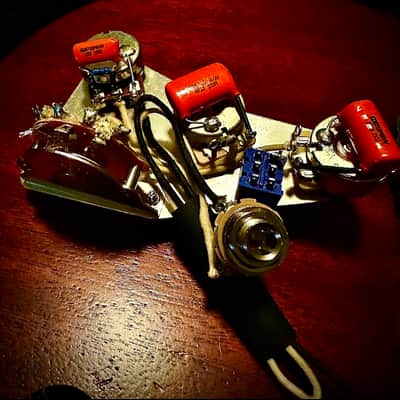

Deluxe HSS USA Wiring Harness Split-Tone Mod AND Coil-Split (with mini toggle, if desired) for Fender Strat by Pro Tones

Pro Tones USA Built Strat Split Tone Mod Wiring Harness for H/S/S Strats Will fit USA and import strats with standard Fender control spacing

Features include:

• Bourns, knurled brass shaft pots.
• .022uF and .047uF Orange Drop

Capacitors

• (Optional) mini DPDT toggle switch for Coil Splitting the Humbucker in the Bridge, pre-wired and ground plate pre-drilled. *** You must indicate in a message if you want that option, or not. If you don't, it will be omitted from your wiring harness. I won't guess or assume on your behalf.
• Treble Bleed Circuit - made in partnership with, and by, reverb's very own Treble Bleed King! None other like his treble bleeds in the world! I promise that! Check out his page and youll see for yourself.

5-Way Switch

• Premium Gavitt 22 Gauge AWG

Vintage Style Cloth Wire

• Strat Vintage Style

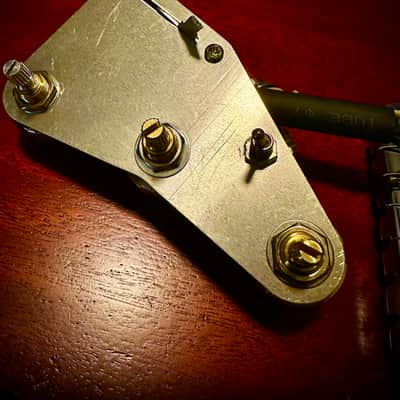

*** Grounding Plate will not be provided - for photo purposes only

- harness will be hard-wired and securely fasted and grounded with 18 AWG bus wire.

• Wired for one tone for Bridge Pickup (.022uF) and the other for Middle/Neck (.047uF) Tone Controls
• GLS / Switchcraft 1/4" Mono Wired Jack

Pickup Configuration:

Position 1 - Bridge pickup only

Position 2 - Bridge and middle pickup

1. Position 3 - Middle pickup alone
3. Position 4 - Middle and neck pickup
5. Position 5 - Neck Pickup alone

Wiring diagram included in listing pics.

This assembly utilizes a 500k pot for volume and bridge position tone controls, and a 250k pot for the neck and middle pickups to give the proper loading for the pots.

This assembly does not split the humbucker UNLESS, as the bold print above suggests, you let me know the same day you make the purchase.

This assembly will also be a good choice for a rail humbucker or hot single coil in the bridge position.

***Everything we sell comes with instructions

***Please allow up to 5 - 7 business days (Monday - Fridays are business days) for your item to be made and shipped out to you from the date of your order and payment is made.

There are no refunds or returns. Everything is live tested with real guitars and tube amps to ensure 100% functionality and satisfaction before its wrapped, boxed, and shipped to your front door (or it doesn’t leave the shop unless it does).
