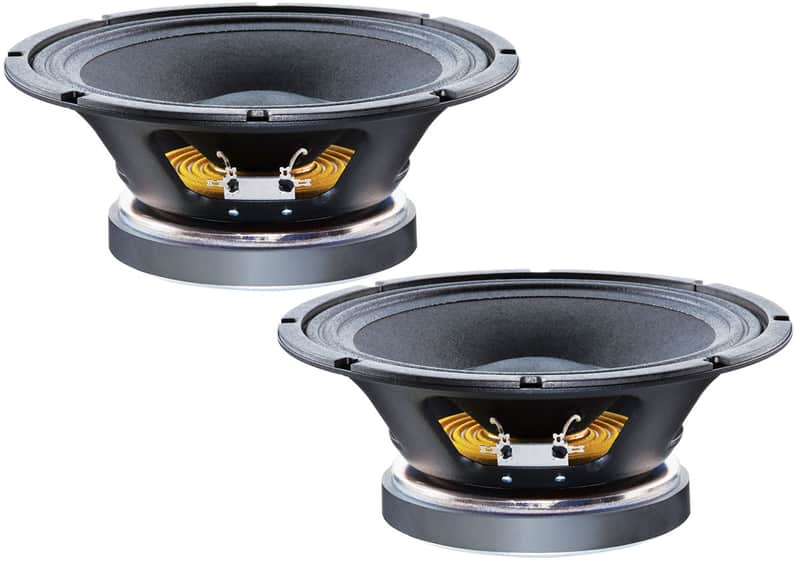

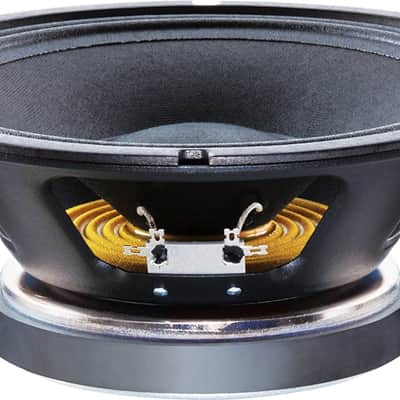

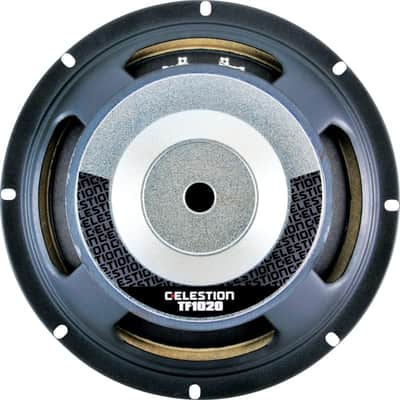

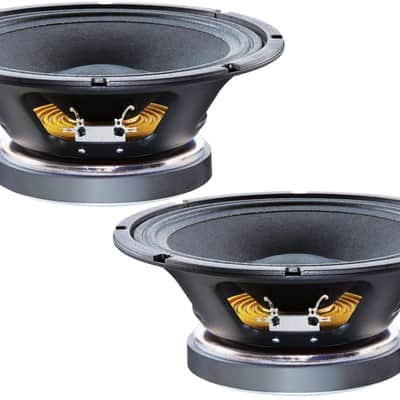

Celestion TF1020

Description

• 10" bass and mid-range driver provides 97dB sensitivity and 150Wrms (AES standard) power handling

•  2" High temperature copper voice coil wound on polyimide for increased reliability

•  Ideally suited to compact enclosures and high pass systems

•  Rigid chasis design for maximum energy transfer

•  Kevlar-loaded cone with sealed surround and damping for reduced distortion

•  8-Ohm Frequency Response

Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air. Measured on axis at 1W, 1m in 2? anechoic environment. Xmax derived from: (voice coil winding width-gap depth)/2.

General

•  Nominal diameter: 254mm/10in

•  Power rating: 150Wrms

•  Nominal impedance: 8 Ohms

•  Sensitivity: 97dB

•  Frequency range: 60-3000Hz

•  Voice coil diameter: 50mm/2in

•  Chassis type: Pressed steel

•  Magnet type: Ferrite

•  Magnet weight: 1.2kg/42oz

•  Coil material: Round copper

•  Former material: Polymide

•  Cone material: Kevlar loaded paper

•  Surround material: Cloth-sealed

•  Suspension: Single

•  Xmax: 2mm/0.08in

•  Gap depth: 8mm/0.31in

•  Voice coil winding width: 12mm/0.47in

Mounting Information:

•  Overall diameter: 256mm/10.08in

•  Overall depth: 110mm/4.33in

•  Cut-out diameter: 229mm/9.02in

•  Mounting slot dimensions: 8mm x 6mm/0.31in x 0.24in

•  Number of mounting slots: 4

•  Mounting PCD range: 245mm/9.65in

•  Unit weight: 3.7kg/8.2lb

Packed Dimensions & Weight

• Single pack size W x D x H: 11.0 x 11.0 x 4.7 in. (280mm x 280mm x 120mm)

• Single pack weight: 4kg/8.8lb
