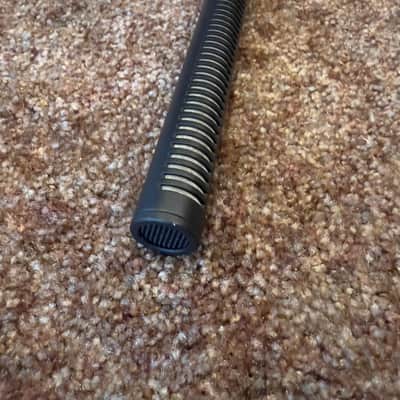

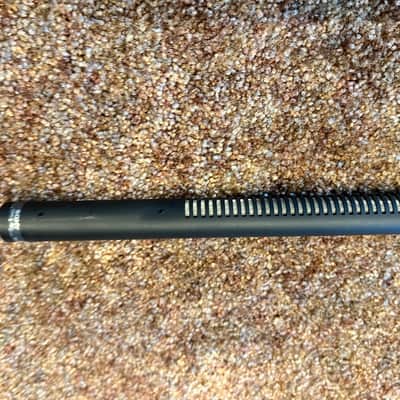

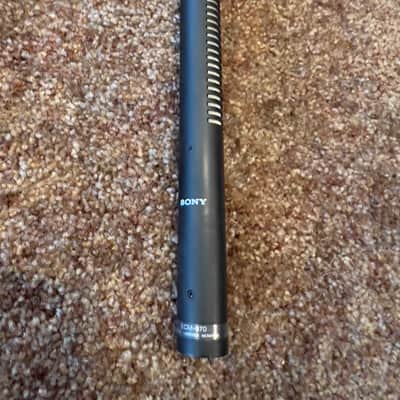

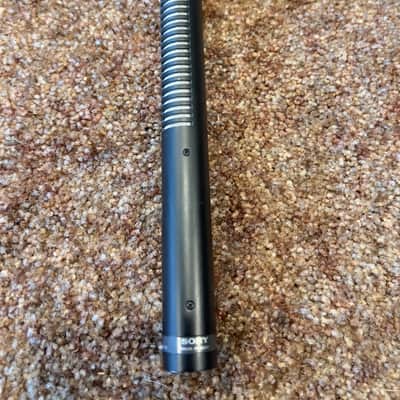

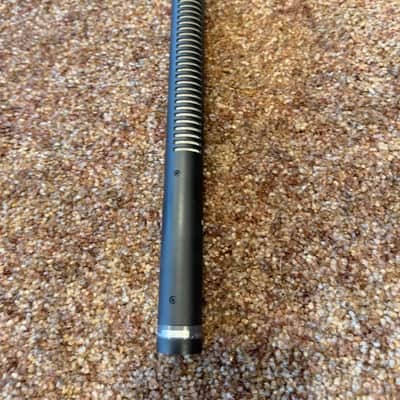

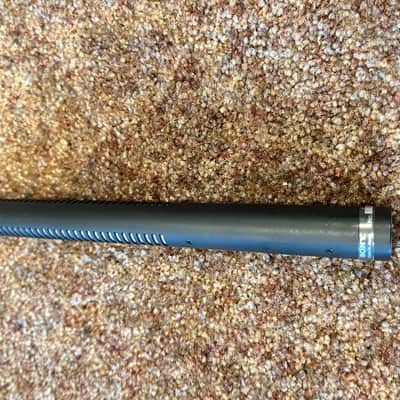

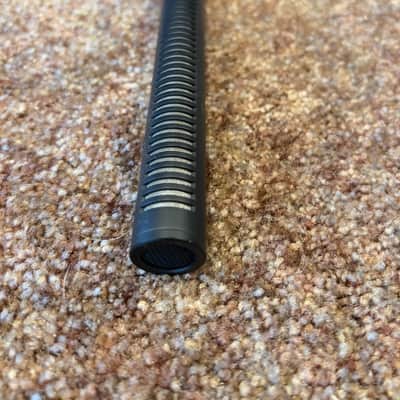

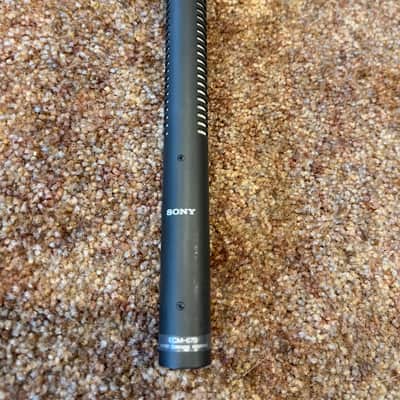

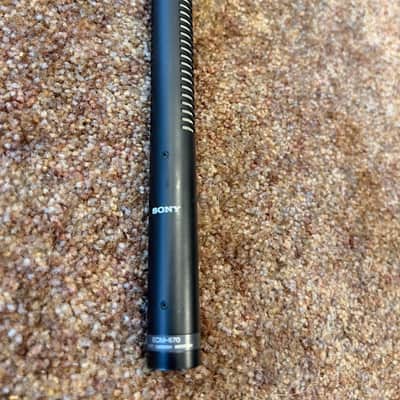

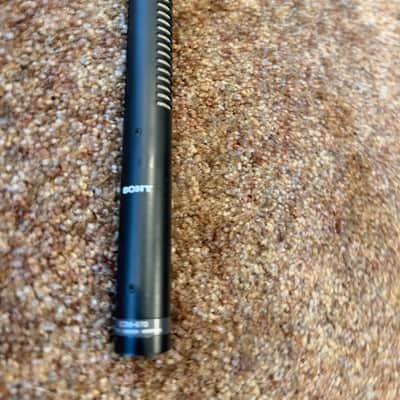

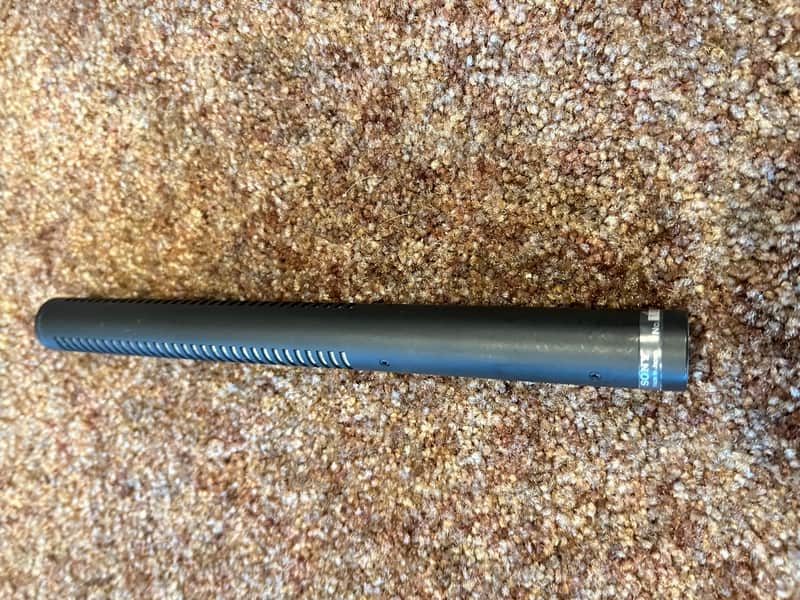

Sony ECM 670 2015 - Black

The Sony ECM 670 is a high-performance condenser microphone designed for professional audio recording and broadcast applications. Known for its pristine sound quality, exceptional sensitivity, and versatility, the ECM 670 is a trusted choice among sound engineers and broadcasters worldwide.

Serial Number: 15274

General Specifications:

• Type: Electret condenser microphone
• Polar Pattern: Super-cardioid
• Frequency Response: 30 Hz to 20 kHz
• Sensitivity: -35 dB (17.8 mV) re 1V/Pa
• Impedance: 150 ohms balanced
• Signal-to-Noise Ratio: 80 dB or more
• Dynamic Range: 113 dB or more
• Maximum Input Sound Pressure Level: 127 dB SPL
• Connector: 3-pin XLR

Features:

• Directivity: Super-cardioid polar pattern for focused sound capture and excellent off-axis noise rejection
• Construction: Durable metal housing with integrated shock mount for reduced handling noise
• Low-Cut Filter: Switchable low-frequency roll-off (12 dB/octave at 300 Hz) for minimizing proximity effect and handling noise
• Power Requirements: Phantom power 48V ±4V

Physical Specifications:

• Dimensions: 210 mm (length) x 22 mm (diameter)
• Weight: 130 grams (4.6 oz)

Environmental Specifications:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to +60°C (-4°F to 140°F)
• Relative Humidity: 0% to 85%, non-condensing

Applications:

• Recommended Use: Ideal for studio recording, broadcast, film production, and field recording
• Compatibility: Compatible with standard microphone stands and boom arms

The Sony ECM 670 microphone delivers exceptional audio clarity and sensitivity, making it suitable for capturing vocals, instruments, and ambient sound with precision and fidelity. Its robust construction and advanced features ensure reliable performance in diverse recording environments, making it a valuable asset for professional audio production.
