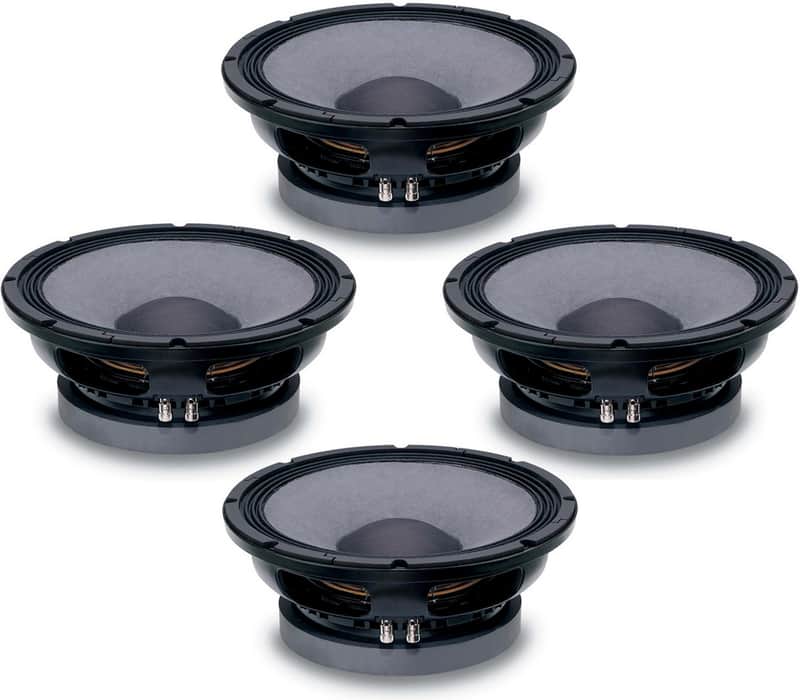

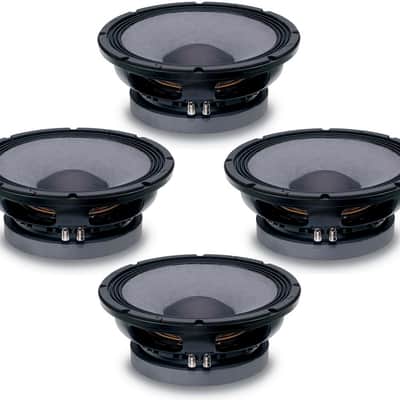

4x 18 Sound 12LW1400 12" Subwoofer 1400W, 4" Voice Coil, Weather Protected Cone

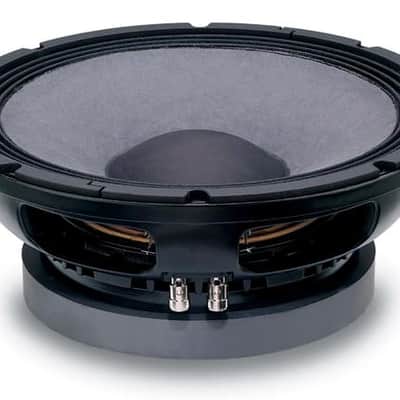

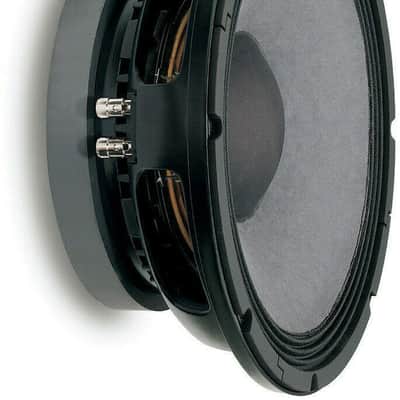

18 Sound 12LW1400 12" Subwoofer 1400W w/ 4" Voice Coil

• The 12LW1400 is an extended low frequency loudspeaker which sets a new industry standard in 12" (300 mm) 4" voice coil high performance transducers, already accomplished by the 15LW1400 and 18LW1400 respectively. The transducer has been designed for subwoofer or low frequency component usage in multi-way systems where considerable amounts of power and low distortion are needed. 12LW1400 is ideally suited for very high loading cabinets, such as bandpass, horn loaded or compact reflex configurations. In its reflex configuration, 12LW1400 can be used in extremely compact enclosures (30 - 60 lt), making it the ideal choice for touring applications, sound reinforcement or fixed installations, including indoor and outdoor concert reinforcement systems.

• Maximum strength, smooth response and high displacement piston motion are obtained using Double Silicon Spider technology (DSS) and a large excursion surround. A special formulation cone material has been used to enable it to withstand high loading and high power peaks. The suspension system has been designed to give symmetric large signal behavior across the whole working range, providing low harmonic distortion at different excitation levels. An inside outside aluminum voice coil, based on Interleaved Sandwich Voice coil (ISV) provides high levels of thermal stability and durability.

• The ISV technology is based on a high strength fiberglas former with half the coil wound on the outside and half on the inside ensuring uniform thermal dissipation on both sides. It is bonded together using unique high temperature resin adhesive to achieve a balanced and solid linear motor unit. Double Demodulation Rings (DDR) technology dramatically reduces the intermodulation and harmonic distortion whilst improving the transient response.

• The top plate and back plate design have been optimized for cone excursion and maximum symmetric force factor by the use of in-house FEA Magnetic simulation software. Furthermore, excellent heat dissipation has been achieved by the special basket design which incorporates air channels between the basket and magnetic top plate. The 12LW1400 exclusive cone treatment improves pulp strength and gives water repellent properties to both sides of the cone. In addition, the special coating of both the top and back plates makes them far more resistant to the corrosive effects of salts and oxidization than standard zinc-coated treatment.

Specifications

Resonant frequency

• fS

• 45

• Hz

Electrical Q

• QES

• 0.32

 Mechanical Q

• QMS

• 5.00

 Total Q factor

• QTS

• 0.30

 Suspension equivalent air volume

• VAS

• 55

• litres

DC resistance

• RE

• 5.2

• Ω

Minimum impedance

• Zmin

• 6.8

• Ω

Voice coil inductance

• LE

• 1.5

• mH

Force factor

• B·l

• 20

• T·m

Suspension mechanical resistance

• RMS

• 5

• N·s/m

Suspension mechanical compliance

• CMS

• 138

• µm/N

Moving mass

• MMD

• 79.3

• g

Moving mass (including airload)

• MMS

• 88

• g

Surface of the diaphragm

• SD

• 530

• cm²

Effective diaphragm diameter

• Ø

• 26

• cm

Maximum linear excursion

• Xmax

• ± 8.25

• mm

Excursion limit

• Xlim

• ± 18

• mm

Displacement volume at Xmax

• VD

• 437.3

• cm³

Efficiency

• η₀

• 1.5

• %

Efficiency bandwidth product

• EBP

• 140

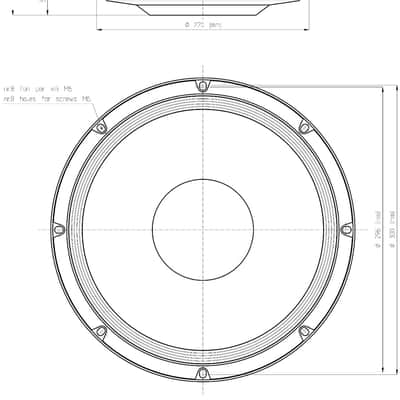

Overall diameter

• 315

• mm

Baffle hole diameter

• 282

• mm

Overall depth

• 141

• mm

Flange thickness

• 17.5

• mm

Net weight

• 10.9

• kg

Diaphragm material

• Straight, Paper

Surround material

• Triple roll, Polycotton

Voice coil diameter

• 100

• mm

Coil material

• Aluminum

Magnet

• Ferrite
