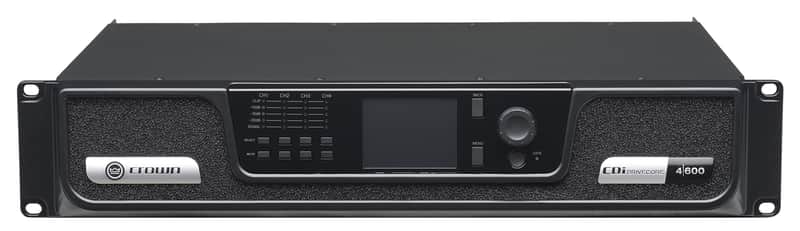

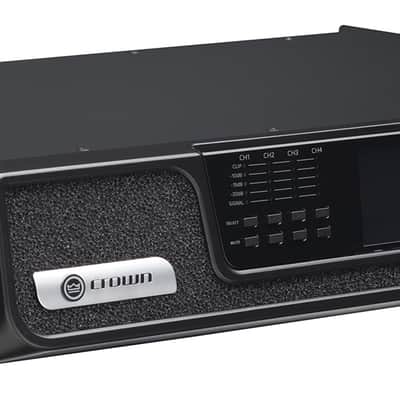

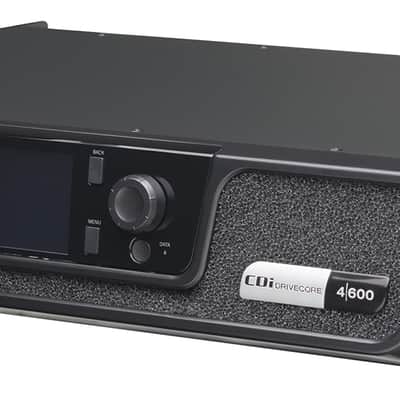

Crown CDI4600 CDI4-600 CDI 4x600 70v Power Amplifier 4 Channel+Network Control

Description:

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost.  Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|600 offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more.  Designed for ease-of-use in a variety of applications, the 4|600 is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

Feature Comparison:

CDi DriveCore Model:

• 2|300: 2 Channels

• 2|300BL: 2 Channels

• 4|300: 4 Channels

• 4|300BL: 4 Channels

• 2|600: 2 Channels

• 2|600BL: 2 Channels

• 4|600: 4 Channels

• 4|600BL: 4 Channels

• 2|1200: 2 Channels

• 2|1200BL: 2 Channels

• 4|1200: 4 Channels

• 4|1200BL: 4 Channels


Output Power: Dual Mode - All Channels Driven

CDi DriveCore Model:

2|300 / 2|300BL: 2 Channels

• 2Ω: 150W

• 4Ω: 300W

• 8Ω: 300W

• 16Ω: 150W

• 70Vrms: 300W

• 100Vrms: 300W


4|300 / 4|300BL: 4 Channels

• 2Ω: 150W

• 4Ω: 300W

• 8Ω: 300W

• 16Ω: 150W

• 70Vrms: 300W

• 100Vrms: 300W


2|600 / 2|600BL: 2 Channels

• 2Ω: 300W

• 4Ω: 600W

• 8Ω: 600W

• 16Ω: 300W

• 70Vrms: 600W

• 100Vrms: 600W


4|600 / 4|600BL: 4 Channels

• 2Ω: 300W

• 4Ω: 600W

• 8Ω: 600W

• 16Ω: 300W

• 70Vrms: 600W

• 100Vrms: 600W


2|1200 / 2|1200BL: 2 Channels

• 2Ω: 850W

• 4Ω: 1200W

• 8Ω: 1200W

• 16Ω: 600W

• 70Vrms: 1200W

• 100Vrms: 1200W


4|1200 / 4|1200BL: 4 Channels

• 2Ω: 850W

• 4Ω: 1200W

• 8Ω: 1200W

• 16Ω: 600W

• 70Vrms: 1200W

• 100Vrms: 1200W


Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)

Output Power: Bridge Mono Mode - All Channels Driven

CDi DriveCore Model:

2|300 / 2|300BL

• 4Ω: 300W

• 8Ω: 600W

• 16Ω: 600W

• 140Vrms: 600W

• 200Vrms: 600W


4|300 / 4|300BL

• 4Ω: 300W

• 8Ω: 600W

• 16Ω: 600W

• 140Vrms: 600W

• 200Vrms: 600W


2|600 / 2|600BL

• 4Ω: 600W

• 8Ω: 1200W

• 16Ω: 1200W

• 140Vrms: 1200W

• 200Vrms: 1200W


4|600 / 4|600BL

• 4Ω: 600W

• 8Ω: 1200W

• 16Ω: 1200W

• 140Vrms: 1200W

• 200Vrms: 1200W


2|1200 / 2|1200BL

• 4Ω: 1200W

• 8Ω: 2400W

• 16Ω: 2400W

• 140Vrms: 2400W

• 200Vrms: 2400W


4|1200 / 4|1200BL

• 4Ω: 1200W

• 8Ω: 2400W

• 16Ω: 2400W

• 140Vrms: 2400W

• 200Vrms: 2400W


Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)

Specifications:

• BLU link: No

• Channels: 4

• Sensitivity (for full rated power at 8 ohms): 0.7V RMS

• Rated Power Output (per channel @ 4 ohms): 600W

• Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms): > 104dB

• THD (full rated power, 20 Hz - 20 kHz): 0.35%

• Damping Factor (20 Hz to 100 Hz): > 1000

• Frequency Response (8Ω, 20 Hz - 20 kHz): +/-0.25dB

• Crosstalk (below rated power) 20 Hz to 1 kHz: > 80dB

• Input Impedance (nominally balanced, nominally unbalanced): 20 kΩ balanced, 10 kΩ unblanced

• Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion): 19 x 3.5 x 12.25

• Weight: 16.3 lbs. (7.39 kg)

• Power Supply Connector: 15A IEC connector, 100 – 240V
