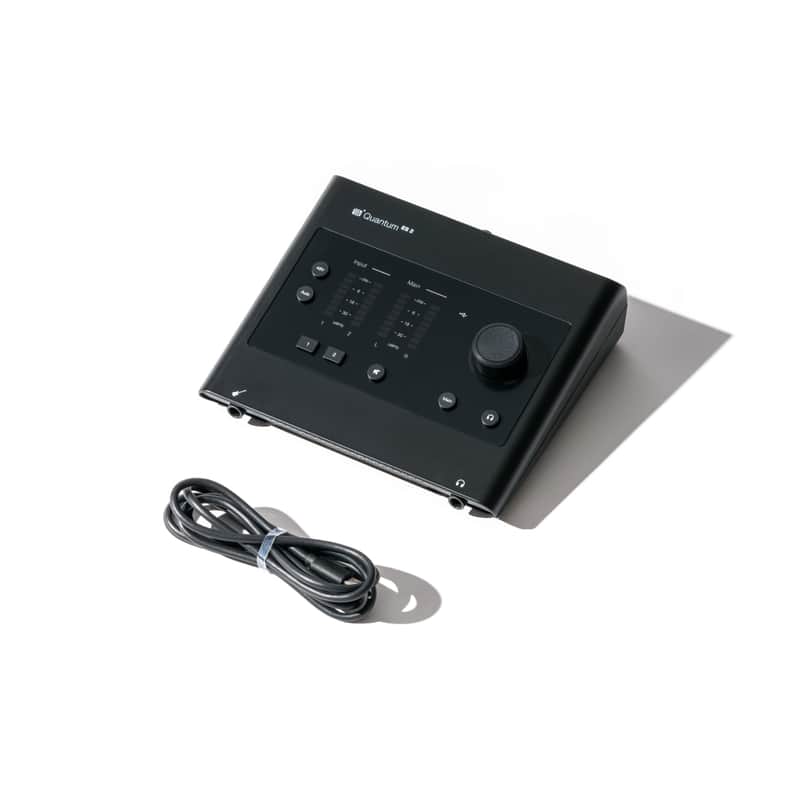

PreSonus Quantum ES 2

2 X 2, 24-Bit / 192 KHz Recording Interface With 6-Month Studio One+ Membership Included

Capture your creativity with the Quantum ES 2. The next generation of PreSonus audio interfaces, the Quantum ES 2 is the culmination of nearly 30 years of PreSonus expertise, delivering pristine preamps and class-leading converters for self-made audio creators.

Features

• High Performance Signal Flow – Custom low-latency drivers and low-noise converters.
• All-New MAX-HD Mic Preamps – The culmination of 30 years of innovation, our rigorously redesigned preamps feature digitally-controlled analog with +75 dB of gain range.
• Co-Developed with Fender® – Front-facing instrument input engineered for guitarists by industry-leading experts.
• Professional Recording Software Included – 6 months of Studio One+ with full access to Studio One, add-ons, and more.
• Auto Gain – Dial in recording-ready levels, hassle-free.
• Universal Control App – Full control and metering from your mobile device, desktop, or tablet.

Controls And Connections

• Headphone JackOne - 1/4" TRS Female Stereo
• ConnectivityUSB-C®
• MIDI I/O3.5 mm Type-B

Microphone Preamp

• Microphone Input Connection TypeXLR Female (Combo), Balanced
• Total Harmonic Distortion0.001% (1 kHz, Minimum Gain)
• Gain Control Range75 dB
• Microphone Preamp Maximum Input Level+14 dBu (Balanced, Minimum Gain)
• Phantom Power+48 VDC
• Frequency Response20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
• Microphone Preamp Input Impedance1600 Ohms
• Dynamic Range113 dB (A-Weighted, Minimum Gain)
• Equivalent Input Noise-129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted)

Instrument Inputs

• Instrument Inputs Impedance1M Ohms
• Instrument Inputs Maximum Level+15 dBu (Unbalanced, Minimum Gain)
• Gain Range75 dB
• Frequency Response20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
• Dynamic Range111 dB (A-Weighted, Minimum Gain)
• Total Harmonic Distortion0.002% (1 kHz, Minimum Gain)

Line Inputs

• Line Inputs Maximum Level+15 dBu (Balanced, Minimum Gain)
• Line Inputs Gain Range+/- 10 dB
• Line Inputs Frequency Response20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
• Line Inputs Dynamic Range114 dB (A-Weighted, Minimum Gain)
• Line Inputs Total Harmonic Distortion0.001% (1 kHz, Minimum Gain)
• Line Inputs Impedance10K Ohms

Main And Line Outputs

• Main And Line Outputs Maximum Level+15 dBu (Balanced)
• Main And Line Outputs Frequency Response20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
• Main And Line Outputs Total Harmonic Distortion0.001% (1 kHz, +4 dBu)
• Main And Line Outputs Dynamic Range117 dB (A-Weighted)
• Main And Line Outputs Output Impedance51 Ohms

Headphone Outputs

• Headphone Outputs Maximum Output7.5 dBu (50 Ohms)
• Frequency Response20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
• Dynamic Range111 dB (A-Weighted)
• Total Harmonic Distortion0.02% (1 kHz)
• Headphone Outputs Impedance Working Range22 Ohms

Digital Audio

• Digital Audio Dynamic Range120 dB
• Digital Audio Bit Depth24-bit
• Supported Sample Rates44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Weights And Dimensions

• Height1.9" (48.3 mm)
• Depth6.2" (158 mm)
• Width6.9" (175 mm)
• Weight1.5 lb. (0.68 kg)

Accessories

• Included Accessories1.5M USB-C to USB-C cable
