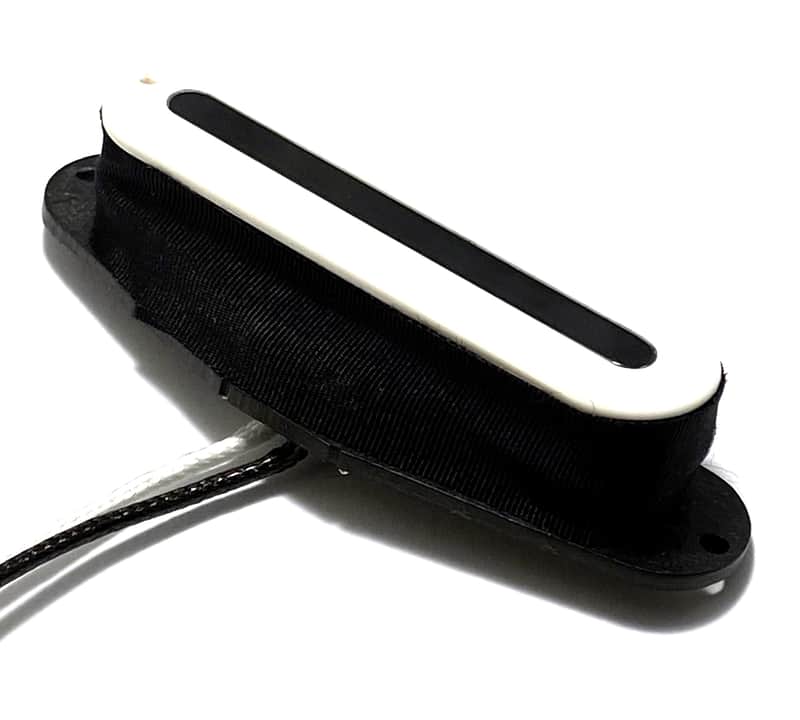

Dragonfire Phat Rail Single, Passive & Ceramic, Responsive Wide Strat Rail Pickup ~ White + Black Rail

Dragonfire Phat Rail Single Individual Pickup, Passive Strat Single Coil Rail Pickup ~ 1 Quantity Pickup ~ White with Black Rail Style

Dragonfire Phat Rail passive Strat pickups are great for a variety of playing styles and genres, helping you power up-string definition, avoid drop-outs, and deliver clean modern tone. These single coil pickups feature a wide and flush rail style to give you strong performance for even the most aggressive playing styles. Bringing presence to your performance, Phat Rails open up playing options for full coverage, authentic sound and great mid-range.

These pickups come in other color styles including black, cream and white with black or chrome rails ~ check out our Reverb Store for other colors and set or individual pickup as well as RWRP options. Contact us if you have any questions.

~~Product Highlights~~

*Dragonfire 6 String Passive Strat Single Coil Pickup

*Ceramic Bar Magnet Type for Modern Power Response

*2 Conductor Wiring (2 Wire Pickup Design)

*Wax Potted for Squeal Reduction, Avoidance or Elimination

*Upgraded Fiber Baseplate

*Pickup Mounting Screws & Springs Included

*250K or 500K Pots & 0.047 Tone Caps Recommended (available separately)

~~Approximate Measurements~~

*Pickup Output: Wound to ~7.9K

*56mm Rail Length

*Pickup Length: 70mm (81mm including mounting flanges)

*Pickup Width: 20mm

*Pickup Depth: 17mm

*Mounting Screw Spacing: 76mm

~~Installation Information~~

These 2-wire pickups come with a colored hot and a black ground wire for easy installation (colors may vary from sample images provided). Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use basic information and general knowledge to successfully complete installation with your choice of diagram or instructions.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

~~Purchase Notes~~

Please ask any questions prior to purchase. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.
