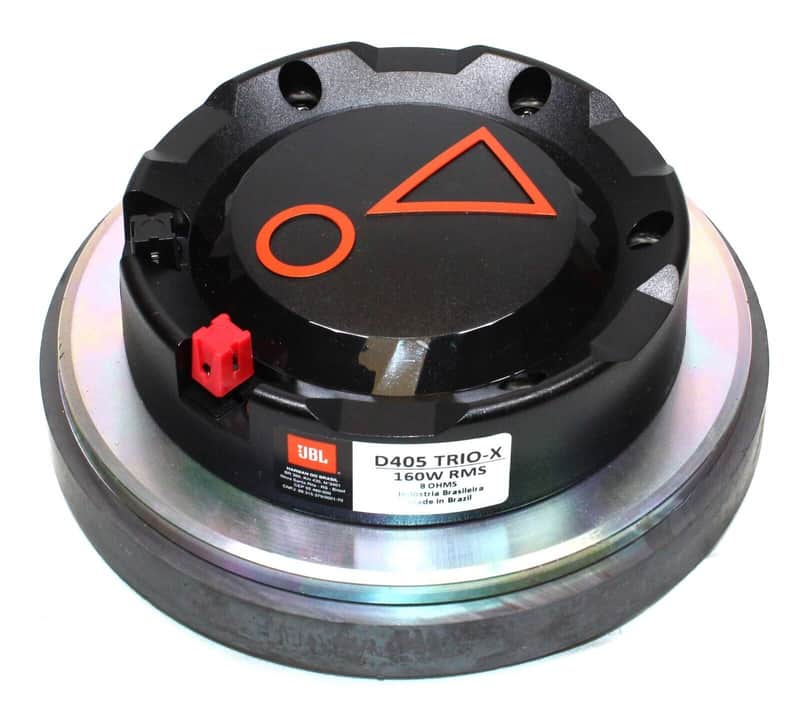

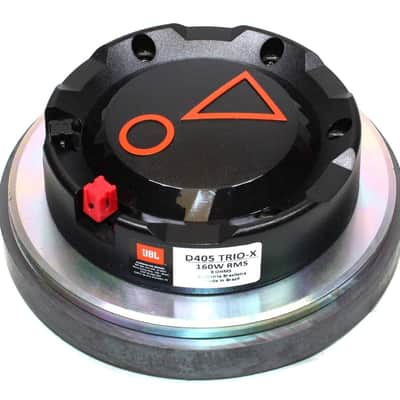

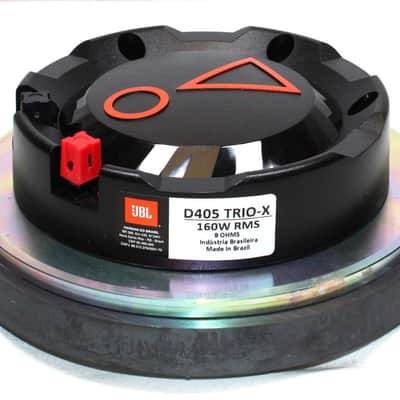

JBL D405 TRIO-X 160 Watt 8 Ohm Compression Driver

Overview

The JBL D405 TRIO-X is a high-performance compression driver designed for professional audio applications. Known for its robust construction and high-efficiency phenolic diaphragm, this driver delivers powerful and clear sound, making it ideal for sound reinforcement in both live and installed sound systems. With its 160W RMS power rating and 8-ohm impedance, the D405 TRIO-X ensures excellent performance and reliability.

Features:

• High-efficiency phenolic diaphragm for clear, powerful sound
• Robust ferrite magnet assembly with high magnetic flux
• 2-inch throat diameter for direct coupling to compatible horns
• High sensitivity for superior sound projection

Specifications:

• Nominal Impedance: 8 Ohms
• Power Handling:

  • Continuous (RMS): 160W
  • Peak: 320W


• Sensitivity: 110 dB (1W @ 1m on horn)
• Frequency Response: 500 Hz - 6500 Hz
• Recommended Minimum Crossover: 500 Hz (12 dB/oct)
• Voice Coil Diameter: 2 inches (50 mm)
• Diaphragm Material: Phenolic
• Magnet Material: Barium ferrite
• Mounting Information:

  • Overall Diameter: 7.5 inches (190 mm)
  • Depth: 3.9 inches (100 mm)
  • Throat Diameter: 2 inches (50 mm)
  • Weight: 6.6 lbs (3 kg)
