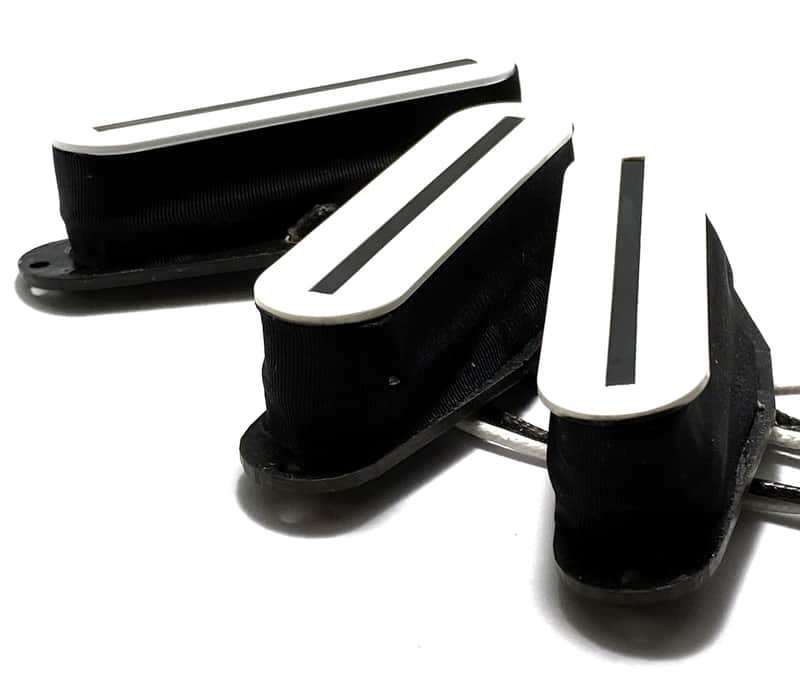

Dragonfire Oracle Rail Singles Set, Modern Ceramic Strat SSS Rail Pickups ~ White + Black Rails

Dragonfire Oracle Rail Singles Set, Passive Strat Single Coil Rail Pickups ~ Strat SSS Pickup Set (Bridge + Middle + Neck) Collaborative Three Pickup SSS Set Style: 1 qty Bridge Position Pickup + 1 qty Middle Position RWRP Pickup + 1 qty Neck Position Pickup ~ White with Black Rails

With nice, sparkling cleans and plenty of heat, these Oracle Rail Singles feature ceramic rail magnets for crisp tone and power performance. These passive pickups are dynamic enough to keep it interesting yet grounded enough to steady and support your playing. Utilizing a unique magnet design with distinct craftsmanship and high-capacity results, Oracle Rail Singles are a great combo for old-school power and modern edge that translates into almost any style.

Dragonfire Oracle Rails are great for strong string response in a variety of genres, helping you avoid string-to-string definition loss and drop-outs while delivering crisp and clean modern tone. These single coil rails provide an even dynamic for sweep picking and aggressive playing styles, bringing fuller presence to your performance.

Oracle Rail Singles are dedicated position pickups for performance enhancement and differentiation. Each pickup is wound specifically for its position, so these pickups are not position interchangeable. The Middle position pickup is Reverse-Wound and Reverse-Polarity (RWRP) to ensure the best possible set execution and collaboration. RWRP gives you hum-cancelling in Positions 2 & 4 with standard switch wiring.

Be sure to check out our Reverb Store for these pickups individually or in other set colors. Let us know if you have any questions.

~~Product Highlights~~

*Dragonfire 6 String Passive Strat Single Coil Pickups

*Strat Rail Pickup Specialty Design

*Dual Ceramic Bar Magnet Type for Great Coverage

*Wound for Dynamic Bass Response & Clear Highs

*Great Mid-Range, Full Response & Authentic Sound

*2 Conductor Wiring (2 Wire Pickup Design)

*Position Dedicated for Performance Differentiation

*Wax Potted for Squeal Reduction, Avoidance or Elimination

*Upgraded Fiber Baseplate

*Pickup Mounting Screws & Springs Included

*500K Pots & 0.047 Tone Caps Recommended

~~Approximate Measurements~~

*Bridge Output: Wound to ~8.2K

*Middle Output: Wound to ~8.1K

*Neck Output: Wound to ~8.0K

*58mm Rail Length

*Pickup Length: 70mm (81mm including mounting flanges)

*Pickup Width: 18mm

*Pickup Depth: 19mm

*Mounting Screw Spacing: 76mm

~~Installation Information~~

These 2-wire pickups come with a colored hot and a black ground wire for easy installation (colors may vary from sample images provided). Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use basic information and general knowledge to successfully complete installation with your choice of diagram or instructions.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

~~Purchase Notes~~

Please ask any questions prior to purchase. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.
