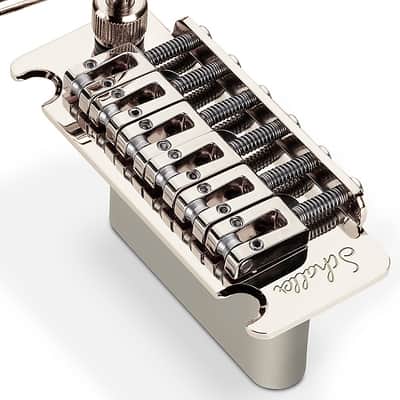

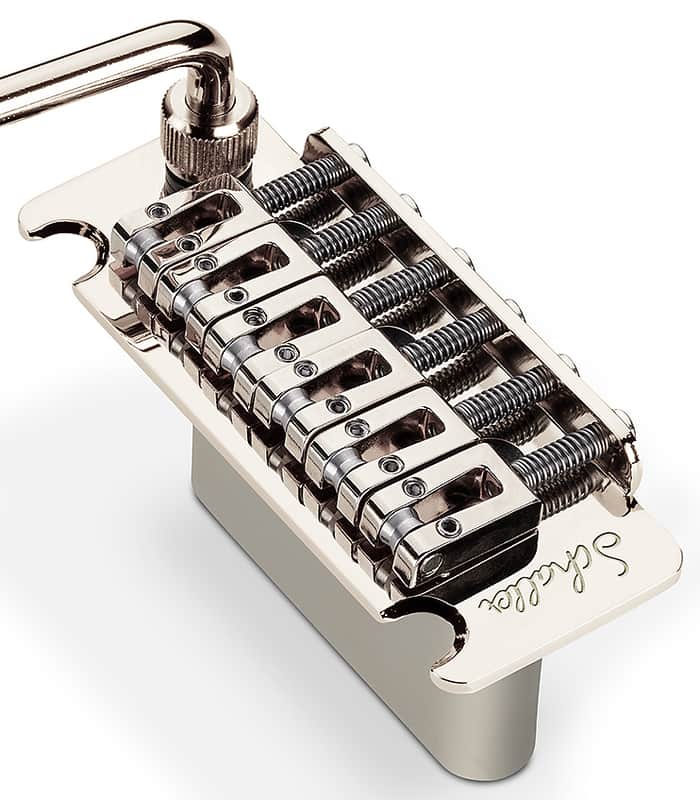

Schaller Germany Vintage Tremolo with Roller Saddles for Fender Strat, NICKEL

Vintage Tremolo with roller saddles and 37mm block

The baseplate of hardened steel and the solid spring block of the Schaller Vintage Tremolo ensures an outstanding sustain. The Roller bridge saddles fix the strings in their optimum position. It is also a perfect replacement for Fender® Stratocaster®* tremolos with standard 74.3 mm (equivalent to the distance between the height adjustment screws).

Tremolo mounting is done with special mounting studs and threaded metric inserts. These are provided with a fine thread. Optionally, we also offer height-adjustable wood screws for direct mounting into the wooden body. In this case, the insert is not required.



Technical specifications

• Distance height adjustment screws: 74.3 mm
• Size press-in bushing: 10 mm
• String spacing (E-e): 54 mm
• Slideway intonation: 12.0 mm
• Weight: 327 g with block length 37 mm
• Maximum string gauge: .095



Scope of supply

• 1 x Tremolo claw complete with 2 mounting screws 4.2 x 45 mm and 3 tremolo springs
• 2 x Mounting studs with 2 threaded bushings
• 1 x Tremoloblock according to selected length
