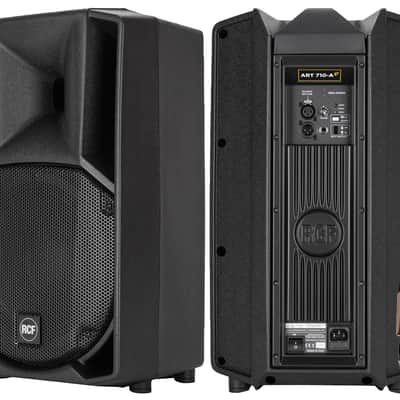

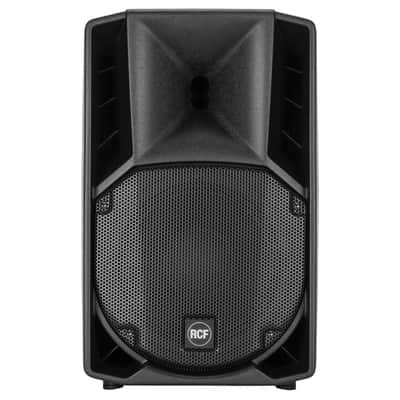

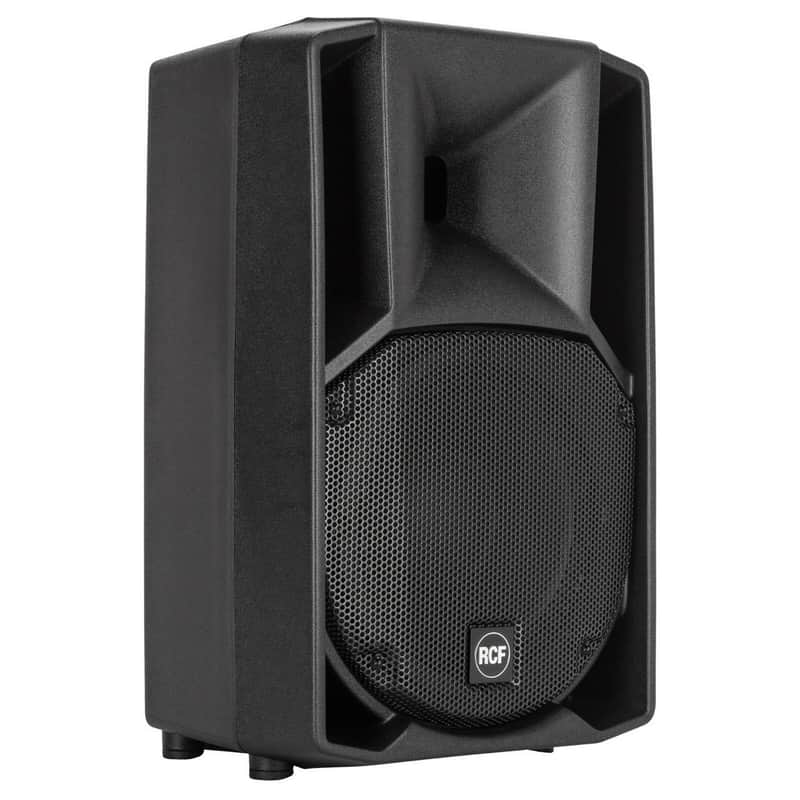

RCF ART 710-A MK4 ACTIVE TWO-WAY SPEAKER+ 25 FT. XLR Cable

ART 710-A MK4 is a unique product in its category. The compression driver with custom designed dome and high power voice coil offers unique vocal clarity and sound projection. The 10" woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

Features

• 129 dB Max SPL
• 1400 WATT 2-way power
• Innovative DSP Processing
• 1" Compression Driver, 1.75" v.c.

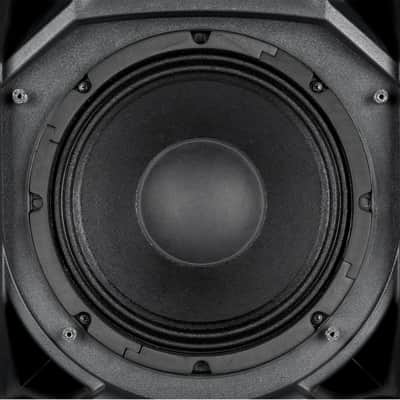

• 10" Woofer
• 90°x70°, wide dispersion constant directivity horn
• FiRPHASE Technology

NEW PERSPECTIVE ON LINEARITY

• RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

SUPERIOR COMPRESSION DRIVERS

• Woofers and compression drivers are precision built taking advantage of RCF's technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.

POWERFUL CLASS D AMPLIFIERS

• RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

BRING ART WITH YOU

• The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality.

SPECIFICATIONS

Transducers

• Compression Driver: 1.0'', 1.75'' v.c
• Woofer: 10'', 2.5'' v.c

Acoustical Specifications

• Frequency Response: 50 Hz ÷ 20000 Hz
• Max SPL @ 1m: 129 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 70°

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XRL, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu
• Mic. Input Sensitivity: -32 dBu

Processor section

• Crossover frequencies: 1600 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line

Power section

• Total Power: 1400 W Peak, 700 W RMS
• High frequencies: 400 W Peak, 200 W RMS
• Low frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: VDE

Standard compliance

• CE marking: Yes

Physical Specifications

• Cabinet/Case Material: PP Composite
• Hardware: 2 x M10
• Handles: 1 Top
• Grille: Steel
• Color: Black

Size

• Height: 548 mm / 21.57 inches
• 340 mm / 13.39 inches
• Depth: 305 mm / 12.01 inches
• Weight:14.2 kg / 31.31 lbs

Shipping informations

• Package Height: 585 mm / 23.03 inches
• Package Width: 425 mm / 16.73 inches
• Package Depth: 405 mm / 15.94 inches
• Package Weight:16.8 kg / 37.04 lbs
