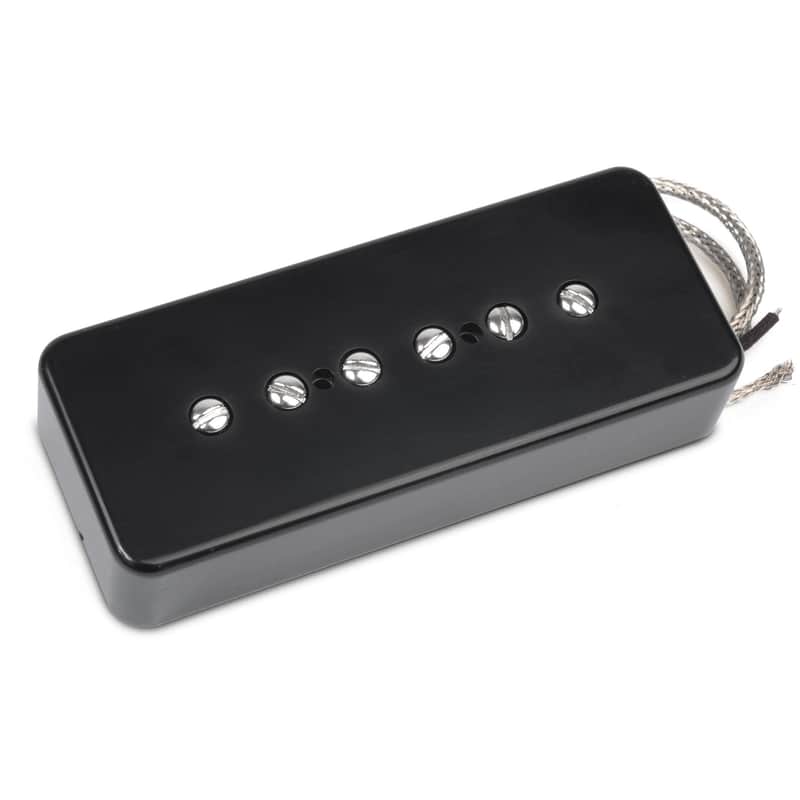

StewMac Modern Soapbar P-90 Pickup, Bridge Position, Original, Black Cover

StewMac Modern Soapbar P-90 Pickups

We've captured the soul of these iconic pickups and added a few tweaks for modern players to create the versatile P-90s ever.

The new standard for replacement pickups
One of the earliest pickup designs, P-90s have a wonderful, warm tone that is equally suited for clean jazz and overdriven rock. Loaded with Alnico 5 magnets, the balanced tone is bright but not harsh, and the bass is rounded and never muddy.

Versatility for every player
We took these up a notch by potting them for quiet operation—a must have for overdriven tones. The poly-coated wire also gives the pickup a smoother sound. The fiber flatwork also looks great for installations with the covers removed.

Each pickup is custom-wound for neck and bridge positions. The bridge is wound hotter for a more balanced tone and output.

By player request—all the tone and no hum!
The neck position is reverse wound/reverse polarity (RWRP) for hum cancellation in the middle position. For vintage non-hum-canceling wiring, use two "original" bridge pickups.

Direct replacement design
StewMac P-90s are drop-in replacements compatible with Gibson Les Paul Juniors, SG Juniors, and SG Specials, plus archtop and semi-hollowbody Gibsons made for P-90s. And they're great choices for custom builds.

Specifications

• Medium output single-coil pickup
• Polepiece spread: 1.970" (50mm) (neck and bridge)
• Poly-coated 42 AWG coil wire
• Potted to suppress noise
• Alnico 5 magnets
• Original-spec nickel-plated polepiece screws
• Single-conductor braided shield lead wires

Output

• Neck position: 8K ohm range
• Bridge position: 8.7K ohm range

Dimensions

• Length: 3.33" (84.5mm)
• Width: 1.38" (35mm)

• P-90s Have A Wonderful, Warm Tone That Is Equally Suited For Clean Jazz And Overdriven Rock. Loaded With Alnico 5 Magnets, The Balanced Tone Is Bright But Not Harsh, And The Bass Is Rounded And Never Muddy.
• Potted For Quiet Operation—a Must Have For Overdriven Tones. The Poly-coated Wire Also Gives The Pickup A Smoother Sound. The Fiber Flatwork Also Looks Great For Installations With The Covers Removed.
• Each Pickup Is Custom-wound For Neck And Bridge Positions. The Bridge Is Wound Hotter For A More Balanced Tone And Output.
• Specs: Medium output single-coil pickup / Polepiece spread: 1.970" (50mm) (neck and bridge) / Poly-coated 42 AWG coil wire / Potted to suppress noise / Alnico 5 magnets / Original-spec nickel-plated polepiece screws / Single-conductor braided shield lead wires
• Compatible With Gibson Les Paul Juniors, Sg Juniors, And Sg Specials, Plus Archtop, and Semi-Hollowbody Gibsons Made For P-90s
