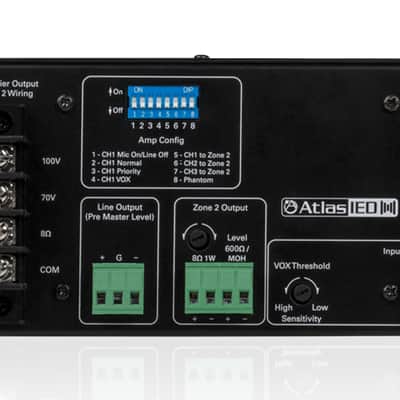

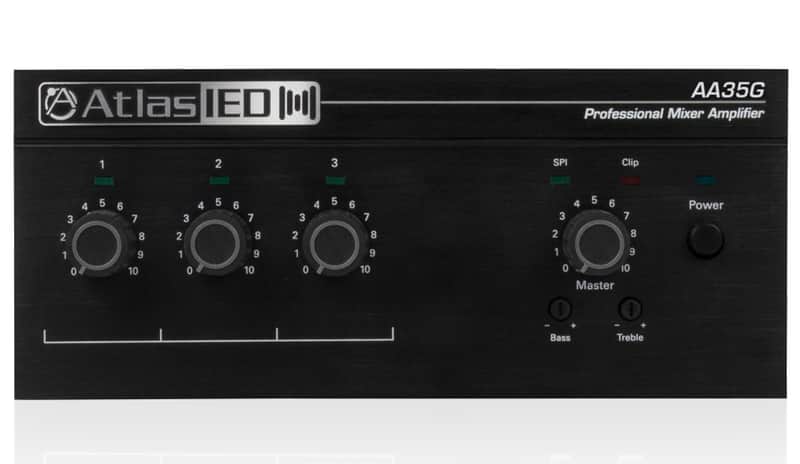

Mint Atlas IED AA35G Mixer Amplifier with 3-Inputs, 35 Watts

Designed for paging, BGM, privacy systems and MOH systems.

The AA35G three-input mixer/amplifier is designed for distributed business paging and background music systems (BGM), small to medium speech privacy systems, and in installations where music on hold (MOH) plus paging is required. Accommodates a variety of input sources courtesy of its one microphone and two stereo line inputs, including paging mics, digital music players, smartphones, and more. A dip switch-programmable matrix allows the creation of a Zone 2 mix from any or all of the input sources for music or messaging on-hold applications. 70.7V, 100V, and 8-ohm outputs are provided, and there’s an optional rack-mount kit available (AAGRMK2).

• Three inputs (each with a front panel volume control) and a single output channel
• Ideal for Paging, Background Music, and Music-On-Hold Applications
• Balanced Mic/Line Input, Telco Input, Zone 2, and Dual RCA Stereo Music Inputs
• Priority Muting by VOX or External Switch
• Bass and Treble Controls
• Secondary Zone 2 Output 1 W & 600Ω / MOH
• Universal AC Power Supply for Use 110V - 240V Systems
• 70V, 100V, or 8Ω Amplifier Output
• Signal Presence LED Indicators

• Frequency Response: 50 Hz - 20 kHz
• Connector Type: Phoenix and RCA
• Output Power: 35W
• Rack Units: 2 high 1/2 wide
• Height: 4.1" (104 mm) Including Feet
• Width: 9.5" (241 mm)
• Depth: 13.9" (353 mm) Front of Knobs to Back Panel
• Shipping Weight: 8 lbs 2 oz (3.7 kg)
• Safety Listed: 60065-ROHS 2006 Compliant
• Voltage Compatibility: Universal
