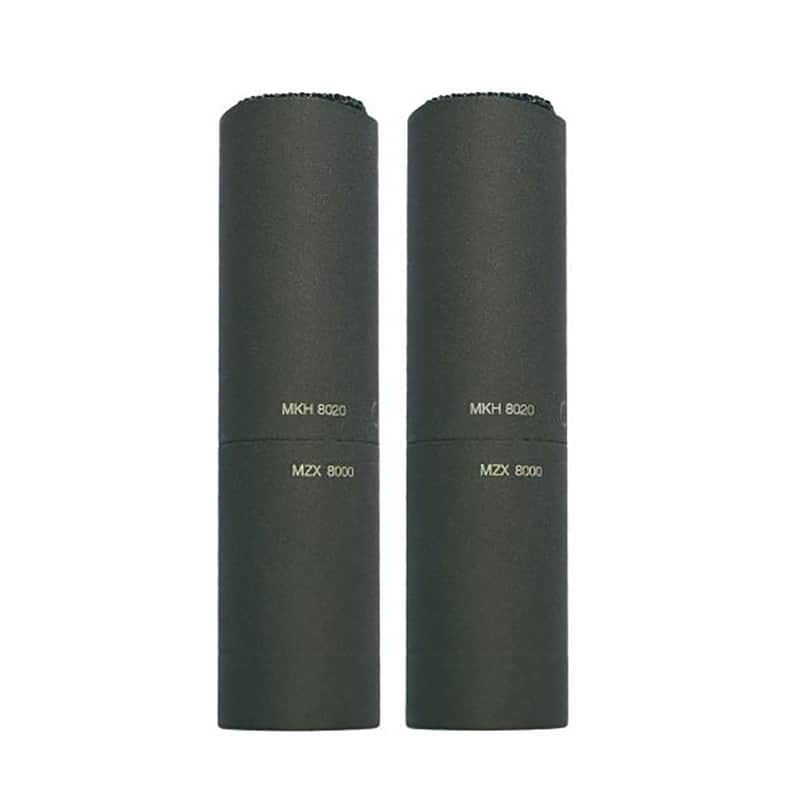

The omni-directional MKH 8020 is ideal for recording large and small sound sources, for a "Decca Tree" or for use in an OSS "Jecklin Disk" array. As it does not suffer from a proximity effect, it is also a good choice for close-miking. If the acoustic ambiance is right, this microphone will provide very impressive recordings. The extra octave at the bottom end makes the MKH 8020 perfect for recording pipe organs, grand piano and acoustic double-bass..

FEATURES:

• Omni-directional pick-up pattern
• Modular design
• Wide frequency response 10 to 60,000 Hz
• Symmetrical transducer with 2 backplates providing extremely low distortion
• Extremely low inherent self-noise
• Accurate directional pattern
• Non reflective Nextel coating
• Ideal for stereo and surround recordings, as an M microphone and for ambience
• Also available in stereo pairs

INCLUDES:

• MKHC 8020 (spherical) microphone head (omnidirectional, condenser)
• MZX 8000 XLR module
• MZW 8000 windscreen
• MZQ 8000 microphone clip
• Aluminum case

SPECIFICATIONS

Pick-up Pattern: Omni-directional

Transducer Principle: RF Condenser

Frequency Response: 10–60,000 Hz

Sensitivity in Free Field, no load (1kHz): –30 dBV/Pa (31 mV/PA)

Sound Pressure Level: 138 dB

Equivalent Noise Level:

• A-weighted (DIN 651): 10 dB (A)
• CCIR-weighted (CCIR 268-3): 21 dB

Output Signal: Balanced, transformerless, floating

Output Impedance: 25 Ω

Min. Terminating Impedance: 1,000 Ω

Phantom Power Supply: 48 V ± 4 V

Supply Current: 3.3 mA

Diameter: 19 mm

Length of Microphone Module: 41mm (74 mm including XLR module)

Weight: 25 g (55 g including XLR module)
