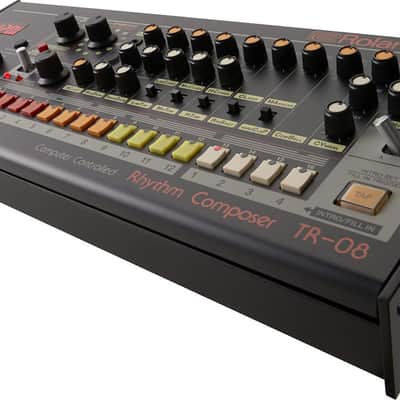

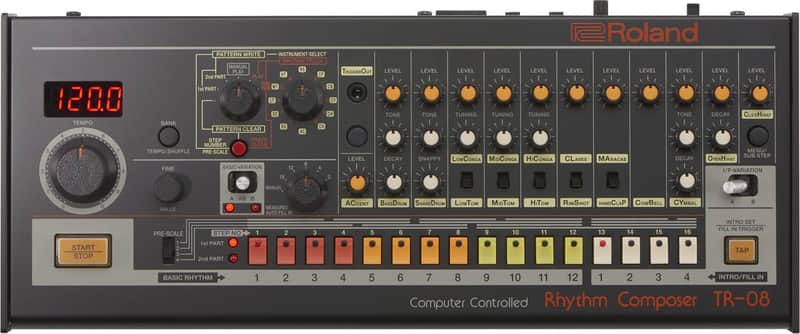

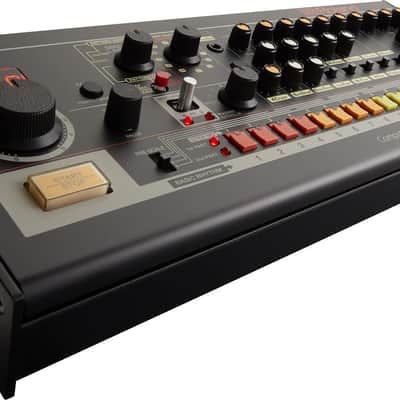

The TR-08 is an obsessively detailed and faithful replica of the legendary TR-808—easily the most famous and influential drum machine ever made. After creating a monumental shift in the sound of music, the “808” has continued to shape and define entire genres. Beloved by musicians and producers the world over, it’s one of the most revered and sought-after electronic musical instruments of all time. The TR-08 brings the look, sound, and feel of the original 808—with stunning accuracy—to the Roland Boutique format. It blends attention to detail and respect for legacy with modern convenience and reliability.

Product Features

• Ultra-Compact Recreation of the Legendary TR-808 Drum Machine
• Hands-On Control Including Tone, Level, Tuning, and Decay
• Added Compressor, Gain, Tune, and Pan for Selected Instruments
• Programmable via Classic Step and Tap Write Modes
• Continue Playing Beats Even while Switching Between Write Modes
• Ten Separate Outputs via USB Audio
• Dedicated, Track-Selectable Trigger Output for Controlling External Instruments
• Includes DK-01 Boutique Dock for Multiple-Angle Viewing

Technical Specifications

• Type: Electric
• Dimensions: 2.06" H x 12.12" W x 5.12" D
• Weight: 2lbs
• Inputs: 1 x 1/8" (mix in)
• Outputs: 1 x 1/8" (output), 1 x 1/8" (headphones), 1 x 1/8" (trigger out)
• MIDI: In, Out
• USB: 1 x Type Micro-B
• Power Supply: 4 x AA Batteries / USB Bus Power
• Sequencer: 16-Steps, 16 Sub-Steps
• Pads: 16 x Trigger Buttons
• # of Sounds: Bass Drum, Snare, Low Conga/Tom, Mid Conga/Tom, Hi Conga/Tom, Claves, Rim Shot, Maracas, Hand Clap, Cow Bell, Cymbal, Hi-Hat
