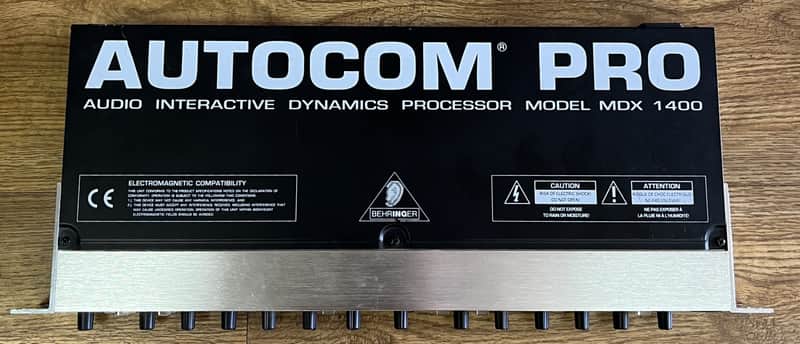

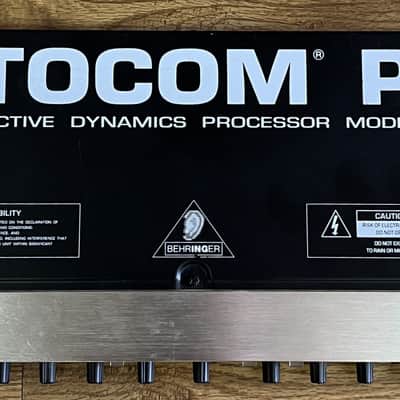

BEHRINGER AUTOCOM PRO MDX 1400 AUDIO INTERACTIVE DYNAMIC PROCESSOR COMPRESSOR/LIMITER/GATE (USED)
This unit is Used and in Excellent Condition. It has some slight discoloration on one side (see pictures).
Comes as pictured with power cable. Please zoom pictures and approve condition before you purchase.
Here is some info from the web (please check for accuracy):
Interactive expander, gate, compressor, limiter, and enhancer with interactive auto compression circuitry.
Overview - Features
Interactive stereo dynamics processor with couple function
Auto and manual mode compression
Separate IRC expander/gate circuits
Integrated dynamic enhancer
IKA (Interactive Knee Adaptation) compressor
Fully automatic or manually controllable attack and release times
IRC circuit with controllable ratio allows "inaudible" expansion/gating
Dual-mono or stereo ("true stereo") operation
Precise 12-segment LED displays for input/output levels and gain reduction
Switchable, external side chain input with side chain monitor function
Operating level switchable from +4 dBu to -10 dBV
Servo-balanced inputs and outputs
XLR and jack connectors
Manufactured under ISO9000 certified management system

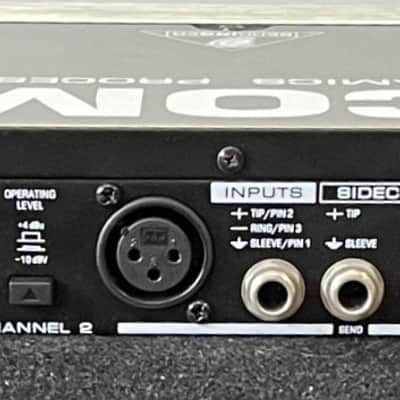

Specs - Audio Input
Connectors: XLR and 1/4" jack
Type: RF filtered, servo-balanced input
Impedance: 50 kOhm balanced, 25 kOhm unbalanced
Nominal Operating Level: +4 dBu/-10 dBV switchable
Max. Input Level: +21 dBu balanced and unbalanced
CMRR typ.: 40 dB, >55 dB @ 1 kHz
Audio Output
Connectors: XLR and 1/4" jack
Type: electronically servo-balanced output stage (optional transformer-balanced)
Impedance: 60 Ohms balanced, 30 Ohm unbalanced
Max. Output Level: +21 dBu, +20 dBm balanced and unbalanced
SC Input
Connector: 1/4" jack
Type: RF-rejecting, DC de-coupled, unbalanced input
Impedance: >10 kOhm
Max. Input Level: +24 dBu
SC Output
Connector: 1/4" jack
Type: RF-rejecting, DC de-coupled, unbalanced output
Impedance: 2 kOhm
Max. Output Level: +21 dBu
System Specifications
Bandwidth: 20 Hz to 20 kHz, +0/-0.5 dB
Frequency Response: 0.35 Hz to 200 kHz, +0/-3 dB
Noise: > 95 dBu, unweighted, 22 Hz to 22 kHz
THD: 0.008% typ. @ +4 dBu, 1 kHz, Gain 1
0.04% typ. @ +20 dBu, 1 kHz, Gain 1
IMD: 0.01% typ. SMPTE
Crosstalk: < -100 dB, 22 Hz to 22 kHz
Stereo Coupling true RMS detection

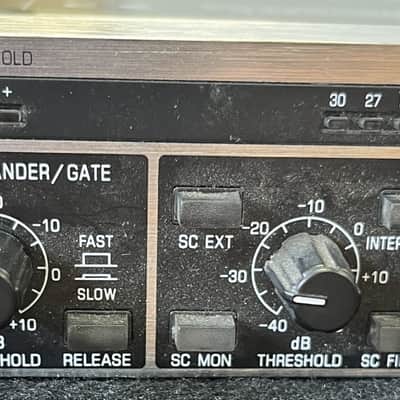

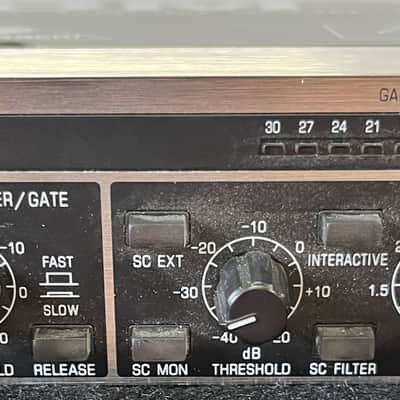

Expander/Gate Section
Type: IRC (Interactive Ratio Control) Expander
Threshold variable: (OFF to +15 dB)
Attack: <1 ms / 50 dB, program dependent
Release variable: (SLOW: 100 ms/1 dB, FAST: 100 ms/100 dB)

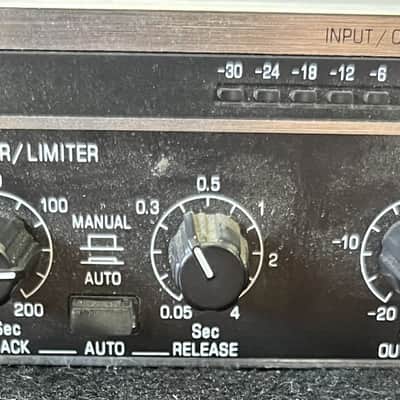

Compressor Section
Type: IKA (Interactive Knee Adaption) Compressor
Threshold variable: (-40 dB to +20 dB)
Ratio variable: (1:1 to oo:1)
Threshold characteristics variable: (Interactive or Hard Knee)
Auto characteristics: Wave Adaptive Compressor
Manual Attack Time: variable (0.5 ms/20 dB to 100 ms/20 dB)
Manual Release Time: variable (0.05 ms/20 dB to 5 s /20 dB)
Auto Attack Time typ.: 15 ms at 10 dB, 5 ms at 20 dB, 3 ms at 30 dB
Auto Release Time: program dependent, typ. 125 dB/s
Output variable: (-20 to +20 dB)

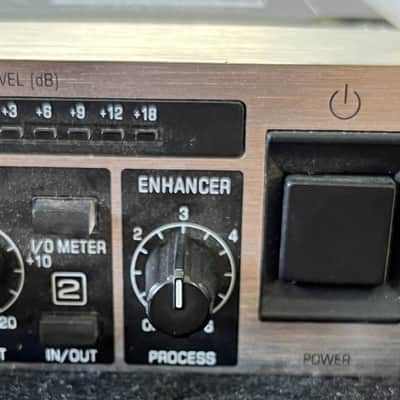

Dynamic Enhancer Section
Type: dynamically controlled frequency correction
Process variable (Off to 6)
Function Swithces
SC EXTERN: switches the detector section to the external SC input
SC MON: monitoring the external SC input, disengaging the normal audio
INTERACTIVE: enables the Interactive Knee Adaption characteristics
CONTOUR: allows for frequency dependent detection
AUTO: enables the automatic and program dependent setting of the Attack-/Release times, disengaging the manual Attack-/Release controls
I/O METER: switches between input and output for the level meter
IN/OUT: relay controlled hard-bypass
OPERATING LEVEL: changes the internal reference level from +4 dBu to -10 dBV
COUPLE: linking both channels for stereo operation and channel 1 becomes master
Indicators
Gain Reduction: 12 element LED display: 1/2/4/6/9/12/15/18/21/24/27/30 dB
Input/Output Level: 12 element LED display: -30/-24/-18/-12/-6/0/+3/+6/+9/+12/+18 dB
Expander/Gate: Threshold 2 LED for under "+" and above "-"
Function switch: LED indicator for each
Options
Output Transformer: Behringer transformer OT-1 refittable
Power Supply
Mains voltages: USA/Canada 120 V ~, 60 Hz
U.K./Australia: 240 V ~, 50 Hz
Europe: 230 V ~, 50 Hz
General export model: 100 - 120 V ~, 200 - 240 V ~, 50 - 60 Hz
Fuse: 100 - 120 V ~: T 250 mA H
200 - 240 V ~: T 125 mA H
Power consumption max.: 20 Watts
Mains connection standard: IEC receptacle
Physical
Dimension (H x W x D): 44.5 x 44.5 x 217 mm (1-3/4 x 19 x 8-1/2 in.)
Net Weight: 2.2 kg, approximately
Shipping Weight: 3.4 kg, approximately
This unit is Used and in Excellent Condition. It has some slight discoloration on one side (see pictures).
Comes as pictured with power cable. Please zoom pictures and approve condition before you purchase.
Here is some info from the web (please check for accuracy):
Interactive expander, gate, compressor, limiter, and enhancer with interactive auto compression circuitry.
Overview - Features
Interactive stereo dynamics processor with couple function
Auto and manual mode compression
Separate IRC expander/gate circuits
Integrated dynamic enhancer
IKA (Interactive Knee Adaptation) compressor
Fully automatic or manually controllable attack and release times
IRC circuit with controllable ratio allows "inaudible" expansion/gating
Dual-mono or stereo ("true stereo") operation
Precise 12-segment LED displays for input/output levels and gain reduction
Switchable, external side chain input with side chain monitor function
Operating level switchable from +4 dBu to -10 dBV
Servo-balanced inputs and outputs
XLR and jack connectors
Manufactured under ISO9000 certified management system
Specs - Audio Input
Connectors: XLR and 1/4" jack
Type: RF filtered, servo-balanced input
Impedance: 50 kOhm balanced, 25 kOhm unbalanced
Nominal Operating Level: +4 dBu/-10 dBV switchable
Max. Input Level: +21 dBu balanced and unbalanced
CMRR typ.: 40 dB, >55 dB @ 1 kHz
Audio Output
Connectors: XLR and 1/4" jack
Type: electronically servo-balanced output stage (optional transformer-balanced)
Impedance: 60 Ohms balanced, 30 Ohm unbalanced
Max. Output Level: +21 dBu, +20 dBm balanced and unbalanced
SC Input
Connector: 1/4" jack
Type: RF-rejecting, DC de-coupled, unbalanced input
Impedance: >10 kOhm
Max. Input Level: +24 dBu
SC Output
Connector: 1/4" jack
Type: RF-rejecting, DC de-coupled, unbalanced output
Impedance: 2 kOhm
Max. Output Level: +21 dBu
System Specifications
Bandwidth: 20 Hz to 20 kHz, +0/-0.5 dB
Frequency Response: 0.35 Hz to 200 kHz, +0/-3 dB
Noise: > 95 dBu, unweighted, 22 Hz to 22 kHz
THD: 0.008% typ. @ +4 dBu, 1 kHz, Gain 1
0.04% typ. @ +20 dBu, 1 kHz, Gain 1
IMD: 0.01% typ. SMPTE
Crosstalk: < -100 dB, 22 Hz to 22 kHz
Stereo Coupling true RMS detection
Expander/Gate Section
Type: IRC (Interactive Ratio Control) Expander
Threshold variable: (OFF to +15 dB)
Attack: <1 ms / 50 dB, program dependent
Release variable: (SLOW: 100 ms/1 dB, FAST: 100 ms/100 dB)
Compressor Section
Type: IKA (Interactive Knee Adaption) Compressor
Threshold variable: (-40 dB to +20 dB)
Ratio variable: (1:1 to oo:1)
Threshold characteristics variable: (Interactive or Hard Knee)
Auto characteristics: Wave Adaptive Compressor
Manual Attack Time: variable (0.5 ms/20 dB to 100 ms/20 dB)
Manual Release Time: variable (0.05 ms/20 dB to 5 s /20 dB)
Auto Attack Time typ.: 15 ms at 10 dB, 5 ms at 20 dB, 3 ms at 30 dB
Auto Release Time: program dependent, typ. 125 dB/s
Output variable: (-20 to +20 dB)
Dynamic Enhancer Section
Type: dynamically controlled frequency correction
Process variable (Off to 6)
Function Swithces
SC EXTERN: switches the detector section to the external SC input
SC MON: monitoring the external SC input, disengaging the normal audio
INTERACTIVE: enables the Interactive Knee Adaption characteristics
CONTOUR: allows for frequency dependent detection
AUTO: enables the automatic and program dependent setting of the Attack-/Release times, disengaging the manual Attack-/Release controls
I/O METER: switches between input and output for the level meter
IN/OUT: relay controlled hard-bypass
OPERATING LEVEL: changes the internal reference level from +4 dBu to -10 dBV
COUPLE: linking both channels for stereo operation and channel 1 becomes master
Indicators
Gain Reduction: 12 element LED display: 1/2/4/6/9/12/15/18/21/24/27/30 dB
Input/Output Level: 12 element LED display: -30/-24/-18/-12/-6/0/+3/+6/+9/+12/+18 dB
Expander/Gate: Threshold 2 LED for under "+" and above "-"
Function switch: LED indicator for each
Options
Output Transformer: Behringer transformer OT-1 refittable
Power Supply
Mains voltages: USA/Canada 120 V ~, 60 Hz
U.K./Australia: 240 V ~, 50 Hz
Europe: 230 V ~, 50 Hz
General export model: 100 - 120 V ~, 200 - 240 V ~, 50 - 60 Hz
Fuse: 100 - 120 V ~: T 250 mA H
200 - 240 V ~: T 125 mA H
Power consumption max.: 20 Watts
Mains connection standard: IEC receptacle
Physical
Dimension (H x W x D): 44.5 x 44.5 x 217 mm (1-3/4 x 19 x 8-1/2 in.)
Net Weight: 2.2 kg, approximately
Shipping Weight: 3.4 kg, approximately
