Quint Guitars 1590BB Drill Templates

If you are tired of printing drilling templates and taping them on to enclosures, this might be for you.

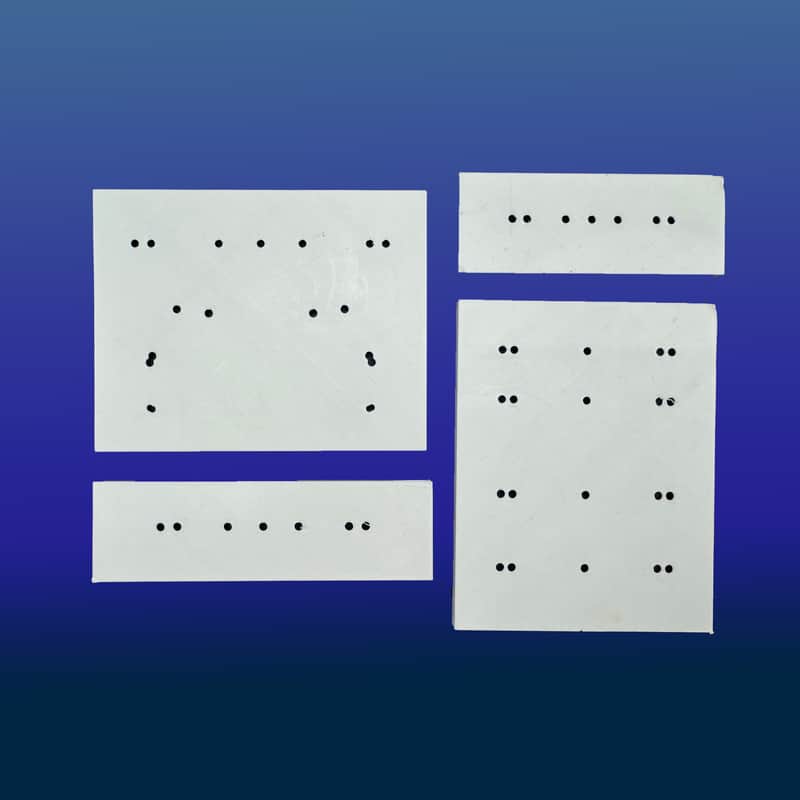

I designed and 3D printed these templates for myself but realized they would be very useful for other folks who design and build guitar pedals. This is a template for a 1590BB pedal. It fits perfectly on a Tayda or Stompboxparts enclosure. This includes 4 templates - Two for vertical and Two for horizontal. The tops are sized for 1590BB2 which are slightly deeper than 1590BB but can easily be used for both by aligning them to the bottom of the enclosure. The vertical set works with most pedalpcb.com and madbean enclosures and the horizontal set is made for the most popular styles (Electrovibe and Paragon [King of Tone]).

My method for using the templates:

- Use a center punch to mark the holes for your desired knob/hole layout.

- Remove the template and re-punch the holes.

- Use a fine drill bit to drill through the punches.

- Use the correct size bit for the knobs or a step drill bit to drill to the correct size.

The color of the templates is an example - they might be printed in a different colored plastic.

I also have templates for 125B and 1590B size enclosures.
