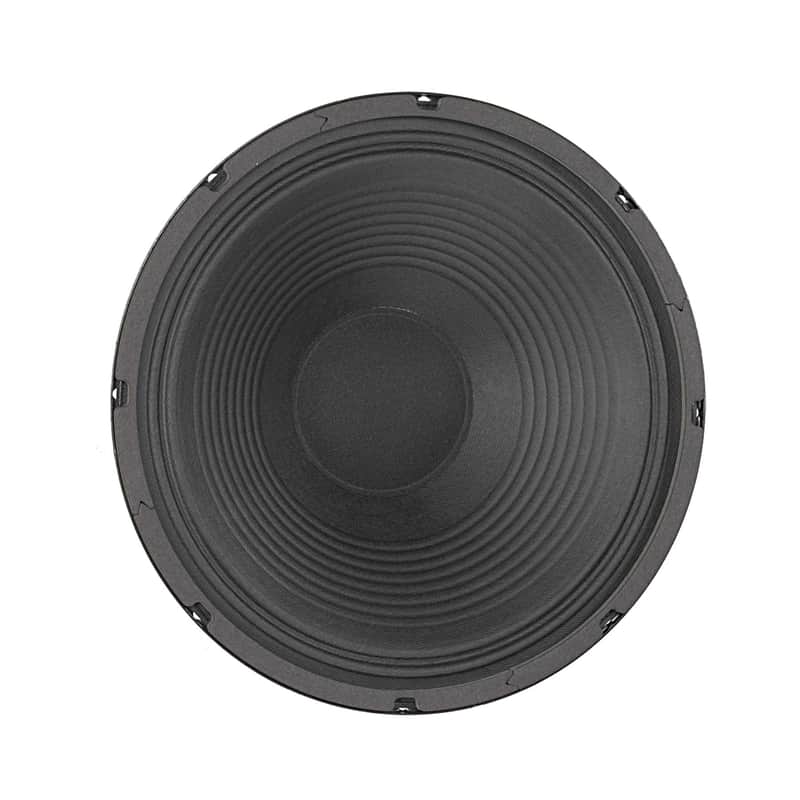

Eminence Legend GB128 - 8 Ohms - 50w

The Eminence Legend GB128 guitar speaker helps clean up your act. Cleaner British voiced tone with a full low end, warm, throaty mids and a very open top end. Turn up the volume and turn back the clock.

Series Legends

Model Legend GB128

Application 12" Open or Closed Back

Configuration 1, 2, or 4 X 12"

Low-End Response Moderate

Low-End Shape Fat/Round

Mid-Range Response Moderate

Mid-Range Shape Warm

High-End Response Moderate

Volume/Power Louder

Overall Coloration* Cleaner British voiced tone with a full low end, warm, throaty mids, and a very open top end. A cleaner Private Jack tone with a fatter low end.

Break-up Modes Medium

Power Range 50 watts

Instrument* Lead/Rhythm Guitar

Genre of Music* Rock, Blues, Country

SPECIFICATION

Nominal Basket Diameter 12", 305 mm

Nominal Impedance* 8 Ω

Power Rating*

Program Power N/A

Watts 50 W

Resonance 86 Hz

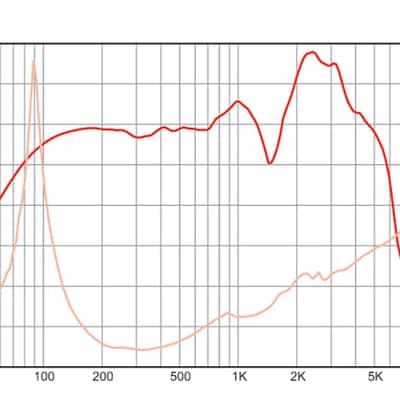

Usable Frequency Range 80 Hz - 5.1 kHz

Sensitivity* 101.3 dB

Magnet Weight 38 oz.

Gap Height 0.312", 7.9 mm

Voice Coil Diameter 1.75", 44 mm

THIELE & SMALL PARAMETERS

Resonant Frequency (fs) 86 Hz

DC Resistance (Re) 6.37 Ω

Coil Inductance (Le) 0.64m H

Mechanical Q (Qms) 19.54

Electromagnetic Q (Qes) 0.67

Total Q (Qts) 0.65

Compliance Equivalent Volume (Vas) 43.9 liters / 1.55 cu.ft.

Peak Diaphragm Displacement Volume (Vd) 40.5 cc

Mechanical Compliance of Suspension (Cms) 0.12 mm/N

BL Product (BL) 12 T-M

Diaphragm Mass Inc. Airload (MMs) 28 grams

Efficiency Bandwidth Product (EBP) 128

Maximum Linear Excursion (Xmax) 0.8 mm

Surface Area of Cone (Sd) 506.7 cm2

Maximum Mechanical Limit (Xlim) N/A

MOUNTING INFORMATION

Recommended Enclosure Volume

Sealed Acceptable

Vented Acceptable

Driver Volume Displaced 0.071 cu.ft. / 2 liters

Overall Diameter 12.03", 305.6 mm

Baffle Hole Diameter 11.07", 281.2 mm

Front Sealing Gasket Yes

Rear Sealing Gasket Yes

Mounting Holes Diameter 0.25", 6.4mm

Mounting Holes B.C.D. 11.59", 294.4mm

Depth 5.1", 129.5 mm

Net Weight 8.1 lbs, 3.67 kg

Shipping Weight 10.1 lbs, 4.58 kgs

MATERIALS OF CONSTRUCTION

Coil Construction Copper voice coil

Coil Former Paper former

Magnet Composition Ferrite magnet

Core Details Non-vented core

Basket Materials Pressed steel basket

Cone Composition Paper cone

Cone Edge Composition Paper cone edge

Dust Cap Composition Zurette dust cap
