Jazzmaster HYBRID BRIDGE Pickup HOT 9.4kOhm A2 P90 / Humbucker Hand Wound Fender FAT by Q pickups

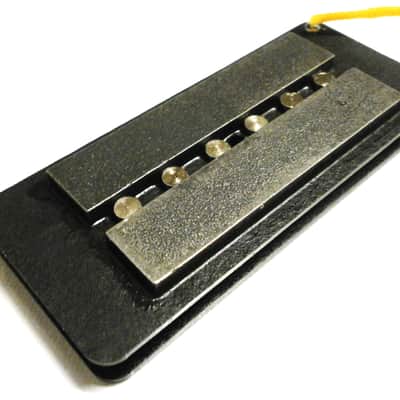

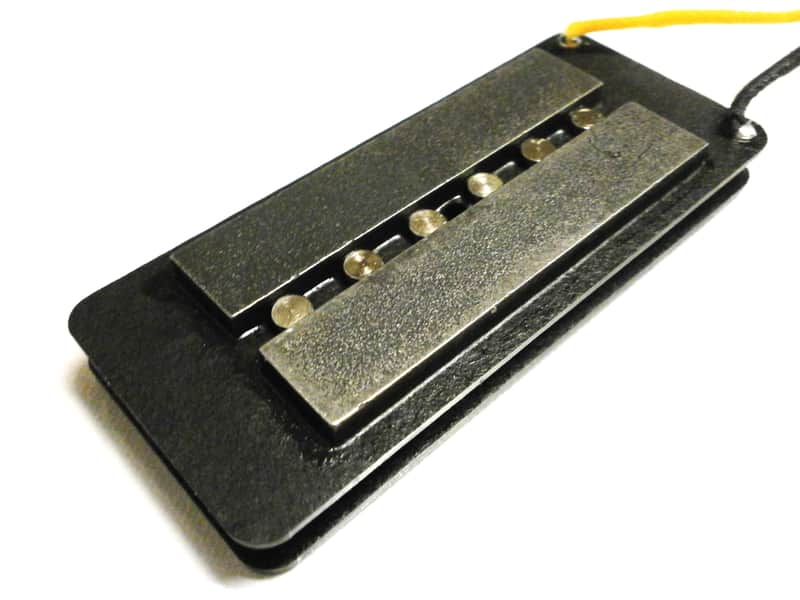

The Jazzmaster HYBRID pickup, designed for the bridge position, handcrafted by Q Pickups.

This pickup is Jazzmaster pickup size, not P90 or humbucker dimensions. It is kind of a hybrid of Jazzmaster, P90, and humbucker. Rather than traditional Alnico magnet rods used on classic JM pickups, it features nickel-plated steel slugs powered by two AlNiCo2 bar magnets. This design yields a tone that is both fatter and warmer, reminiscent of a P90 but with greater fullness and clarity, thanks to the steel slugs. The hot bridge measures at 9.4 kOhm, delivering some extra bite. A neck position variant is also available upon request.

- hand wound with Elektrisola AWG42 wire

- vintage specs BLACK flatwork

- cloth covered push back hookup wires

- correct vintage Jazzmaster coil dimensions

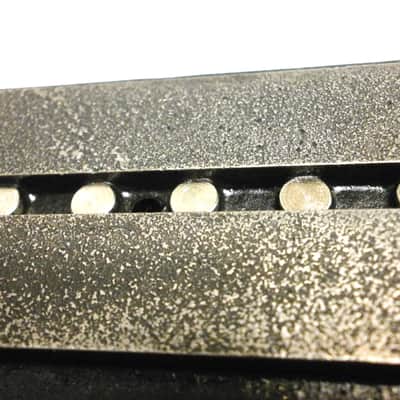

- Nickel plated STEEL slugs

- Alnico 2 BAR MAGNETS

- wax potted in paraffin and bee`s wax

- magnetic polarity is SOUTH UP / winding direction CW

Pole spacing is 51.0mm (2.007 in.) on center. If you have any questions or need something a little different please let us know and we will work it out.
