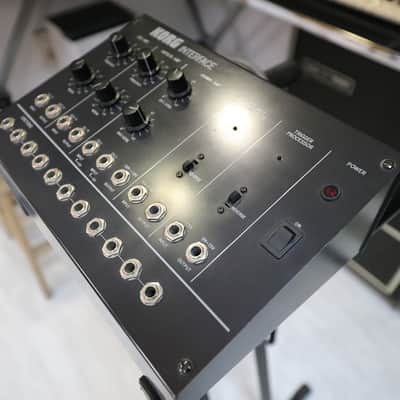

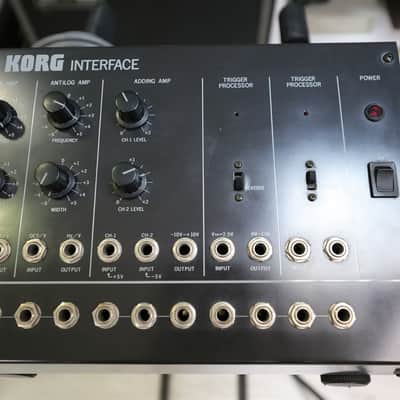

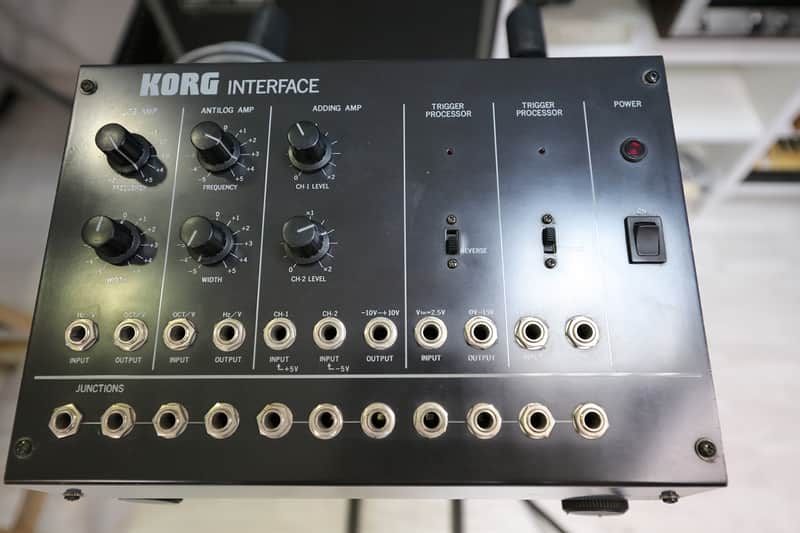

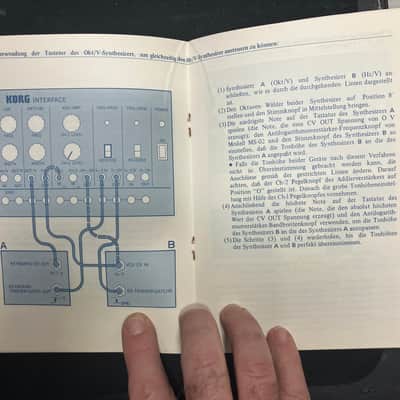

Korg MS-02 Interface with original manual

The MS-02 is ideal if you want to upgrade your synthesizer by adding on other synthesizer units having different kinds of keyboard control voltage and trigger signals. The built-in, fully adjustable log amp, anti-log amp, and trigger processor ensure complete system flexibility and compatibility between any presently voltage controlled synthesizer."

The Korg Interface MS-02 is designed for the purpose of connecting Korg MS-Series synthesizers with other synthesizers available throughout the world. This sophisticated signal processor greatly enhances the performance possibilities of the MS-Series.

Among presently available music synthesizers, there are two different types of control system used for the VCO (voltage controlled oscillator) and EG (envelope generator). One of these systems is used by Korg and Yamaha; the other is employed by every other synthesizer manufacturer. The Korg MS-02 provides you with a way to change the control signals of one system into the control signals used in the other system. In this way, it acts as an interface so that any two synthesizers can be used together, provided that the synthesizers are equipped with the conventional input and output jacks for control voltage and trigger or gate signals.

This MS-02 is in perfect working condition and in excellent external condition.
This unit was checked by professional technicians.

Attention!!
This item is 220V 50/60hz, you may need a transformer depending on your country.
