Wireless IEM Antenna Distro for Shure Sennheiser Mipro

Hey guys, Mike here with Freq City Sound in Cincinnati.

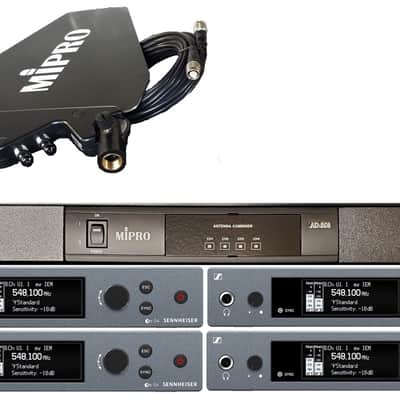

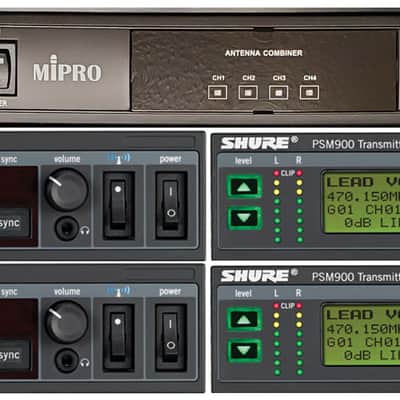

This IEM Combiner package will work with the Mipro MI909, Shure PSM900, PSM300 and the Sennheiser G4 In Ear Monitor Systems. In addition, any IEM system operating between 470MHz and 960MHz.

Note: The wireless IEM systems are NOT included. Just the AD808 distro, paddle and cables.

Also, the Mipro AD808 DOES NOT send electric to your wireless transmitters.

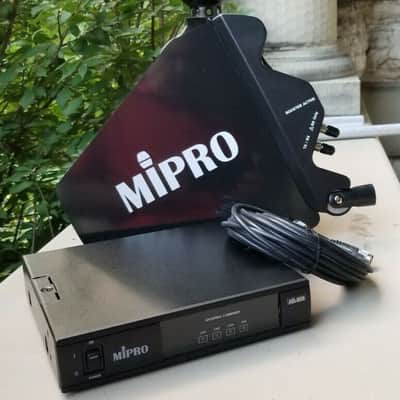

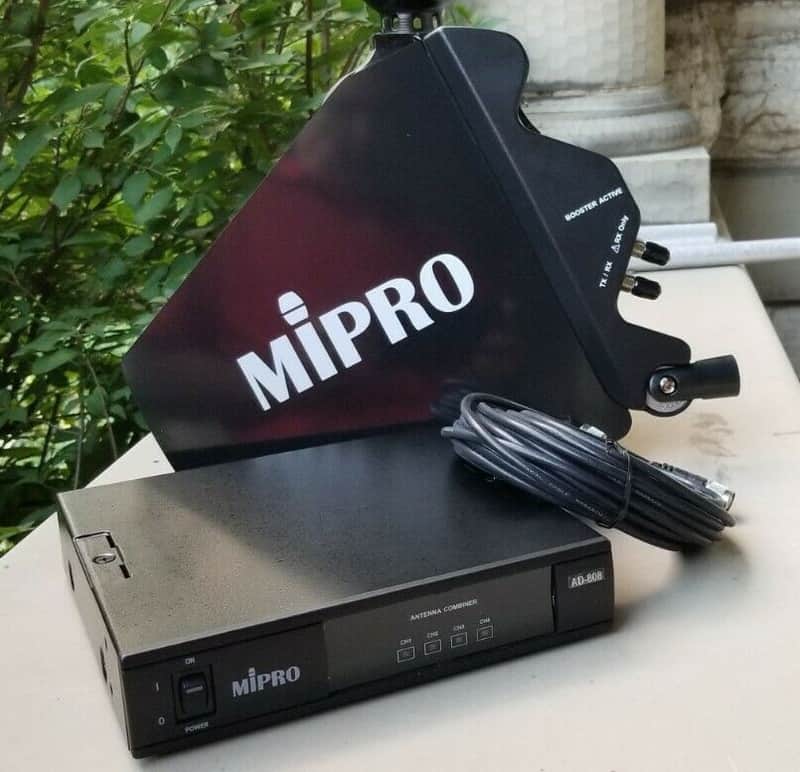

What’s included with this Package:

·Mipro AD-808 Antenna Combiner, Rack Parts and antenna back to front part

ADDAPTERS: ·BNC (from your Shure or Sennheiser) to TNC adapters

·15' TNC Antenna cable to your new paddle

·Mipro AT-90Wa Paddle Antenna

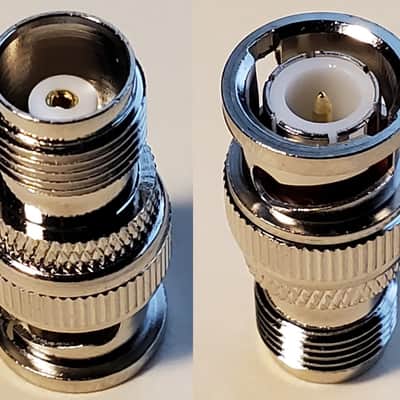

The Mipro systems use the TNC connectors that screw on. Sennheiser and Shure use the BNC style connection. Included in this deal are Four TNC to BNC adapters.

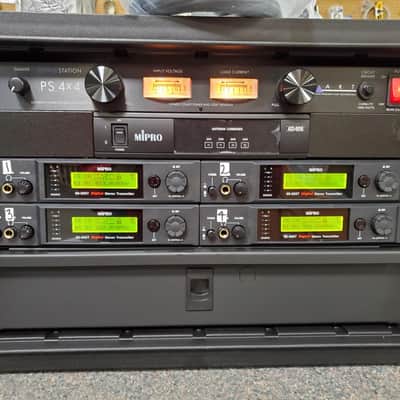

Also included will be the parts to rack mount and back to front antenna extension (no longer comes with the AD808). A 15’ TNC cable to the paddle and the Antenna Paddle.

On my pricing. If you don’t need the paddle and the 32’ cable, we’ll deduct

You can track me at Freq City Sound Cincinnati OH or ineargear.

Here’s the scoop on the AD808 itself.

AD-808 is a half-rack size, 4-input, 1-output professional active antenna combiner. It operates between 470MHz~960MHz band and connects four Wireless In-ear monitoring transmitters to greatly improve RF performance and reduces chances for signal dropouts.

·470~960MHz wideband.

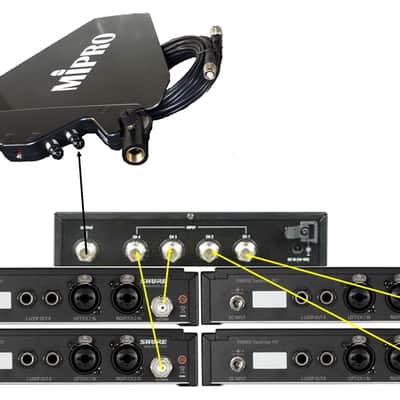

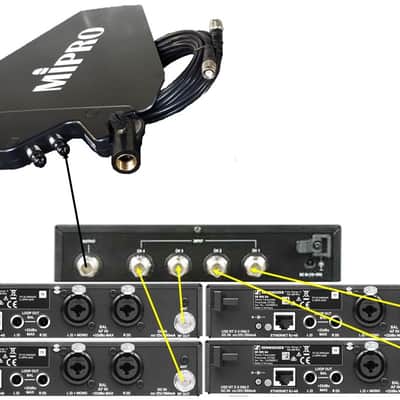

·Up to four wireless transmitters can be combined into one transmitting antenna.

·Input Signal Indicator Threshold when input signal >+6dBm.

·Maximum RF input power +20dBm efficiency (100mW).

·Ideal intermodulation characteristic (full band performance +15dBm two-tone test, 3rd order IM<-57dBc).

Frequency Range 470~960MHz

Full System Gain 0 ± 2dB

VSWR Input / Output <1.5:1

Maximum RF Input Power +20dBm

Input Signal Indicator Threshold +6dBm

Power Consumption 9.12W (12V, 760mA)

Input / Output Connectors TNC female (4-input, 1-output)

Dimensions 8.3(W) x 1.7(H) x 8.1(D)

Weight 2.4lbs
