Møffenzeef - MØFFENMIX *BLACK* - LIMITED EDITION OF 50-Black
This seller has not set a shipping cost for Bulgaria. Please contact them to ask about shipping.
Only 1 left
Grab it before it's gone
Our users rate Reverb

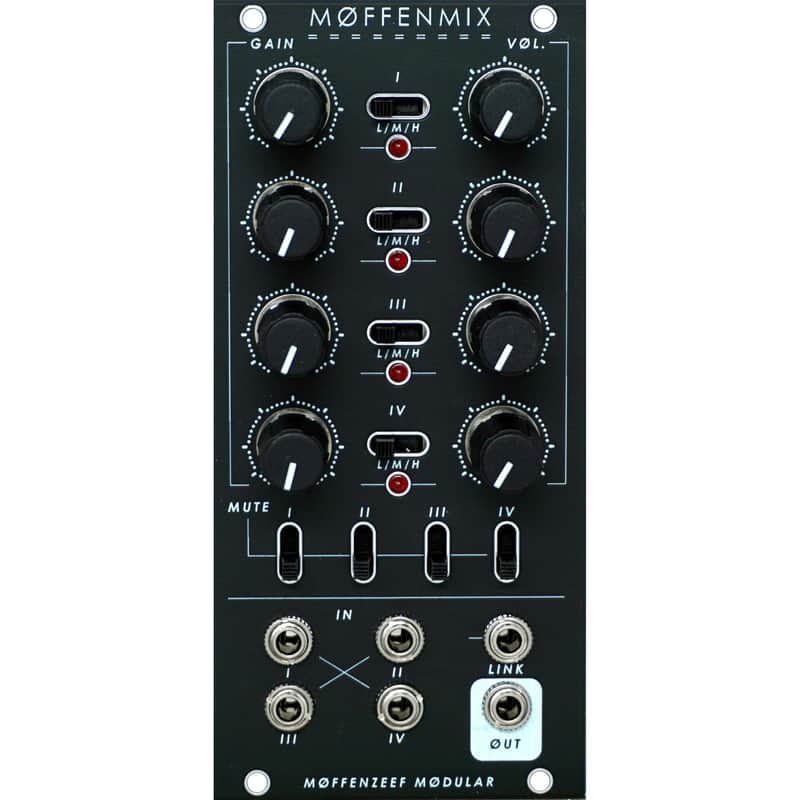

Moffenmix 4-Channel Audio Mixer with Gain Ranges & Overdrive
Moffenmix is a 4-channel audio mixer with extra sauce. Each channel has independent gain with a 3-position switch to set the max gain range (low, medium, high).
Low Gain: Unity to 2x
Medium Gain: 5x Boost for Line Level to Modular or Mild Distortion
High Gain: 100x Massive Overdrive Circuit - No Clipping Diodes!
After the gain stages, each channel has its own mute switch and volume knob. The Link input is a unity gain input to the master output for daisy-chaining multiple Moffenmix or other mixers.
Crank your mix to the max with Moffenmix's aggressive overdrive and distortion capabilities! Bleed & Noise for vintage character.
Note: This mixer has bleed at some settings due to the super high gain circuitry, high frequency content of modular sources, and overall "shitty" engineering practices. Moffenmix was designed to blow out drum tracks and slam them into a mono output with loads of vintage character and charm.
FEATURES:
- GAIN PER CHANNEL
- THREE POSITION GAIN RANGE: LOW (2X) UNITY TO 2X GAIN,
MEDIUM (5X) BOOST FOR LINE LEVEL >MODULAR, HIGH (100X) BLOWN OUT DISTORTION - MUTE PER CHANNEL
- VOLUME PER CHANNEL
- DAISY CHAIN INPUT: TIE MULTIPLE MØFFENMIX MODULES TOGETHER
- AC COUPLED: FOR AUDIO ONLY
- INSANELY HOT OUTPUT: ~20VPP MAX!
SPECS:
WIDTH: 12HP
MOUNTING DEPTH: 20MM
CURRENT DRAW: 60MA +12V
20MA -12V
0MA 5V
INPUT IMPEDANCE: 100KΩ
OUTPUT IMPEDANCE: 1KΩ
*The Noise Source is an authorized Møffenzeef dealer*
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Made In |
|
| Synth Module Function |
|
| Horizontal Pitch |
|
Product safety information may be available here.
