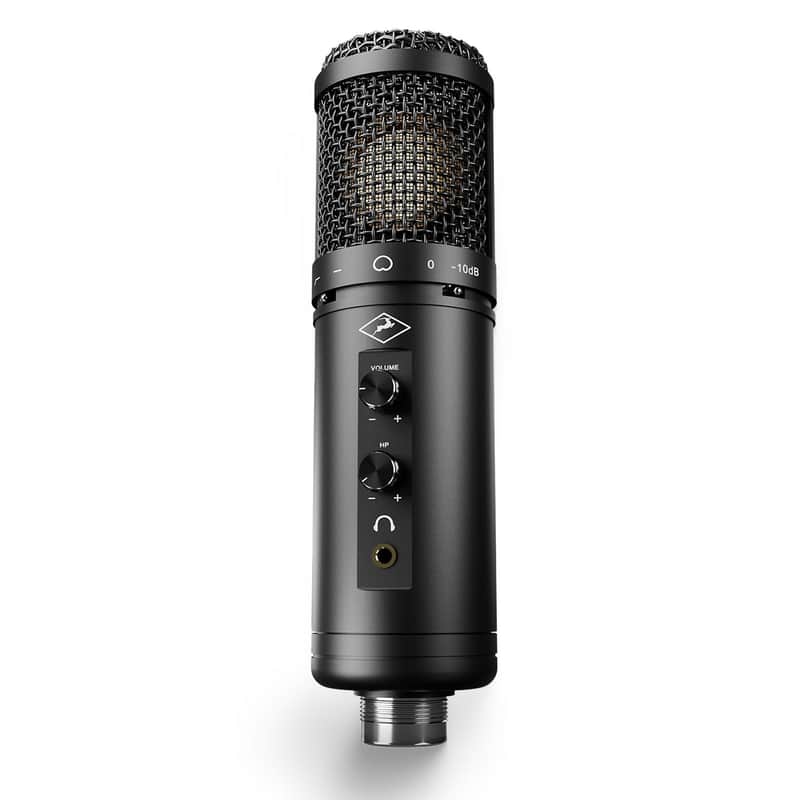

Antelope Audio - Axino Synergy Core is a revolutionary recording system that combines a professional condenser microphone and an audio interface with advanced processing capabilities. With this singular device, artists and producers can record with incredible accuracy and process audio in real-time. It includes a collection of onboard Synergy Core effects and emulations of classic microphones to elevate your sound to a new level. With Antelope Audio’s acclaimed AD/DA conversion and AFC clocking technology, Axino Synergy Core is an essential audio production powerhouse for home studios, streaming channels, and mobile setups.

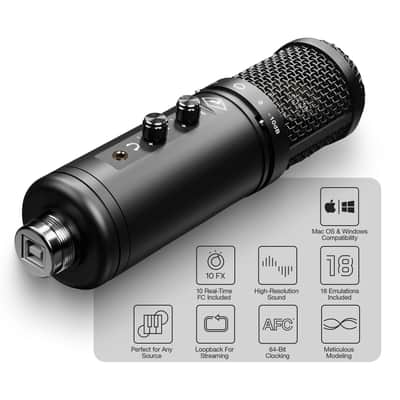

• Compact bus-powered USB device that combines a condenser microphone and an audio interface
• Large diaphragm capsule and gold-sputtered membrane for accurate sound capture
• 24-bit, 192 kHz AD/DA conversion powered by proprietary 64-bit AFC clocking technology
• 18 onboard microphone emulations via Antelope Audio’s unique Modeling Engine
• 10 onboard Synergy Core effects included + over 80 optional expansions available to purchase separately
• Real-time, low latency monitoring and effects processing

CAPSULE

• Capsule: Single Capsule
• Diaphragm: Large diaphragm with gold-sputtered membrane
• Diaphragm diameter: 34mm
• Polar Pattern: Cardioid

SOUND

• Freq. response: 20HZ ~ 20kHZ
• Self-noise: 17 dBA
• Max. SPL: 140dB (<1% THD @ 1kHz)
• Sensitivity: 34±3DB(at 1kHz 0dB=1v/pa)
• Headphone output DAC: High-Performance DAC with 124dB dynamic range
• Microphone ADC: 117dB dynamic range

HARDWARE

• Power Requirements: 5.0/500mA (USB Bus powered)
• USB connector: USB Type-B (USB 2.0 compatible)
• Headphone output: 1/8” (3.5 mm) stereo jack
• Color: Black matte
• Weight (mic body): 0.96 lbs (435 grams)
• Dimensions (mic body): 1.9″ x 2.2″ x 7.4″ (50mm х 56mm х 188mm)

IN THE BOX

• Axino Synergy Core
• Table stand
• Shockmount
• USB cable
• Quick start guide

Features

Sound Capture

• Large diaphragm capsule with gold-sputtered membrane and cardioid pickup pattern

• Class-leading 24-bit/192kHz AD/DA conversion with up to 124dB of headroom

• 64-bit AFC clocking technology delivering exceptional level of sonic detail

Connectivity & Controls

• Bus-powered USB 2.0 port carrying up to 4 input and 4 output channels in any popular DAW with custom macOS & Windows drivers

• Headphone output for direct monitoring, powered by a high-performance DAC chip

• Physical controls for mic gain and headphone volume

• -10dB pad, and high-pass filter hardware switches

Workflow-Enhancing Features

• Bus-powered microphone - no microphone preamplifier and audio interface required, powered by the USB connection

• <1ms latency for real-time monitoring with microphone emulations and Synergy Core effects

• Simplified I/O routing with pre-configured settings, allowing seamless recording and playback

• Quick access to presets complete with signal routing, level adjustments, and effects settings

• Loopback function for streaming

Real-Time Processing

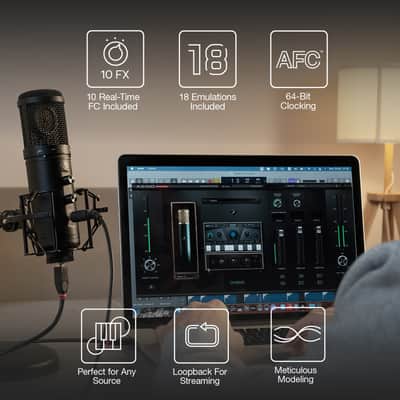

• Onboard Modeling Engine for real-time microphone emulations

• 18 iconic microphone emulations included

• Onboard Synergy Core platform powered by DSP & FPGA chips

• 67 Synergy Core effects included
