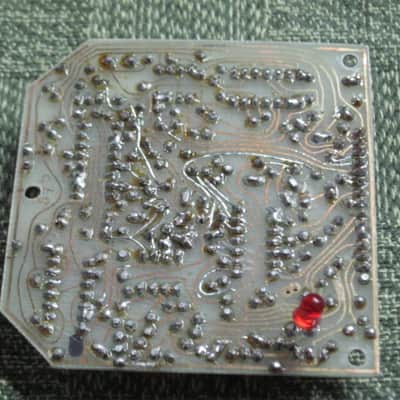

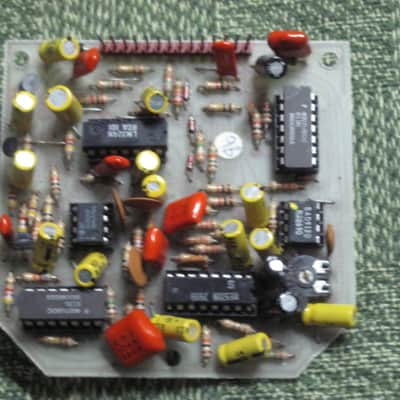

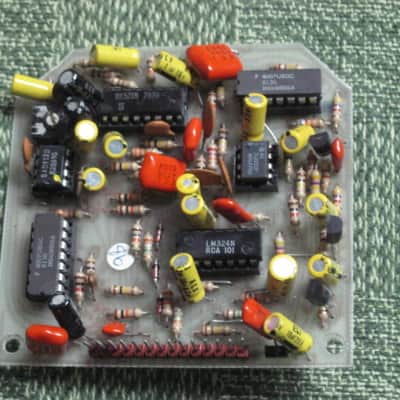

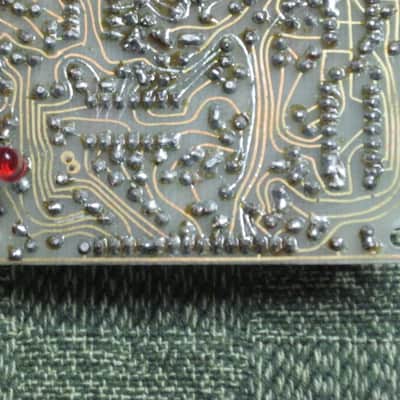

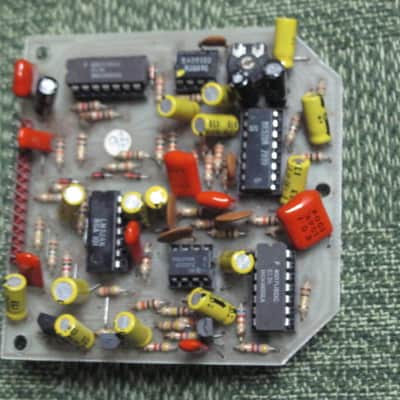

for parts / for repair DOD circuit board with parts on it for 575-A Flanger (Analog Flanger) NO casing, NO bottom plate, NO controls, NO switch, NO knobs, NO jacks, NO wires, NO screws (early to mid 1980s)

Up for grabs is: for parts / for repair DOD circuit board with parts on it for early to mid 1980s 575-A Flanger (Analog Flanger) NO casing, NO bottom plate, NO controls, NO switch, NO knobs, NO jacks, NO wires, NO screws.

When this circuit board was on a used DOD 575-5 Flanger -- it power on (the LED lit up) and the ON / OFF switch worked - but there was no flange effect and it only made a clean guitar sound (no matter what position the internal trimmer was set). Also all of the chips were pressed down and they are on the circiut board in the correct direction.

Also - there does not look like anything was burned out on the crcuit board.

And when it was on the pedal - all of the wires were connected properly.

I am not the orignal owner of the pedal that this circuit board came off of. The issue with it happned before I got the pedal. Therefore - I'm not sure the reason why this happened / was happening.

I'm not an electrician or and I am not a tech - I cannot investigate further (like to check f there is a defective part, to check where there might be a short - or anything like that).

For me - it's not worth it to have it check out by a tech, etc.

Therefore - I'm selling this circuit board FOR PARTS / FOR REPAIR. Please NO Returns. Please ask questions first.

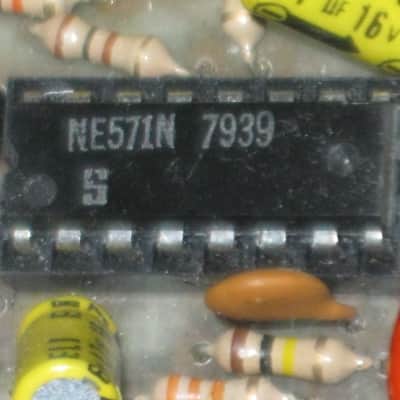

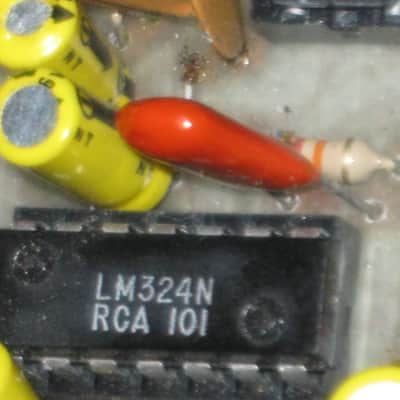

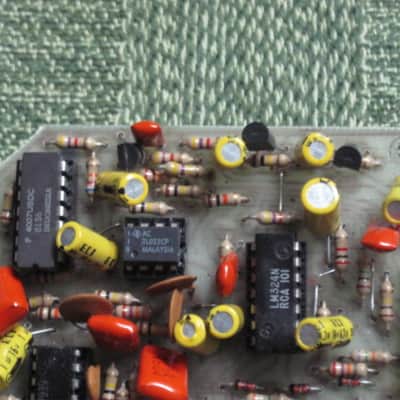

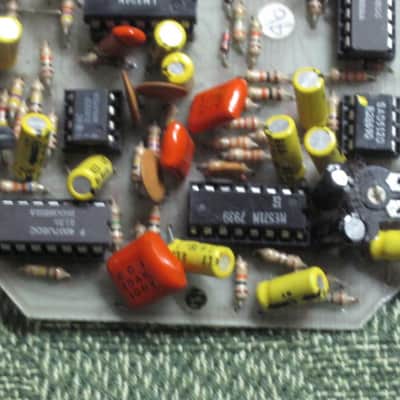

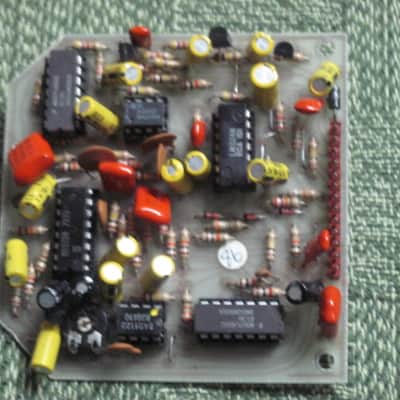

It has SIX chips - I took close up pictures of the chips (some or all of these chips are NO longer in production and are desirable). SEE pictures # 17 to # 22.

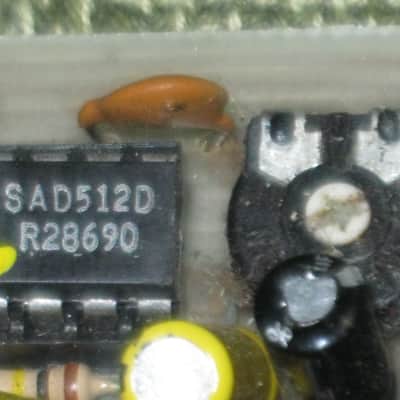

It has an intermal trimmer. Picture # 17 is a close-up picture of it. It looks like a black tire.

And this circuit board has many other older 1980s era components - which are also desireable.

Since I decided to part out the DOD 575-A Flanger pedal - also I have the double 9V battery clip listed in a separate REVERB listing. Here's the link for it:

• https://reverb.com/item/81452659-used-1980s-genuine-dod-double-9v-battery-clip-for-performer-series-pedals-no-pedals-inlcuded-no-other-parts-included-they-work-fine

And I plan to list the other parts of the DOD 575-A pedal later this week.

---

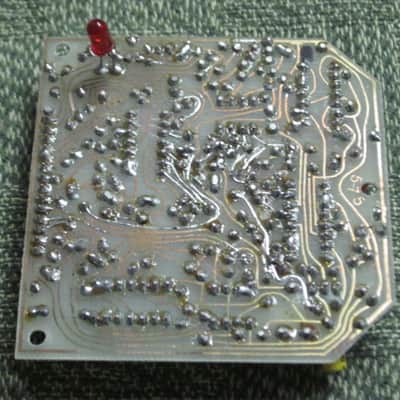

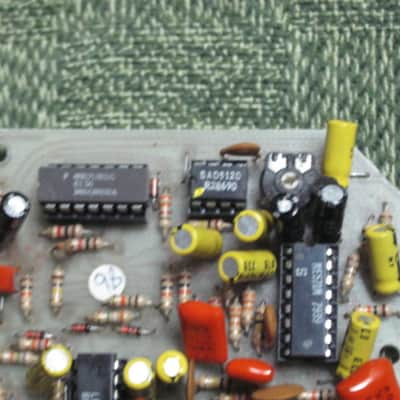

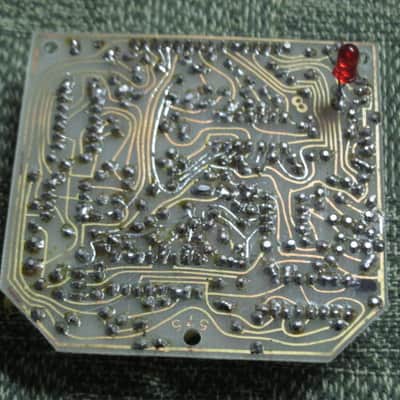

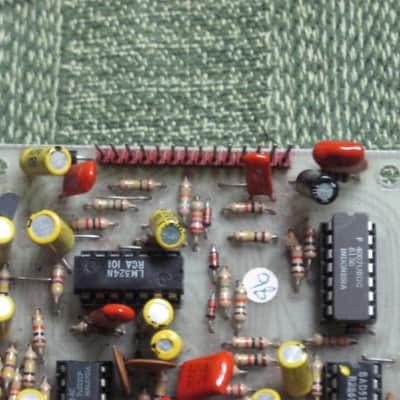

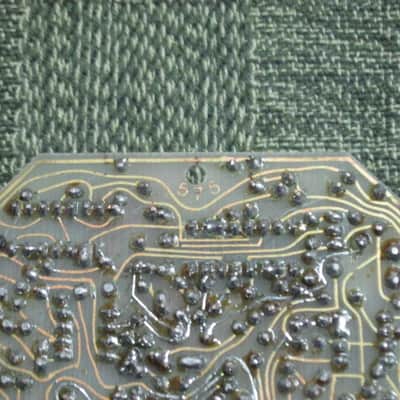

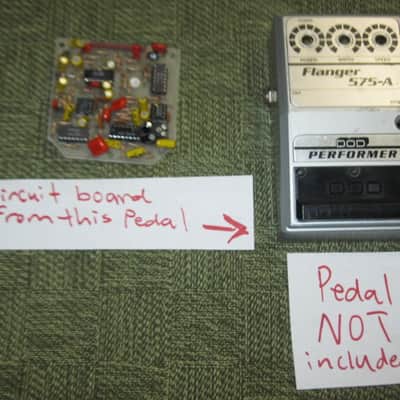

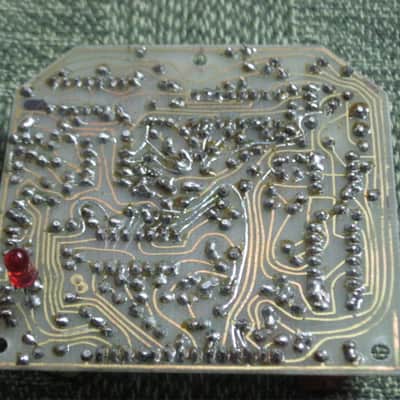

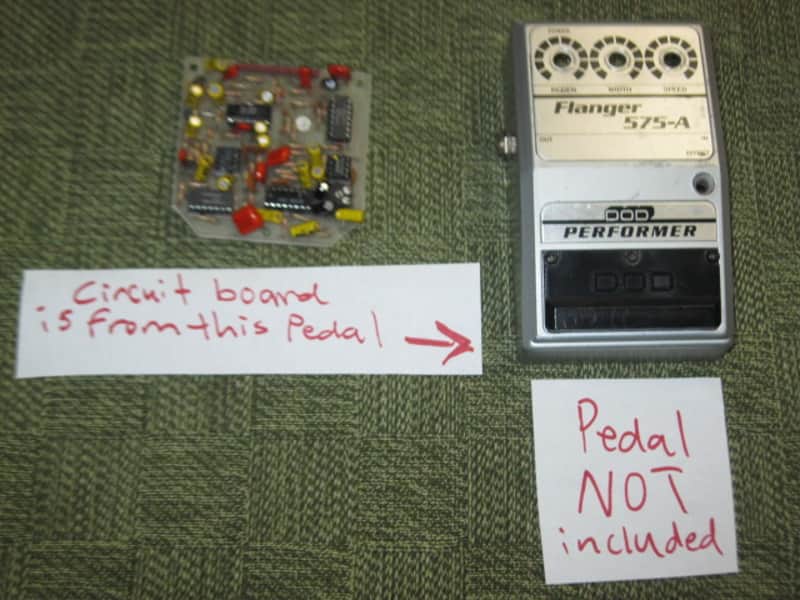

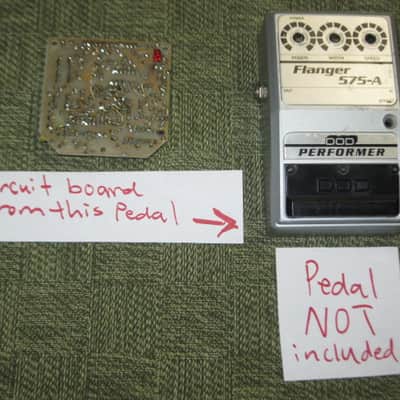

I took several pictures this circuit board and the parts on it. And there are some cloeu up pictures of the chips. The DOD 575-A pedal shown in pictures # 1 and # 2 is shown as a reference.

NOTE: There may be a few minor imperfections that I overlooked. There maybe a few minor imperfections that can be seen in person that do not appear in the pictures. Also - there are some imperfections (glares, reflections. dust specks) that show up in the pictures that are not that visible in person.

=====

• Comes from a smoke free and pet free environment.
• Feel free to ask questions.
• I will discount shipping on combined purchases.

• USA Shipping is with USPS (with tracking).
• International Shipping is with First Class Mail International (with tracking).
