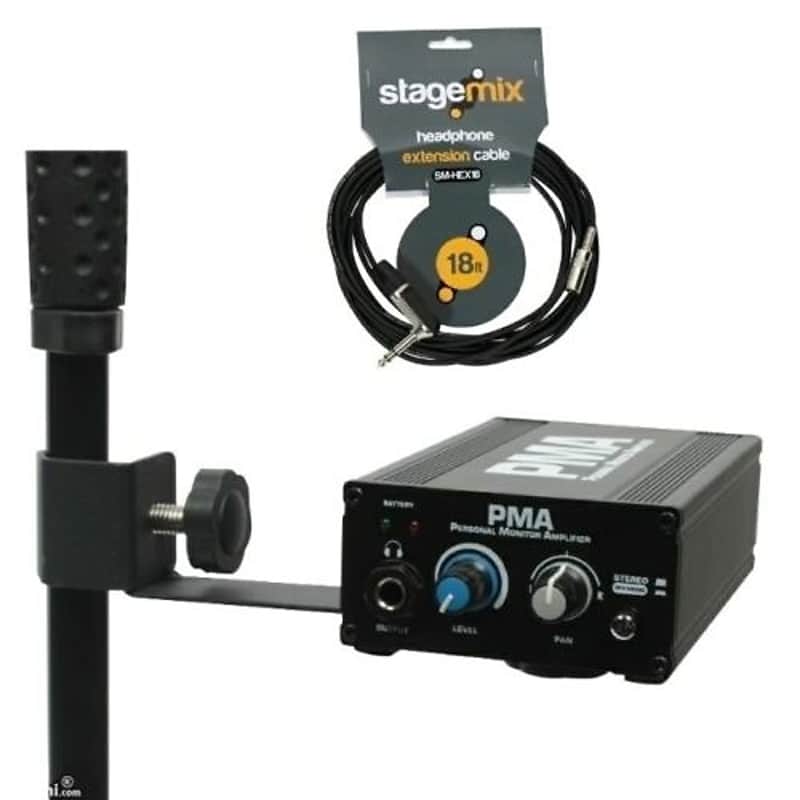

The EliteCore PMA is a high-powered stereo or mix-mono personal monitor headphone ampdesigned to provide loud and clear monitoring through headphones or earphones.Signals from AUX outs are connected to the inputs of the PMA via combo XLR/TRSjacks. Headphones or earphones are powered by a strong 50mW per channelamplifier. This package includes the SA001 Mic Stand Adapter that allows the PMA to conveniently mount to the side of a mic stand or the PMA can screw onto a standard top mic stand threads.Powered by the included 9V adapter, or by a 9V battery. (Please note, mic stand in picture NOT included)

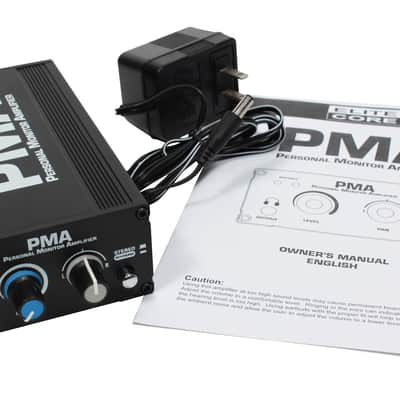

Package Includes:
- EC-PMA Headphone Amp
- 9V adapter
- SA001 Stand Adapter
- EC-HEX18Extension Cable 18' (1/4" TRS R/A to 1/8" 3.5mm Female)
- Manual
- 2 Direct Symmetric Combo XLR/TRS Inputs
- Stereo or Mix-Mono Mode Selection

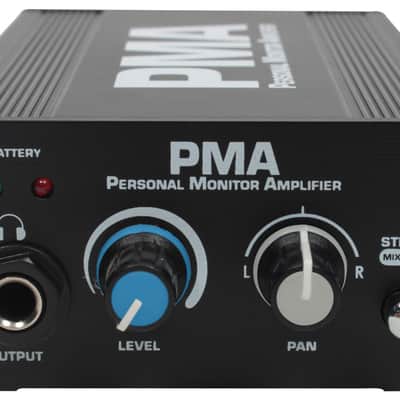

- Level & Pan Controls
- Sturdy Aluminum Case
- 5/8" - 27 internal threads on bottom - suitable for mounting on standard microphone stand or SA001 stand adapter
- Operates with 9V Battery or included AC/DC adapter
Spec:
Dimensions: 170x93x47mm
Net Weight: 0.4kg
InputJacks: 2 x Combo XLR/TRS
OutputJack: 1/4" Stereo
FrequencyResponse: 30Hz-20kHz ±2dB
MinHeadphone Impedance: 16 ohms per side
InputImpedance: 15 Kohm
NominalInput Level: 0dBV
MaximumInput Level: +4dBV
Limit InputLevel: +5dB
MaximumOutput Power (into 20ohm): 50mW per channel
MaximumOperating Current: 40mA
PowerSupply: 9V Battery
DC InputSocket: DC 9V (PIN - / RING +)
