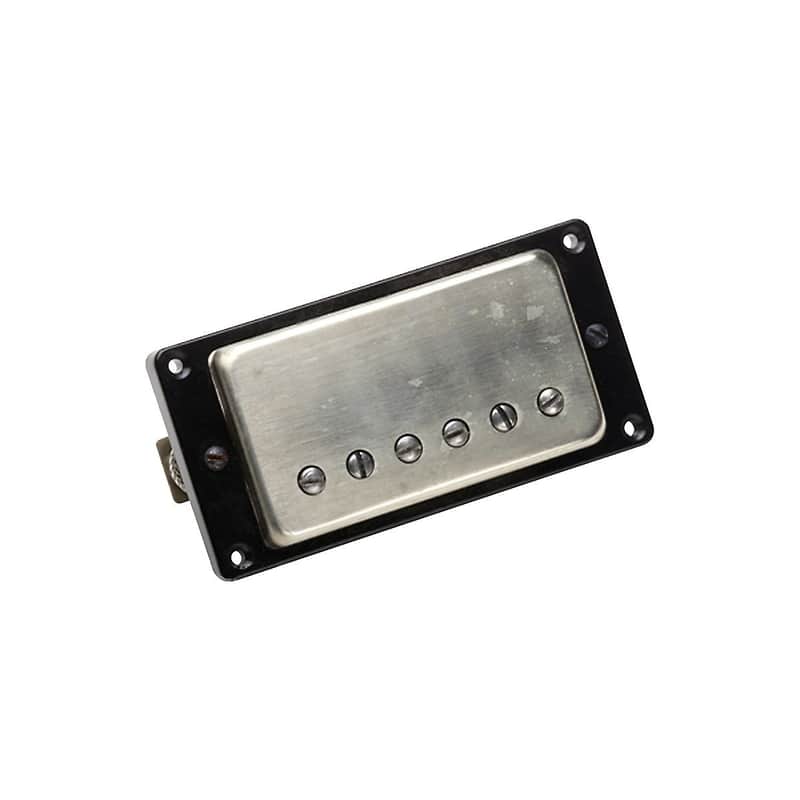

Seymour Duncan Antiquity Humbucker Bridge - 11014-05

• Specifications -
• Width - 1.494
• Length - 2.750
• Max height with leg - 1.095
• Mounting ring width - 1.756

Product Description Like the neck position model, the bridge position humbucker is a faithful replica of the great sounding humbuckers that Seth E. Lover designed in 1955. The pickup comes with slight variations in DC resistance, just like the old ones. Seymour Duncan decided to wind the bridge pickup a little hotter and better balanced for its position. The mounting ring is slightly higher for the increased pickup height. The pickup is not wax potted to retain the sound and appearance of the originals. Again, each pickup is built by hand in the "Antiquity" room and every magnet and bottom plate are signed to guarantee that you are getting an original Seymour W. Duncan Antiquity. Hookup wire includes the classic braided "push back" cloth braid wire.

Mounting ring length - 3.537 Mounting ring max height - 0.420 Minimal height - 0.350 Adjustable pole piece length - 0.750 Height adj. Screw height - 1.250 Magnet calibration - s-adj. Side Magnet gauss - 15-20 gauss DC ohms - 8.52k Inductance - 5.12 henries Q - 2.38
