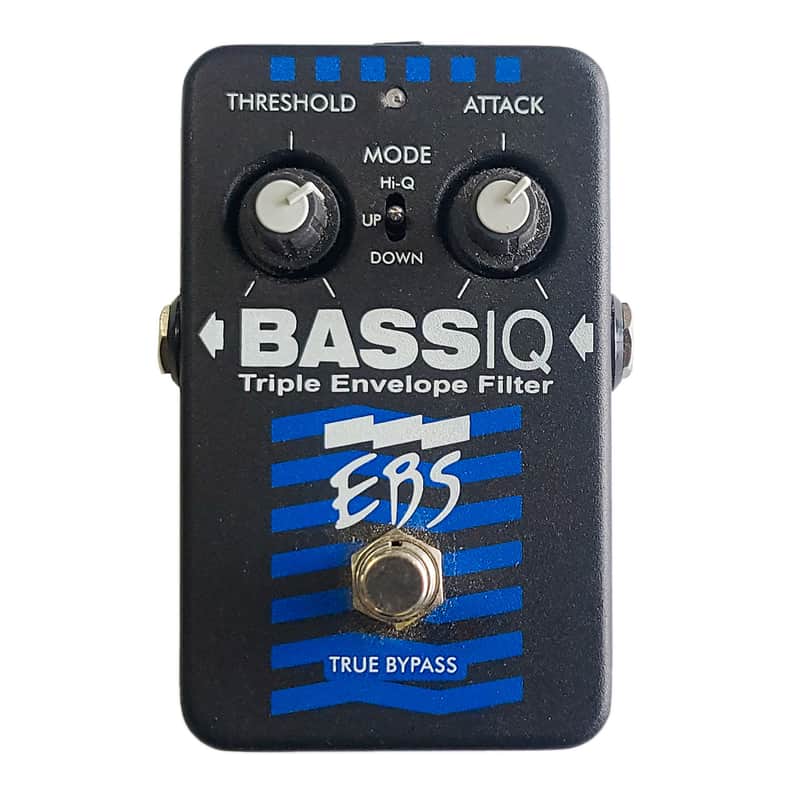

EBS BASS IQ TRIPLE ENVELOPE FILTER The EBS BassIQ is an analog envelope filter pedal that is triggered by the notes you play. The results are the funkiest and most responsive sounds in a stomp box.

Auto-Wah or Funkadelic Sounds

The pedal achieves sounds ranging from the classic auto-wah to your own unique space-bass or ”Funkadelic” sound. It features controls for threshold and attack, and runs in three different modes, Hi-Q, Up and Down. The 2008 edition uses true bypass technique.

Improvements with the new edition

3 dB higher headroom

Higher sensitivity - easier to dial-in

New analog circuitry with higher dynamics and lower noise.

Mechanical True Bypass switching

Technical Specifications

Nominal Input Level - 8 dBv
Input Impedance 700 kohms
Bypass Bandwidth +0 / -3 dB 20 - 20k Hz
Filter Range 60 - 8k Hz
Filter Q min / max 3 / 10
Filter Mode Down / Up / Up-HiQ
Threshold -50 - +6 dBv
Attack Time (80%) 50 ms - 2 s
Dimensions (L x W x H) 2.8 x 4.5 x 1.4” (70 x 115 x 35 mm)
Weight 480g (1.07 lb.)
Bypass True Bypass
Power Requirements 9 V DC Regulated, 18 mA max
