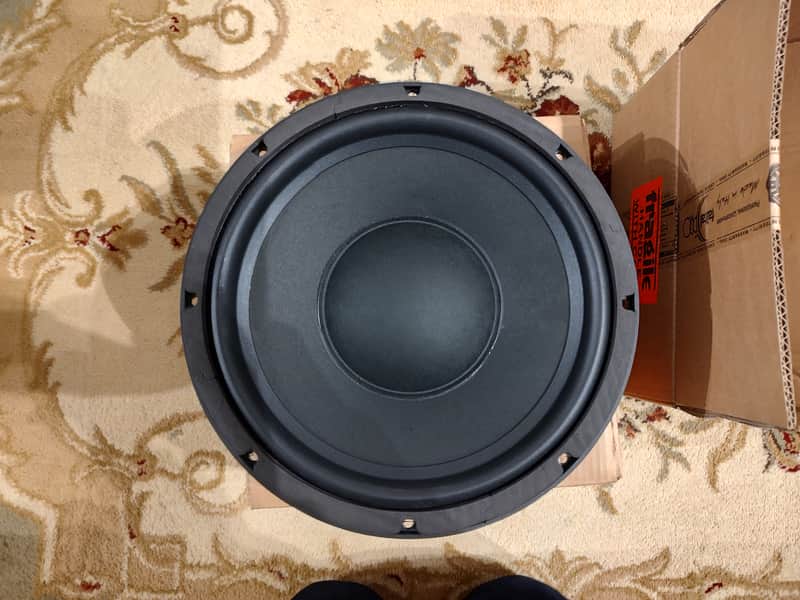

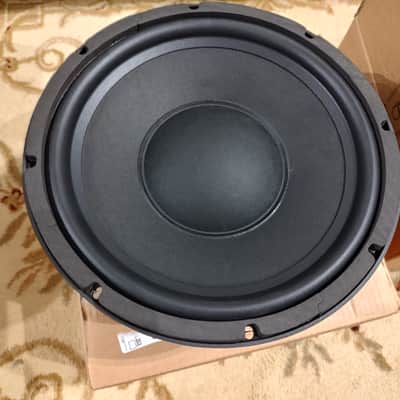

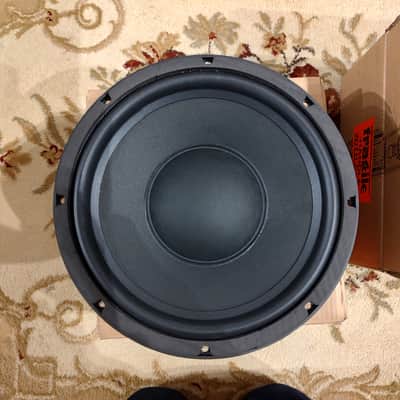

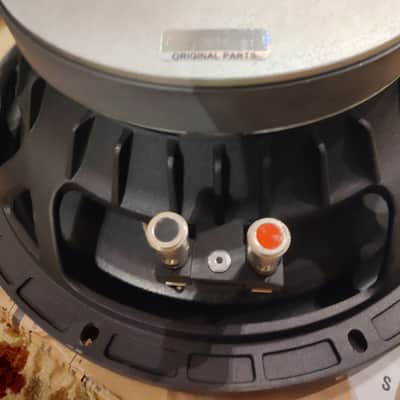

Faital Pro 12" Woofer 12RS550 2023 - Matte Black
This seller has not set a shipping cost for Slovakia. Please contact them to ask about shipping.
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb

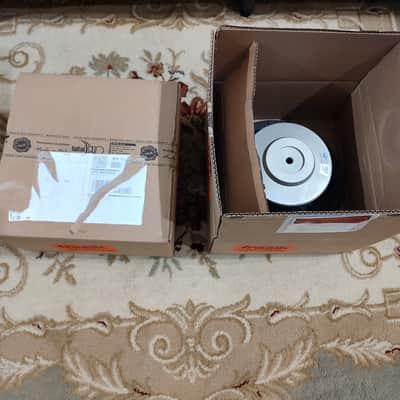

Price is per speaker! Brand new 2 for sale. Box is only open to show condition of speaker. 2nd box unopened from factory. Message me for any questions.
PWOOFER MODEL 12RS550
Specifications
Nominal Basket Diameter 12" / 300mm
Impedance 8 ohms
AES Power Rating 500 Watts
Program Power 1,000 Watts
Frequency Response 45Hz - 2.5kHz
Sensitivity (1W/1m) 93dB SPL
Voice Coil Diameter 3" / 77mm
Voice Coil Length 22 mm
Air Gap Height 10.5 mm
X Damage 20 mm
Flux Density 1.2 T
BL Factor 20.5 N/A
Mounting Information
Overall Diameter 12.44" / 316mm
Bolt Circle Diameter 11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount 11.1" / 282mm
No. Of Mounting Holes 8
Overall Depth 5.71" / 145.1mm
Flange & gasket Thickness 0.67" / 17.1mm
Net Weight 17.9 lb. / 8.1 kg.
Shipping Weight 19.4 lb. / 8.8 kg.
Materials
Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Rubber
Surround Shape Half Roll
Former Material Glass Fiber
Voice Coil Copper
Magnet Ferrite
Thiele-Small Parameters
Resonant Frequency (fs) 42 Hz
Impedance (Re) 5.1 ohms
Coil Inductance (Le) 1.5 mH
Mechanical Q (Qms) 6.9
Electrical Factor (Qes) .39
Total Q (Qts) .37
Comp. Equivelant Vol. (Vas) 1.54 ft3 / 43.5 Liters
Voice Coil Overhang (Xmax) 9.25 mm
Surface Area of Cone (Sd)m2 0.05128m2
Reference Efficiency 0.63%
Diaphragm Mass (Mms) 123 Grams
Mechanical Compliance (Cms) .12 mm/N
Mechanical Resistance (Rms) 4.77 Kg/s
EBP 108
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
