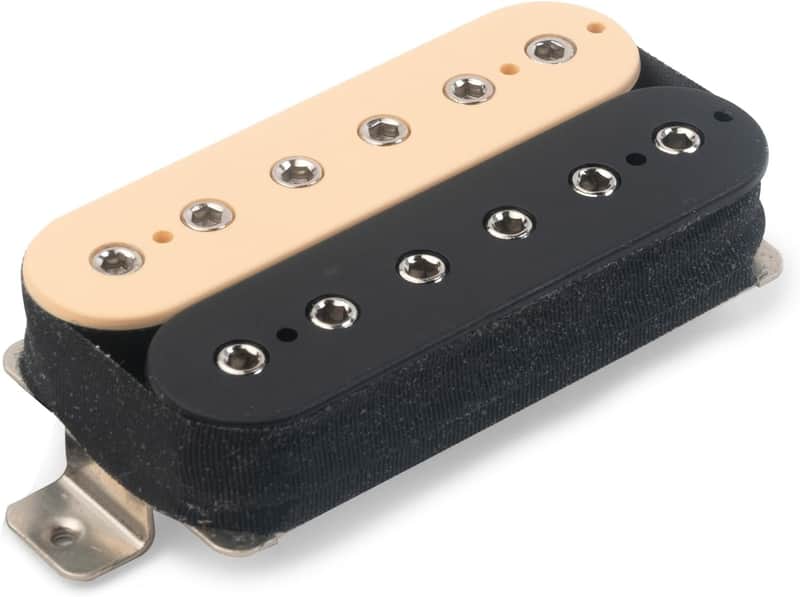

StewMac 80s Shred Humbucker Pickup, Bridge Position, Zebra Exposed Coils

StewMac 80s Shred Humbucker Pickups

Love Alnico tone but need more power? The 80s Shred has all of the clarity and balance you want, but with the output to drive your amp hard.

More than just high outputThe players of the 1980s needed a powerful pickup that also had the clarity to showcase their lightning fast playing. Some high output pickups sacrifice tone for power, resulting in a harsh, brittle sound. Once the high output design was modded with a traditional Alnico 5 magnet, it was the perfect combination of rich tone and amp punishing power.

The 80s Shred's 12 hex socket pole pieces are adjustable, giving you precise control over the volume of each string. The Alnico 5 magnet produces a clear tone with more pronounced highs and a tighter low end. It's the ideal balance for beautiful clean tones and overdriven sounds that don't get muddy. The versatile 4-conductor wiring allows for split and out of phase tones as well.

Originally designed for the bridge position, you can also use it in the neck if you're using a high-headroom amp.

Specifications

High output humbucker pickup

Polepiece spread: 1.97" (50mm)

Poly-coated 43 AWG coil wire

Potted to suppress noise

Alnico 5 magnet

Four-conductor insulated lead wire


Output

13K ohm range


Dimensions

Length including mounting tabs: 3.307" (84mm)

Length not including mounting tabs: 2.750" (70mm)

Mounting screw spacing: 3.007" (76.4mm)


Height adjustment screws, springs, and wiring diagrams included.
