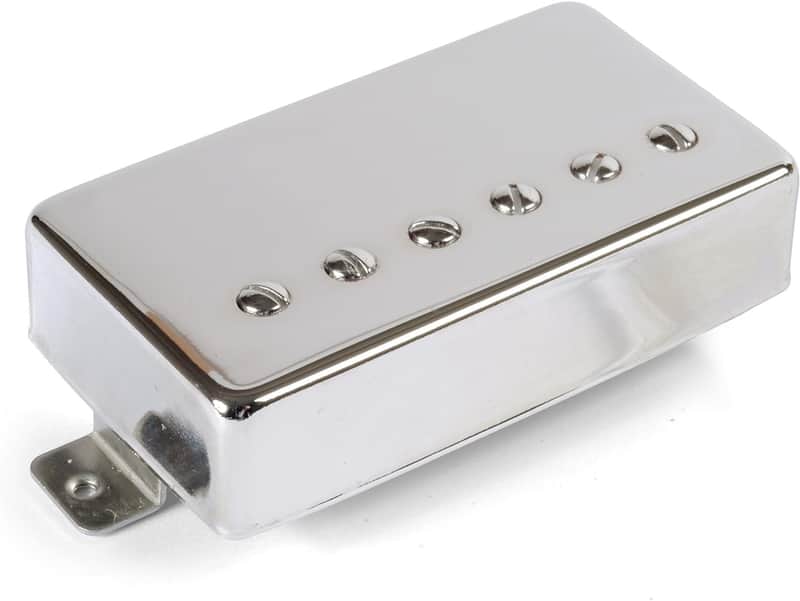

StewMac Parsons Street Overwound Humbucker Pickup, Bridge Position, Alnico 5, Nickel Cover

Parson street overwound humbuckers

Get more power to overdrive your amp with these overwound versions of our Parsons Street Humbuckers. It's a P.A.F. with a stronger punch!StewMac Parsons Street Overwound Humbucker Pickups

True vintage sound with more output

Sometimes those 1950s PAFs were accidentally overwound at the factory, and when you find one of those rare ones, it has a little extra bite to its sound. We keep winding these hot versions to capture that tone until we get a DC resistance in the 9.5K ohm range.

Specifications

Vintage medium output overwound humbucker

Nickel-silver cover for tone transparency

Original 1.970" (50mm) polepiece spread

Plain enameled 42 AWG coil wire

Unpotted like the originals

Vintage construction—black paper coil tape, wood spacer, nickel-silver baseplate

Choice of Alnico 2 or Alnico 5 magnet

Single-conductor braided shield lead wires


Not only a bridge pickup! These sound great in the neck position with a high output bridge pickup.

Your choice of original-style magnets:

Alnico 2 for warm tone with smooth highs and a soft bottom response.

Alnico 5 produces a clear tone with more pronounced highs and a tighter low end.


(Original P.A.F.s contained Alnico 2, 3 and 5 magnets at various times.)

Output

9.5K ohm range


Dimensions

Length including mounting tabs: 3.307" (84mm)

Length not including mounting tabs: 2.750" (70mm)

Mounting screw spacing: 3.007" (76.4mm)

Width: 1.42" (36mm)

Height including mounting tabs: 1.130" (28.7mm)


Height adjustment screws, springs and wiring diagrams included.

Mounting rings and mounting ring screws are available separately.
