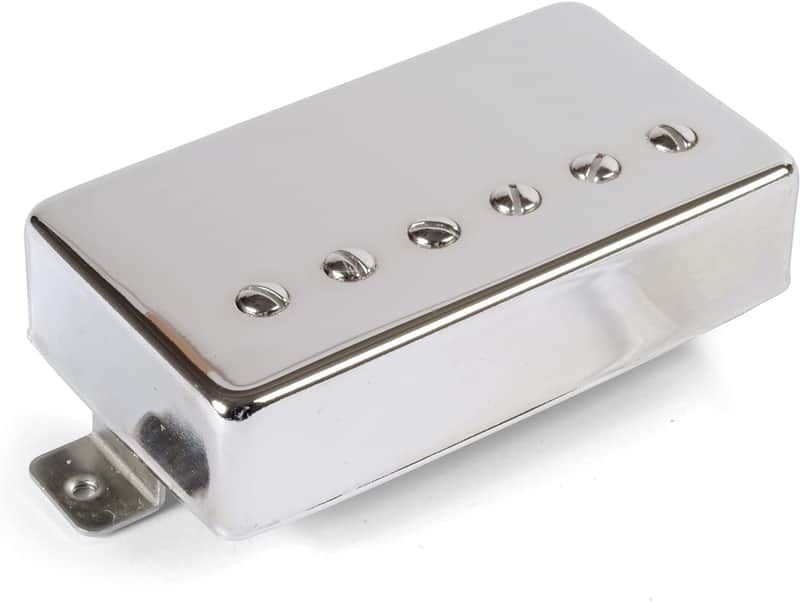

StewMac Parsons Street Humbucker Pickups, Bridge Position, Alnico 2, Nickel Cover

StewMac Parsons Street Humbucker Pickups

Straight-up raw vintage tone! Closely modeled after outstanding original P.A.F.s, these humbuckers capture the tone that changed music forever.

Just like the originals, the slug coil has more windings than the polepiece coil, and both coils are unpotted. Old P.A.F.s weren't made in separate neck and bridge-position models, and their DC resistance varied from 7-9K ohms. We give you a choice: Parsons Street neck position pickups are wound to mid 7K range, and bridge position models to low 8K range.

Specs

Vintage medium output humbucker

Nickel-silver cover for tone transparency

Original 1.970" (50mm) polepiece spread (neck and bridge)

Plain enameled 42 AWG coil wire

Unpotted like the originals

Vintage construction—black paper coil tape, wood spacer, nickel-silver baseplate

Choice of Alnico 2 or Alnico 5 magnet

Single-conductor braided shield lead wires


Your choice of original-style magnets:

Alnico 2 for warm tone with smooth highs and a soft bottom response.

Alnico 5 produces a clear tone with more pronounced highs and a tighter low end.


(Original P.A.F.s contained Alnico 2, 3 and 5 magnets at various times.)

Output

Neck positon: 7K ohm range

Bridge position: 8K ohm range


Dimensions

Length including mouting tabs: 3.307" (84mm)

Length not including mouting tabs: 2.750" (70mm)

Mounting screw spacing: 3.007" (76.4mm)

Width: 1.41" (36mm)

Height including mounting tabs: 1.130" (28.7mm)


Height adjustment screws, springs and wiring diagrams included.
