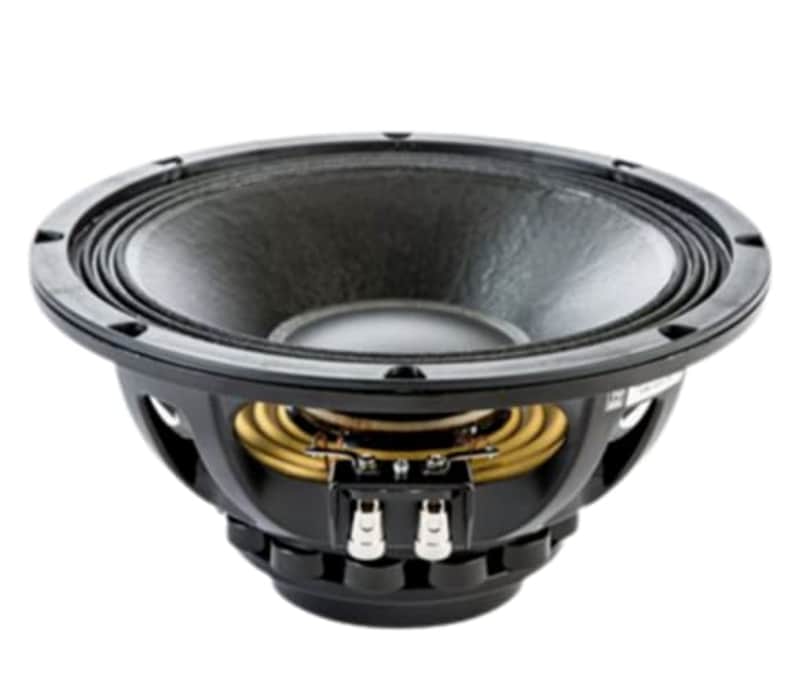

18 Sound’s 10NW750 neodymium low frequency transducer is a state-of-the-art 10-inch woofer that combines excellent linearity with high power handling capabilities (900 W) and reduced power compression.
- The external neodymium magnet assembly assures high flux concentration and excellent heat exchange. The 75mm (3 in) inside outside aluminum voice coil employs Interleaved Sandwich Voice coil (ISV) technology.
- A sophisticated distortion reduction system has been implemented using a demodulating ring for flux modulation cancellation related to voice coil excursion, together with a copper ring for the reduction of intermodulation distortion.
- The cone is treated against extremely aggressive environment conditions.
The compact size makes the 10NW750 an ideal choice for high performance line arrays and compact two-way systems.
Features
- 94 dB SPL 1W@1m average sensitivity
- 900 W program power handling
- 75 mm (3 in) Interleaved Sandwich Aluminum Voice Coil (ISV)
- External Neodymium magnet assembly
- Single Demodulating Ring (SDR) for lower distortion and maximum sound clarity
- Weather protected cone and coated plates
- Suitable for high performance line arrays and compact two-way systems
Specifications
- Nominal Diameter: 260 mm ( in)
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 6.9 Ω
- Nominal Power Handling: 450 W
- Continuous Power Handling: 900 W
- Sensitivity: 94.0 dB
- Frequency Range: 50 - 5000 Hz
- Voice Coil Diameter: 75 mm (3.0 in)
- Winding Material: aluminum
