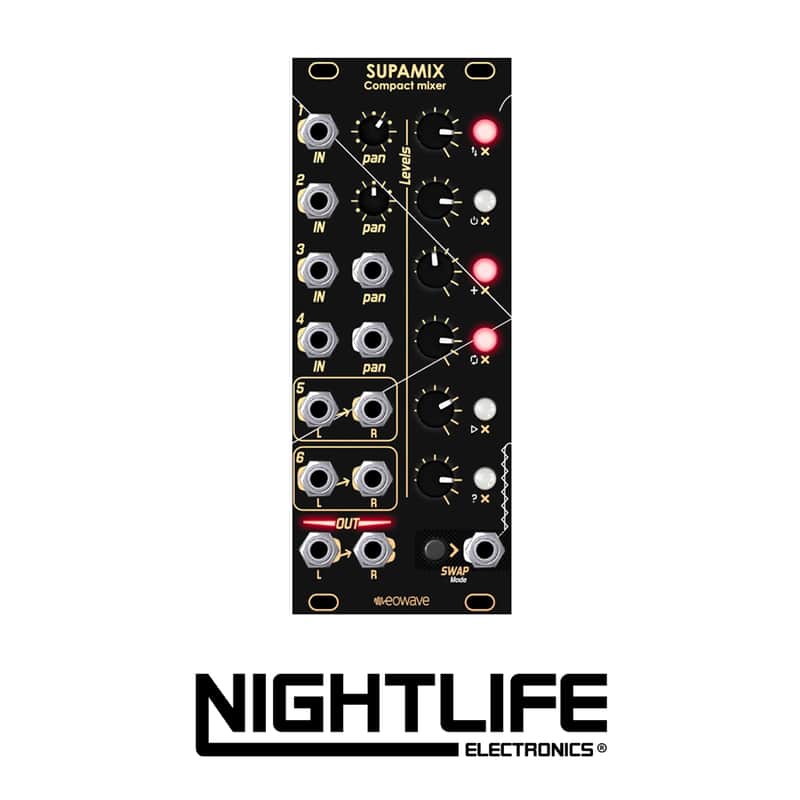

Eowave Supamix

Supamix is a compact Eurorack mixer designed to fuel your sonic adventures. This versatile module as 6 channels and a unique mute automation engine into 10HP, making it perfect for live performances, space-conscious setups, and creative mixing.

• Width: 10HP
• Power: 80mA @ +12V / 40mA @ -12V

Features

Mix with Precision and Expression:

• Dedicated Pan Controls: Craft your stereo image with 2 individual pan knobs for manual placement.
• Dynamic Panning: 2 CV-controlled pan inputs let you add movement and dynamism to your sources.
• Seamless Integration: Stereo inputs with dedicated gain allow effortless connection of stereo modules.
• Dedicated Mute Buttons: Take instant control with individual mute buttons, featuring a freeze function for sustained muting when using the swap engine.

Automate Your Mutes with Creativity: Supamix feature a unique swap engine made to control the mutes states manually or via cv to Build Evolving Patches.12 modes of for controlling your mutes are available:

• 1A: Trigg Invert: Instantly flip mute states with a trigger.
• 1B: Gate Invert: momentary flip mute states with a gate.
• 2A: Turn Off: Momentarily silence all channels with a gate
• 2B: Wave On: Progressively unmute channels as a CV rises.
• 3A: Binary Counter: trigger to increment a 6-bit binary sequence, turning mutes on/off.
• 3B: CV to Binary: Transform a CV signal into a 6-bit binary pattern, precisely controlling the state of each mute based on the CV value.
• 4A: Trig Rotate: Shift mute positions with a trigger. each trig shift the mute position one step further.
• 4B: CV Rotate: Shift mute positions with CV control. at 0V the mute are in their original position, at 5v mute will be shifted 6 position forward.
• 5A: Trig Sequencer: Control a step sequencer who invert the mute state where the playhead is. each trig will move the playhead one step further
• 5B: CV Sequencer: Control a step sequencer who invert the mute state where the playhead is. at 0v, the playhead is on the first mute, at 5 V on the 6th
• 6A: Randomize: Shake things up with a trigger that scrambles all mute states.
• 6B: Random solo:each trig will turn off all the mute exept one selected randomly

Beyond the Modes:

• Freeze & Override: if you long press one off the mute, it will be freezed on bypassing the swap function on this track
• Module Expansion: Connect Supamix to the "O" line/phone output module for additional functionality (sold separately).

More Than Just Mixing:

• Subtle Saturation: Crank the level pots for a hint of distortion to add bite to your sound.
