Tannoy VX12-WH Dual Concentric Full Range Loudspeaker for Portable and Installation Applications (White) - 12" (DEMO)
This seller has not set a shipping cost for Luxembourg. Please contact them to ask about shipping.
Only 1 left
Grab it before it's gone
Our users rate Reverb
Shipping Policy: Please note that we currently ship within Canada only. Offers and orders from outside Canada will not be accepted.

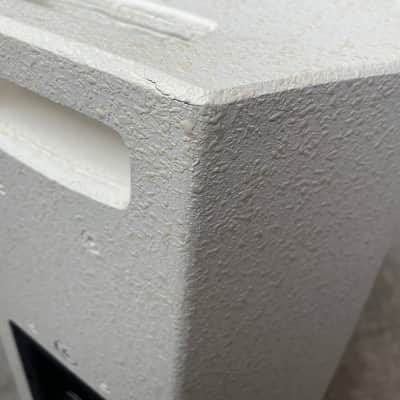

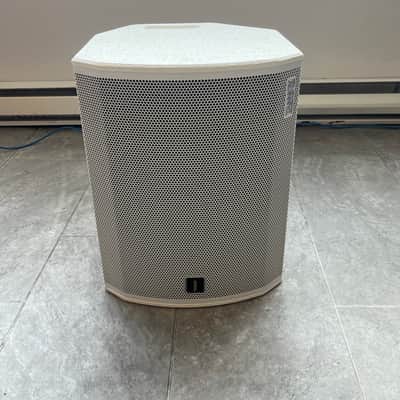

** COMES WITH BOX AND EVERYTHING IN IT. SMALL PHYSICAL DAMAGE (SEE PICTURES) **
The VX 12-WH Dual Concentric Full Range Loudspeaker boasts an exceptional performance-to-size ratio. VX 12-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VX 12-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
DUAL CONCENTRIC DRIVER
The 800-Watt 305 mm (12") version of TANNOY’s VX Series exclusive point source loudspeakers, VX 12-WH’s Dual Concentric driver ensures high power output with high sensitivity and exceptional efficiency. VX 12-WH delivers precise 90º dispersion for optimum coverage, exceptional forward gain plus the added benefit of improved low-mid extension from the twin driver configuration.
PERFORMANCE APPLICATIONS
VX 12-WH’s trapezoidal enclosure design provides a multitude of placement options including: FOH, floor monitor, delay, and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. Mounting options include horizontal and vertical mounting yokes (available separately), an Omnimount for wall and ceiling installation, and items to facilitate pole-mounting. All hardware has been tested and certified for a greater than 5:1 safety ratio – giving installers complete peace of mind.
SPECIFICATIONS
System
Frequency response80 Hz - 25 kHz ±3 dB
60 Hz - 30 kHz -10 dB
75° conical @ -6 dB point
Directivity factor (Q)10.1
Directivity index (DI)10
Power handling (IEC)
Passive350 W continuous, 1,400 W peak
Bi-ampLF: 350 W continuous, 1,400 W peak
HF: 80 W continuous, 320 W peak
97 dB (1 W @ 1 m)
Maximum SPL
Passive123 dB continuous, 129 dB peak
Bi-ampLF: 124 dB continuous, 130 dB peak
HF: 125 dB continuous, 131 dB peak
8 Ω
Bi-amp8 Ω
8 Ω
Passive / Bi-amp switchable
Components1 x 12" (305 mm) constant directivityPowerDual
Enclosure
Connectors2x Neutrik speakON* NL4
1 x barrier strip terminals
Wiring
PassivePins 1+ / 1- Input, Pins 2+ / 2- Link
Bi-AmpPins 1+ / 1- LF, Pins 2+ / 2- HF
Dimensions H x W x D487 x 371 x 361 mm
(19.2 x 14.6 x 14.2")
20 kg (44.0 lbs)
Construction15 mm (5/8") enclosure / 18 mm (3/4") front,
plywood, vented and internally braced
Semi matt black paint (white optional)
GrillePowder coated perforated steel
Flying hardwareM10 x 8 flying inserts
(portrait or landscape mounting)
M10 x 8 yoke bracket inserts
2 x Intergrip carrying handles
Blanking plate for optional VTH pole mount
Compatible with industry standard brackets
M6 x 4 inserts
