gagan Woodstock Jr WAH drop-in kit for dunlop GCB-95 1990-2024

note. temp price drop for spring!

after many requests, Joe Gagan has released a kit version of the famous Woodstock series wahs.

This simplified version captures the JIMI tone and vocal response of the Woodstock "Controversy" and "Plus" models , but in the framework of the classic GCB95 package.

Featured are the Dave Weyer mods used in the wahs built for Jimi during the Woodstock era, giving a great vocal quack, deeper low end, lower noise, plus the famous 10k output mod that makes this circuit work better into fuzzes than the stock vox and crybaby circuit.

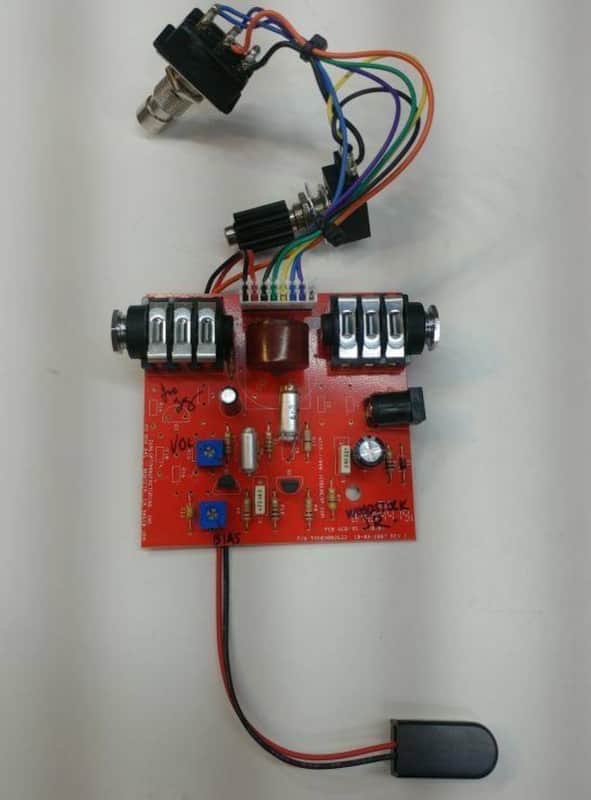

just bolt into any modern dunlop or dunlop vox wah shell, no soldering. NOTE: the installed version is shown for reference, there is no wah shell with this kit

features:

-Real 1970s TDK inductor from a newly uncovered stash in Michigan, very limited quantity. awesome sounding inductor!

-Foil & film capacitors like real vintage vox and crybaby for clear highs, good spectrum.

-TWO trimmers for even better control of grit, lows and volume. A. input volume trimmer for volume matching. Or, set it louder than bypass for Hot Wah!

B. bias trimmer, set this one FIRST, to get your low end and growl, or CCW for sweetening up, or anything in between.

-tru-bypass, including Gagan's preferred grounded input method for reduced chance of switch pop. this kit finally eliminates the gcb95's non-trubypass, still in use by Dunlop as of 2023.

-standard Dunlop CTS hotpotz for super long life, plus extended taper, similar to 60s vox ICAR pot.

-Special silicon transistors chosen to replicate the low noise transisors used by D weyer for Hendrix in 1970. Perfect gain range for beautiful watery, vocal wah tone.

BOTTOM LINE - GET the real JIMI TONE AT A VERY SWEET PRICE. NO SOLDERING

lease message us with any questions you have. fits all dunlop GCB type wahs with the board mounted jacks.

vox v847 owners! This kit will fit all USA 1992 through 2005 Vox wahs. contact us immediately at time of checkout, we will delete power jack. or, add our special power jack kit for $55 additional, charged separately here on reverb & includeds quality titanium step bit and drilling instructions.

note: DOES NOT fit 1982 through 1988 dunlop crybaby, message us for info if needed.
