dXeus machina | Yamaha DX7 Emulator Minidexed in eurorack format = TX816, TX802 or 8 DX7 FM Synthesizers

Eight stereo iterations of the YAMAHA DX7.

dXeus machina runs MiniDexed, a programmable FM synthesizer that faithfully replicates the sound of eight DX7 instances, similar to the legendary TX816 and TX802.

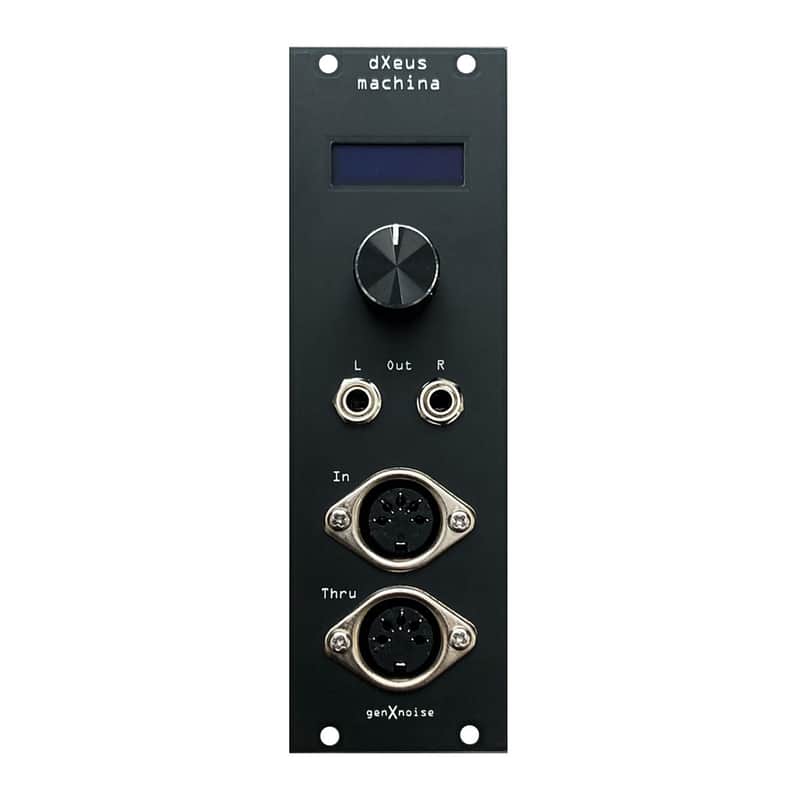

Crafted in a 3U 8HP eurorack format.

Compatible with any MIDI keyboard or sequencer featuring MIDI out.

Features:

• Eight line-level stereo instances of programmable DX7 tone generators mixed internally or by MIDI

• Sixteen stereo voices per instance

• Twenty-four bit audio resolution

• Forty ROMs preloaded, encompassing all the classic Yamaha & Grey Matter E!

• Compressor and reverb effects

• Each instance can be individually detuned & stereo-shifted, providing unparalleled sonic possibilities

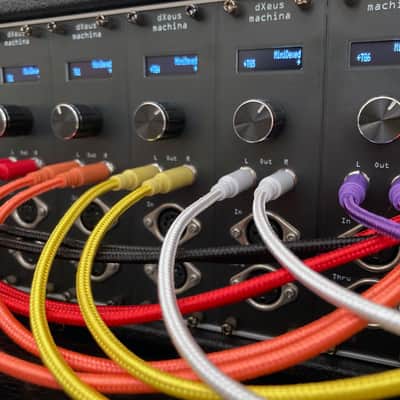

•Chain multiple modules internally or external MIDI gear using the Thru port.

•Configure multiple Dexed instances using performance.ini files

• Support for multiple voices via Program and Bank Change LSB/MSB MIDI messages

• Edit voice parameters via the user-friendly menu or MIDI control

• Load voices from .syx files via the included SD card

• 15GB+ of storage space for additional ROMs, patches & banks

• 37mm Depth

• +12V: 142mA, -12V:0mA, 5V:0mA

What's in the box:

• Plug and play dXeus machina eurorack module

• 10-16 pin X 25cm Eurorack ribbon power cable

• Four M3 Eurorack mounting screws

Hear it and see other modules at GenXnoise.com

MiniDexed has received recognition from HACKADAY & Adafruit.

For more about MiniDexed and full capabilities, please visit the Probonopd's MiniDexed Github page.
