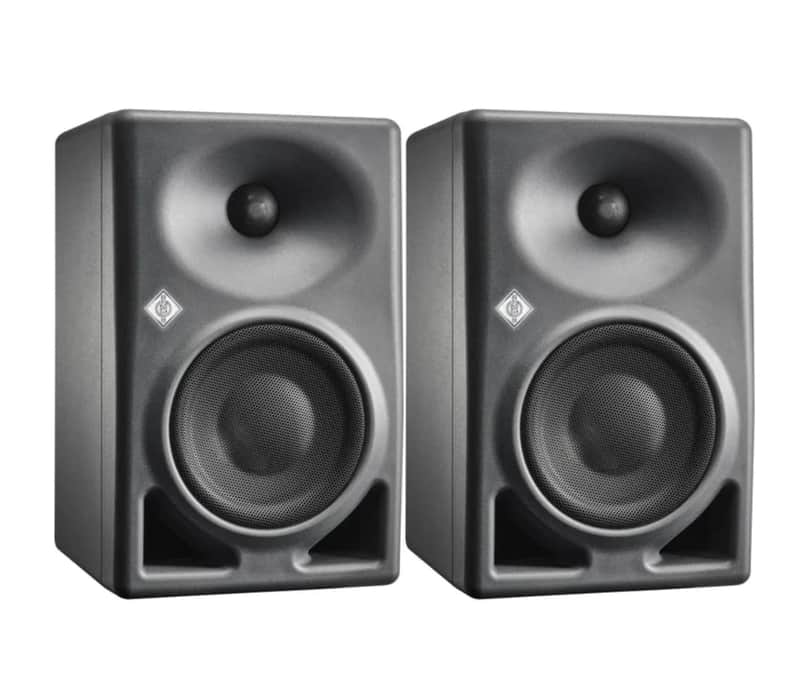

Neumann KH 120 II DSP Powered Studio Monitor (PAIR)

(2) 245W Active Studio Monitors with 5.25" Woofer, 1" Tweeter, Bass Reflex Cabinet, Onboard DSP, and EQ - Anthracite

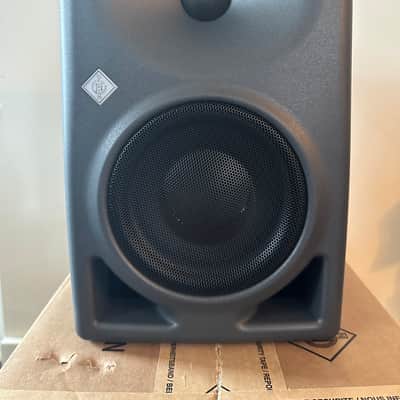

BRAND NEW, NEVER USED, ONLY OPENED FOR THE REVERB PICS

Neumann KH 120 II DSP Powered Studio Monitor Features:

• Small-format nearfield monitor with high SPL capability and deep bass extension to 44Hz
• DSP engine for improved performance and automatic room alignment
• Analog and S/PDIF connectivity (optional AES67)
• High-precision drivers, Mathematically Modeled Dispersion (MMD) waveguide
• Razor-sharp imaging due to extremely low tolerances (±0.5dB)
• May be combined with other KH series speakers in immersive or surround setups
• Linear frequency response: 44Hz–21kHz (±3dB)
• Linear phase response: 120Hz–16kHz (±45°) with latency <2.6 ms
• Free-field frequency response: 44Hz–21kHz (±3dB)
• Self-generated noise @ 10cm: <20dB(A) SPL (with input gain set to 100dB SPL for 0dBu)
• Max. SPL (half space, 3% THD at 1m): 116.8dB SPL (averaged between 100Hz and 6kHz)
• Acoustical Principle: bass reflex, front-baffle ports
• Analog input(s): XLR (analog, electronically balanced)
• Analog input impedance: 24k ohms
• Digital input(s): S/PDIF; RCA (75 Ω)
• Input gain control (sensitivity): 0dB–15dB
• Output level control: 94, 100, 108, and 114dB SPL (with 0dBu input level)
• EQ, Bass: 0, -2, -4, -6dB
• EQ, Low-Mid: 0, -2, -4, -6dB
• EQ, Treble: +1, 0, -1, -2dB
• Control: Local; Network
• Crossover frequency: 1.7kHz
• FIR phase correction: Linear phase (120Hz–16kHz; +/- 45°)
• Output power, woofer amplifier: 145W (THD+N with limiter deactivated: 10%)
• Output power, tweeter amplifier: 100W (THD+N with limiter deactivated: 10%)
• Woofer: 5.25-inch, with protective metal grille
• Tweeter: 1-inch, with protective metal grille
• Includes US mains cable, 4 self-adhesive feet

Tech Specs

• Powered: Yes
• Power Configuration: Bi-amped
• Quantity: Single
• LF Driver Size: 5.25" Woofer
• LF Driver Type: Magnetically shielded
• HF Driver Size: 1" Tweeter
• LF Driver Power Amp: 145W
• HF Driver Power Amp: 100W
• Total Power: 245W
• Frequency Response: 44Hz-21kHz (±3 dB)
• Crossover Frequency: 1.7kHz
• Maximum Peak SPL: 116.8 dB SPL

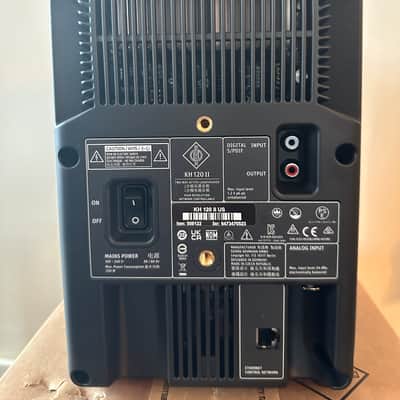

• Input Types: 1 x XLR, 1 x Coax (S/PDIF)
• Output Types: 1 x Coax (S/PDIF)
• Other I/O: 1 x RJ45 (Ethernet Control Network)
• Features: DIP switches, Tilt, Input Gain, Input Selector
• Software: Neumann MA 1 Monitor Alignment App
• Enclosure Type: Front Ported
• Height: 11.3"
• Width: 7.16"
• Depth: 8.94"
• Weight: 11.9 lbs.
• Manufacturer Part Number: 509122
