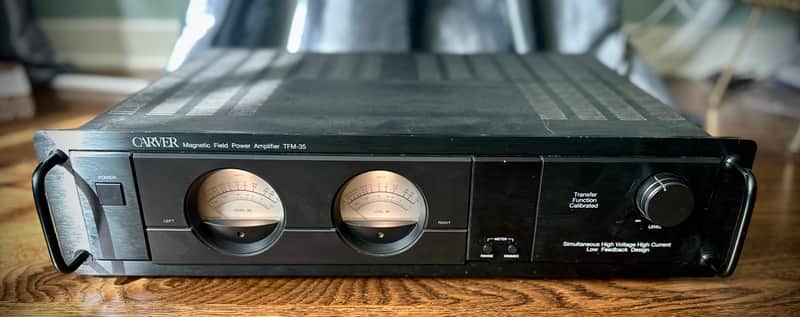

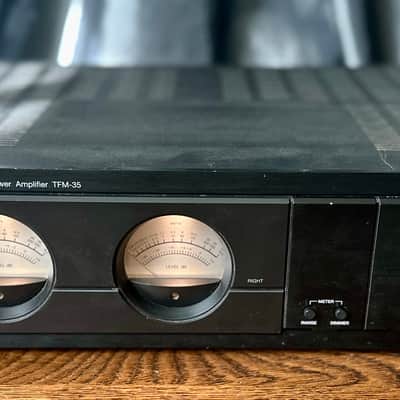

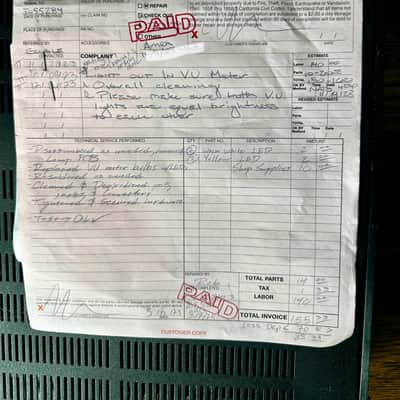

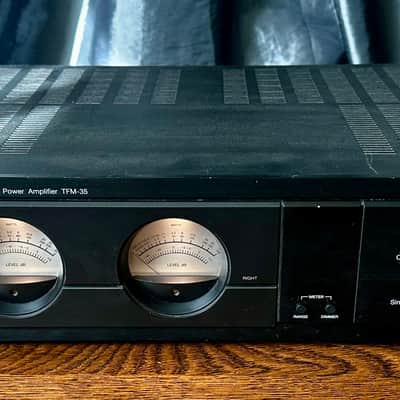

I’ve had this power amp since the early 1990’s when I bought it used at a high end home audio store. I used it for years to drive a pair of Cerwin Vega 15’s, and then to drive a pair of Yamaha NS10m’s in my home studio. i haven’t used it for several years, so I took it to Advanced Music Electronics in LA for a thorough diagnosis and cleaning. They replaced the bulb in the VU meters with LEDs (notice that they’re on in pic), cleaned and tested the entire unit (see receipt). Obviously it passed with flying colors. It deserves to be used in someone’s home studio or home stereo setup. i will pack it carefully and ship promptly.
From Wards Web…
FEATURES
Magnified Current technology for increasing voltage and current capability
Total Direct Coupling for high damping factor at all frequencies
Each channel protected by: individual fusing, excess temperature sense, DC fault sense, power-on delay, shorted load sense.
Minimal signal path design, with on card I/O connectors eliminating internal interconnect cables
Gold Plated RCA Jack Connections Dual analog lighted meters with range selection switch

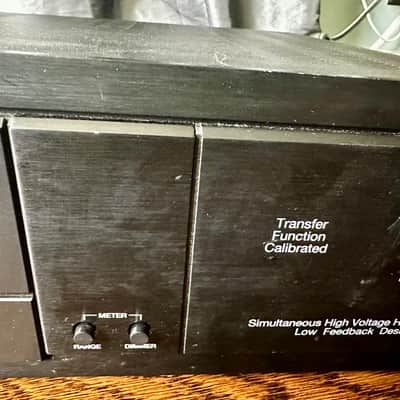

Meter light On/Off switch
Individual calibrated level trim controls for each channel
Removable handles for 17" cabinet space (with trim caps)
Designed by Carver Corporation in Lynnwood, WA USA
TFM-35 SPECIFICATIONS
Frequency Repsonse: 20-20kHz +0,-0.2dB
Power Output: FTC 20hz-20khz
8ohm 250 watts per channel
4ohm 400 watts per channel
2ohm 750 watts per channel
Bridged mono power output: 800 watts into 8 ohms
THD: less than 0.08%
Dynamic Headroom: >1.0dB @ 8ohms both channels driven
Gain: 29.0 dB (+/- 0.5dB)
Input Impedance 47 kohms
Damping Factor: >150 typical (20hz-20 khz)
