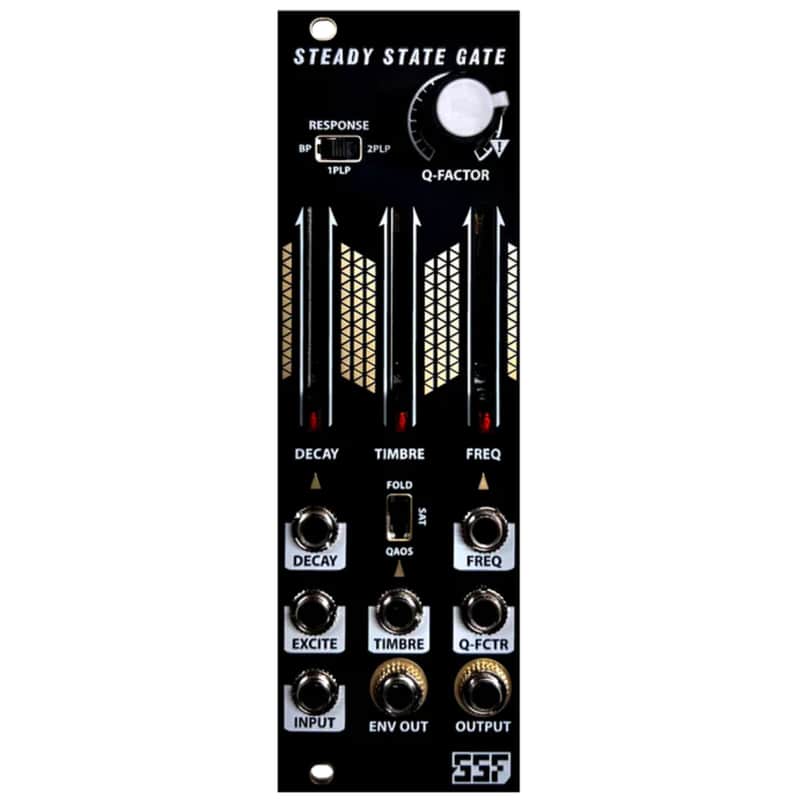

The Steady State Gate is a novel and discrete multi-mode Low Pass Gate including an additional stage of timbre modifying circuitries.

Features:

• 6db/Oct Bandpass, 6dB/Oct Lowpass and 12dB/Oct Lowpass Filter Modes
• Manual Frequency Cutoff Control and CV Input

• Manual Resonance (Q-FACTOR) Control and CV Input

• Three Timbre Modifying Circuits - Manual Control and CV Input.

1. 1. Wave Folder
   2. Soft Saturation Overdrive
   3. QAOS (Resonance Character Modifier)

• Manual and Voltage Controlled Decay Envelope tailored to Vactrol LPG response curve.
• Envelope output for self patching and controlling external modules

• EXCITE Input conditions gates and triggers and external envelopes to 'pluck' the Low Pass gate
• EXCITE is input level sensitive to control the dynamics and emphasis of plucking effects.
• Sensitive to Envelope attack up to about 50mS

• The Steady State Gate can also be used as a standalone VCF or as a stand alone VCA with high end roll off - typical of most traditional Low pass gates. With or without Timbre modifiers in play
