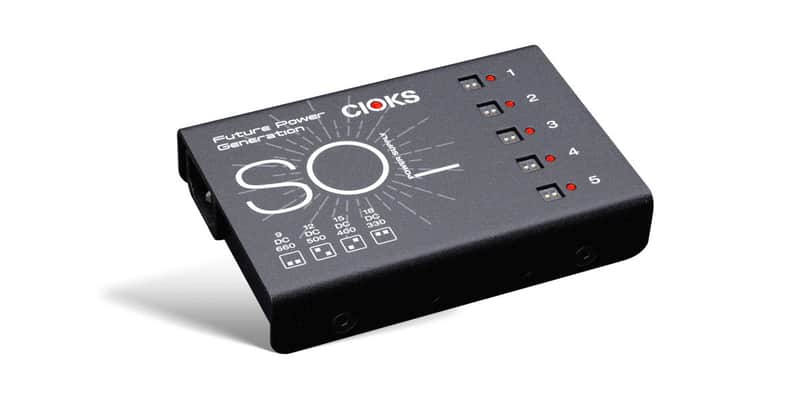

SOL is the ultimate solution for bringing life to a small to medium-sized pedalboard setup, especially if you are using power-hungry pedals. SOL is the smallest mains-powered switch-mode power supply we make at CIOKS (no wall-warts here) and the no-frills design plus massive power will leave you free to focus on your creative spark.

• CIOKS SOL has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7


• Ultra-low noise achieved by multistage filtering


• 5 isolated DC-outlets, 6W each


• 660mA at 9V on each outlet


• 4 selectable voltages on each outlet • Total maximum power 30W


• Mounting hardware for Pedaltrain and Templeaudio Boards included


• Compatible with CIOKS GRIP v2.0 for drill-free mounting underneath Pedaltrain boards*


• 9 Flex cables included


• Designed in Denmark, assembled in Poland


• 5-year worldwide warranty


• Mains input: 100-240V AC universal


• Outlet 1-5:


• 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each Total output power: max. 30W

What's in the box

• 3 x 1030 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)


• 2 x 1050 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 50cm (black)


• 1 x 2050 - Type 2 - 5,5/2,1mm DC plug, centre positive, L-shape, 50cm (red)


• 1 x 4050 - Type 4 - 5,5/2,5mm DC plug, centre positive, L-shape, 50cm (green)


• 1 x 1035 - Split Flex type 1 - 30 & 50cm (black)


• 1 x 1533 - 3-way daisy chain Flex type 1, 30+30+50cm (black)1 x


• SOL power supply


• 1 x AC power cord (region specific)


• 9 x Flex cables


• Mounting hardware for Pedaltrain and Templeaudio boards


• Product manual


• 1 x Flex Guide


• 1 x CIOKS sticker sheet
