HH Electronics Line Array Top 2X5" + HF Drive TNA-2051

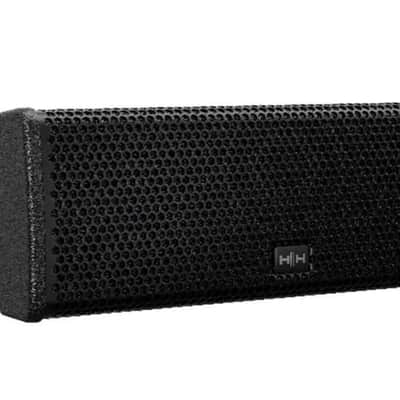

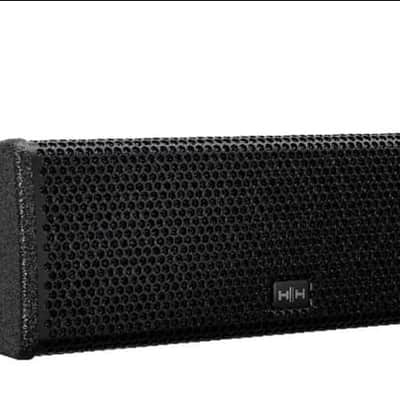

The TNA-2051 passive line array speaker system from HH Electronics features dual HH-designed 5″ LF drivers and a 1.33″ Celestion HF compression driver. The outer enclosure features integrated rigging hardware, enabling the TNA-2051 to be installed easily by a single engineer. With flexible configurations, the TNA-2051 can be used as a traditional line array system for long throw applications or as a standalone full-range point source system. The TNA-2051 offers high-SPL performance, making it an ideal option for venues, halls, hotels, portable live sound reinforcement and more. Specs include a 123 dB max SPL and 65 Hz 20k Hz (-10 dB) response and 120° x 8° dispersion. The 6.2″ x 18.1″ x 10.4″ cabinets weigh 18.5 pounds each.

The companion TNA-1200s passive line array subwoofer features a high power 12-inch woofer with exceptional high output. Equipped with integrated rigging hardware, the TNA-1200s can be installed quickly and easily. The TNA-1200s delivers a max SPL of 125 dB with a wide frequency range of 35 Hz > 2k Hz. When combined with the TNA-2051, the TNA system provides a high-specification flown installation system or ground stacked point source solution.

• Frequency Response (-10) : 65Hz - 20kHz
• Frequency Response (-3) :100Hz - 18KHz
• Power : 200W AES, 800W Peak
• Sensitivity (1W/1M) : 94dB
• Max SPL (1M) (Peak) :123dB
• Nominal System Impedance : 16 Ohms
• Input Connector : NL4 ±1 Twist Lock Connector
• Link Connector : NL4 ±1 Twist Lock Connector

Specification :

• HF Driver : 1 x 1.33 Inch Celestion Compression Driver, mounted to Celestion Designed wave guide and horn
• LF Driver : 2 x 5 Inch HH designed driver
• Crossover Frequency : 2000HZ
• Nominal Dispersion : 120° x 60° (120° x 30° single point)
• Splay Angle Settings : Dual Angle, 0° and 8°
• Recommended HPF Frequency : 100Hz
• Cabinet : 15mm Plywood
• Finish : Painted Black (White finish optional, subject to MOQ)
• Mounting Bracket : TNA-BRK1 for suspended mounting
• Mounting Points : M8 fixings for optional TNA-BRK1 flying bracket assembly (available separately)
• Grille : 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
• Unit Dimensions (Hwd) : 158 x 460 x 265mm / 6.2" x 18.1" x 10.4".
