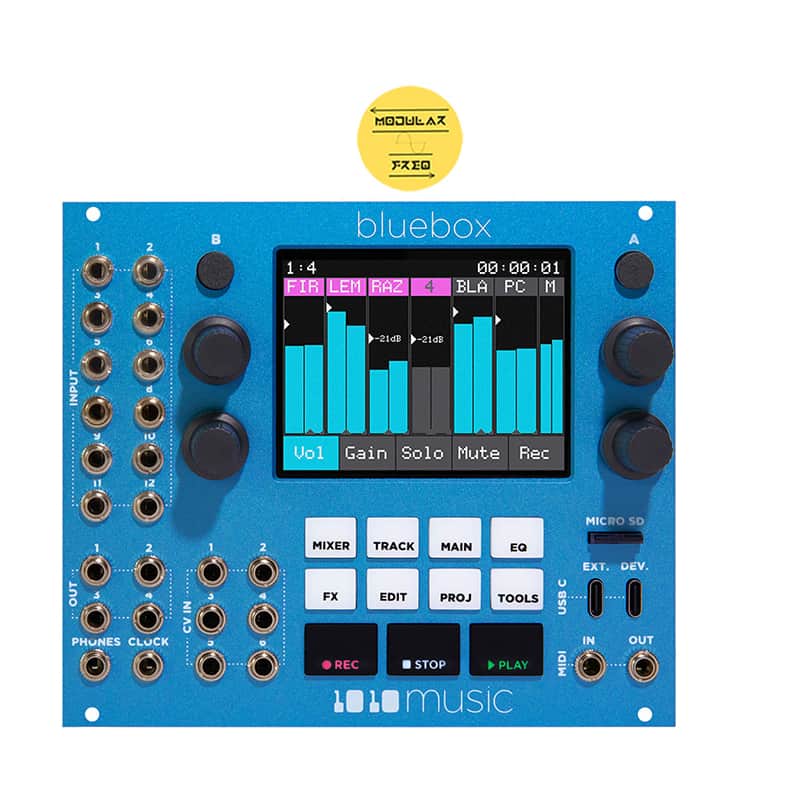

1010 Music Bluebox Digital Mixer Eurorack
Our users rate Reverb
The bluebox Eurorack edition is the new Eurorack mixer with effects and multichannel recording/playback based on the award-winning bluebox desktop mixer. With the Eurorack edition’s USB-C EXT port, you can send 2 channels of audio to and from your computer. Plus, you can control up to 6 mix settings with the 6 CV inputs. Whether recording your Eurorack jams, using it to play stems as backing tracks, or a combination of both – bluebox Eurorack edition will rock your rack!
Technical Specs
Dimensions & Power
- 30 HP
- Module dimensions including knobs: 6″ x 5″x 1.6″
- Depth behind front panel with ribbon cable: 1.0″
- Requires the +5V rail which may not be present
on some older racks. - Uses 500-850mA at +5V (depending
on screen brightness), 320 mA at +12V, and 82mA at -12V - Requires two power connections
Capabilities
- 12 mono tracks, 6 stereo tracks or something in between
- Connect to TRS or USB C MIDI for beat syncing effects
- Lots of headroom with support for Eurorack levels up to +/-5V inputs and outputs
- 3 effects: reverb, delay and compressor
- Records and plays back 48k, 24-bit audio WAV files
- 4 band EQ per track
- Durable aluminum faceplate
- Stream 2 channels of audio in and out over USB C
