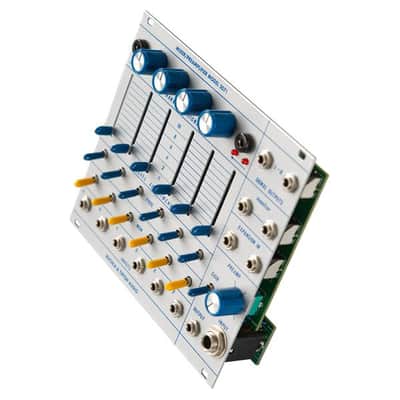

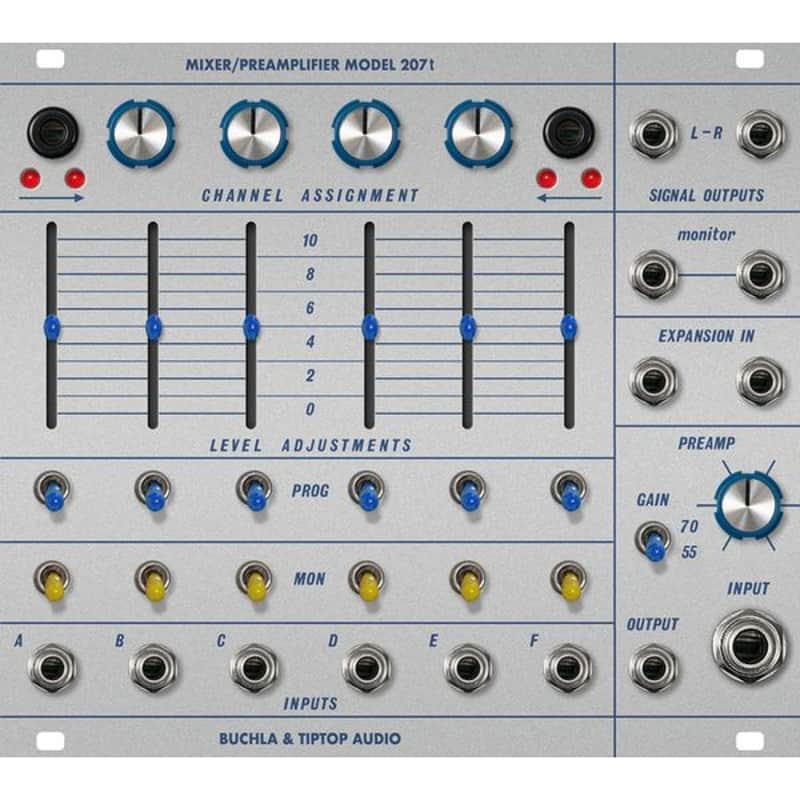

Tiptop Audio Model 207t

Tiptop Audio Model 207t Mixer / Preamp - Mixer

• 6-Channel mixer / preamplifier
• Panorama via CV for channels 1 and 6
• Panorama control for channels 2 - 5
• Level fader and mute switch per channel as well as switch for switching to main or monitor output
• 6 x Mixer signal input (A to F)
• Input for external signals (6.3 mm jack) with preamplifier and gain control as well as gain switch (range: 55 db and 70 db)
• Stereo expansion input
• Stereo output
• 2 x Mono monitor output
• Current consumption: 90 mA (+12 V) / 85 mA (-12 V)
• Width: 28 U
• Depth: 28 mm
