StewMac Fat Pole Pickups for Jazz Bass
Get more low end response and deeper midrange from your favorite bass.
The Alnico 5 magnets produce a clear tone with more pronounced highs and a tighter low end, perfect for bass frequencies. And they're a drop-in replacement for countless basses, no need to rout!
Use them as a set! When using the neck and bridge as a set, the reverse-wound, reverse-polarity coils are hum-cancelling when both pickups are at full volume.
Neck position specs
Medium output single-coil pickup
Polepiece spread: 2.187" (55.5mm)
Poly-coated 42 AWG coil wire
Potted to suppress noise
Reverse wound for noise canceling
Alnico 5 magnets, south polarity
Push-back cloth-insulated lead wires

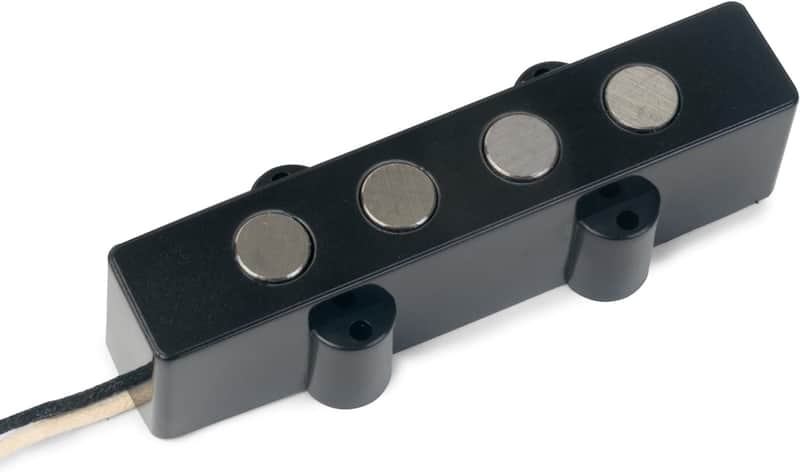

Bridge position specs
Medium output single-coil pickup
Polepiece spread: 2.312" (58.7mm)
Poly-coated 42 AWG coil wire
Potted to suppress noise
Alnico 5 magnets, north polarity
Copper-plated steel baseplate
Push-back cloth-insulated lead wires
Output
Neck position: 5K ohm range
Bridge position: 5.13K ohm range
Neck position dimensions
Length: 3.562" (90.4mm)
Width: 0.70" (18mm) not including mounting tabs
Mounting screw spacing: 0.938" (23.8mm)
Height: 0.750" (19mm)
Bridge position dimensions
Length: 3.687" (93.6mm)
Width: 0.70" (18mm) not including mounting tabs
Mounting screw spacing: 0.938" (23.8mm)
Height: 0.750" (19mm)
Compressible foam pad for height adjustment, mounting screws, and wiring diagrams are included.
Note: Jazz Bass pickup dimensions have varied slightly over the years. Please measure your pickup cavities before replacing older pickups.
