Bittree B48T 2WNHD/S 2x24 Port Patchbay Panel Unit 2U Rackmount
This seller has not set a shipping cost for Belgium. Please contact them to ask about shipping.
Our users rate Reverb
- Pulled from a Hollywood studio
- Excellent condition
- Professionally packaged for safe free shipping with UPS ground

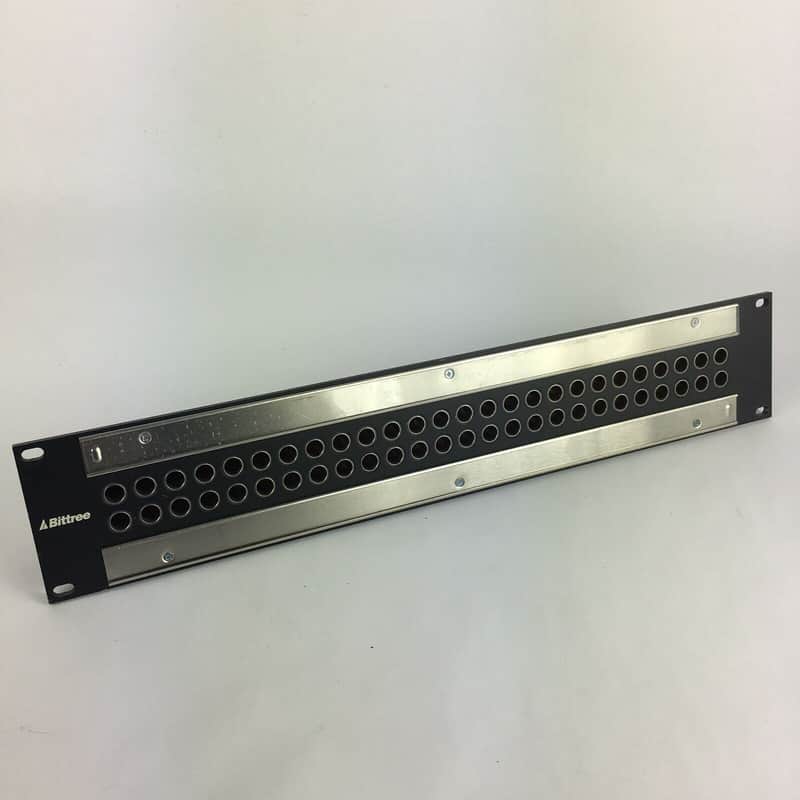

Bittree® Standard WECO Video Patchbay in 2 RU Height with 2x24 Jack Configuration
Standard WECO Video Jack Properties:
• High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
• SMPTE 259M, 292M and 424M compliant
• True 75 ohm impedance with low return loss
Panel Features:
• 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish

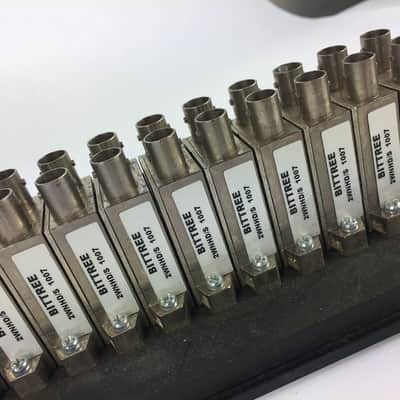

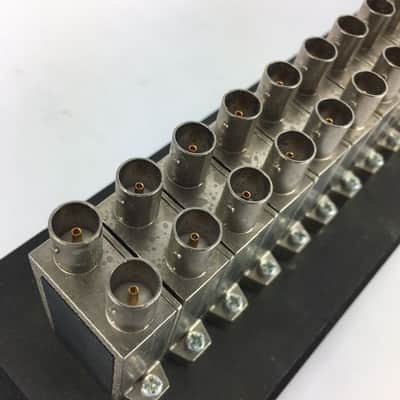

• Rear-mounted jack modules
• Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
• 2 x DS870-10 Designation Strips:- Stainless-steel slider with white styrene and non-glare Lexan inserts• BNC Rear Interface
Options:
• Standard WECO video jacks may be ordered in four different configurations:
Dual body, self-normalling, non-terminating (2WNHD)
• Front Panel Color – Black scratch resistant powder-coat finish
Compliance:
• RoHS Compliance – See our RoHS compliance statement to learn more
| Listed | 2 years ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
| Brand | |
| Model |
|
Product safety information may be available here.
