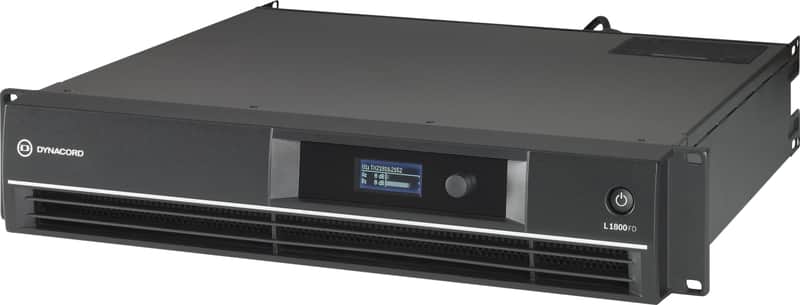

L1800FDDSP 2 x 950 w power amplifier for live performance applications

• Professional DSP amplifier for live and mobile application
• Fully integrated professional speaker processing with FIR drive technology
• Market-leading acoustic performance and rock solid reliability
• Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0

Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.

Load Impedance2 Ω2.6 Ω4 Ω8 ΩMaximum Output Power, Single Channel1600 W1300 W950 W480 WMaximum Output Power, Dual Channel1400 W1200 W850 W450 WMaximum Output Power, Bridged——2800 W1700 W

Maximum RMS Voltage Swing THD = 1%, 1 kHz65.1 VVoltage Gain Ref.1 kHz32.0 dBTHD at 600 W/4 Ω MBW = 80 kHz, 1 kHz< 0.05%IMD-SMPTE, 60 Hz, 7 kHz< 0.1%DIM30, 3.15 kHz, 15 kHz< 0.05%Maximum Input Level+21 dBuCrosstalk ref. 1 kHz, at 100 W/4 Ω< -80 dBFrequency Response, ref. 1 kHz10 Hz to 21 kHz (±1 dB)Input Impedance, Active Balanced20 k ΩSignal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power @ 8 Ω>105 dBOutput Noise, A-weighted< -68 dBuOutput Stage TopologyClass ABPower Requirements240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)Power Consumption 1/8 Maximum Output Power @ 4 Ω700 WMains Fuse240 V/230 V: T12AH; 120 V/100 V: T25AHProtectionAudio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delayCoolingFront-to-rear, 3-stage-fansAmbient Temperature Limits+5°C to +40°C (40°F to +105°F)Safety ClassIColorBlackDimensions (W x H x D), mm483 x 88 x 462.4Weight15.2 kg (33.5 lb)Signal ProcessingFIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedanceRemote ControlSONICUE sound system software **AccessoriesRMK15 (rear rack mount kit)
