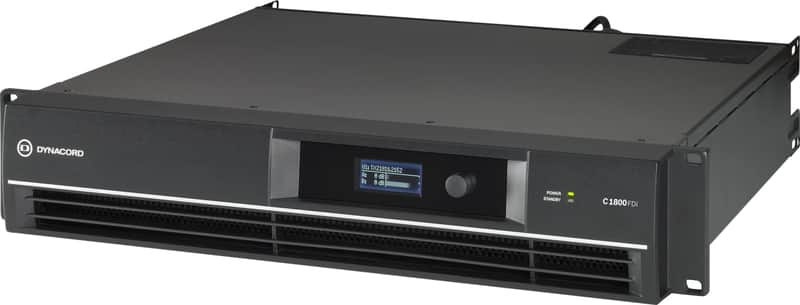

C1800FDiDSP 2 x 950 w power amplifier for fixed install applications

• Professional DSP amplifier for live and mobile application
• Fully integrated professional speaker processing with FIR drive technology
• Market-leading acoustic performance and rock solid reliability
• Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0

Dynacord C Series amplifiers are dedicated installation DSP amplifiers optimized for 24/7 operation. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. C Series amplifier utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of fixed install applications. For low cost of ownership a power saving standby mode is available. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.

SPECIFICATIONS

Load Impedance2 Ω2.6 Ω4 Ω8 ΩMaximum Output Power, Single Channel1600 W1300 W950 W480 WMaximum Output Power, Dual Channel1400 W1200 W850 W450 WMaximum Output Power, Bridged--2800 W1700 W

Maximum RMS Voltage Swing THD = 1%, 1 kHz65.1 VVoltage Gain Ref.1 kHz32.0 dBTHD at 600 W/4 ΩMBW = 80 kHz, 1kHz< 0.05%IMD-SMPTE, 60 Hz, 7 kHz< 0.1%DIM30, 3.15 kHz, 15 kHz< 0.05%Maximum Input Level+21 dBuCrosstalk ref. 1 kHz, at 100W/4 Ω< -80 dBFrequency Response, ref. 1 kHzFrequency Response, ref. 1 kHzFrequency Response, ref. 1 kHz20 k ΩSignal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 Ω>105 dBOutput Noise, A-weighted< -68 dBuOutput Stage TopologyClass ABPower Requirements240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)Power Consumption ⅛ Maximum Output Power @ 4 Ω700 WMains Fuse240 V/230 V: T12AH; 120 V/100 V: T25AHProtectionAudio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, In rush current limiters, Turn on delayCoolingFront-to-rear, 3-stage-fansAmbient Temperature Limits+5°C to +40°C (40°F to +105°F)Safety ClassIColorBlackDimensions (W x H x D), mm483 x 88 x 462.4Weight15.2 kg (33.5 lb)Remote Power ON/GPIOPower remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selectionSignal ProcessingFIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedanceRemote ControlSONICUE sound system software **AccessoriesRMK15 (rear rack mount kit)

Test signal for max. output power according IHF-A-202 (Dynamic-Headroom, burst 1 kHz/20 ms on/480 ms off/low level -20 dBu).

Direct drive load capability.
The direct drive load capability is a measure for the total wattage that can be driven in 70 V/100 V operation mode. A load capability value of 1250 watts means that this amplifier can drive e.g. 50 loudspeakers at a voltage tab of 25 watts. The dB value in parentheses indicates the delta to maximum modulation. In cases where the maximum modulation is not required you can use the smaller amplifier model.
